摘要:

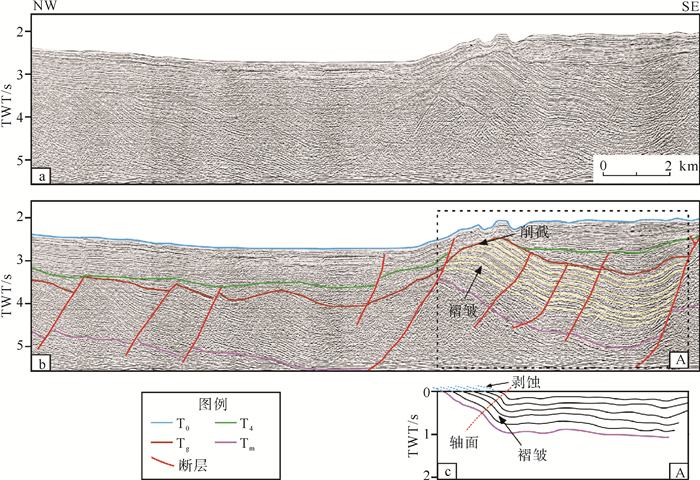

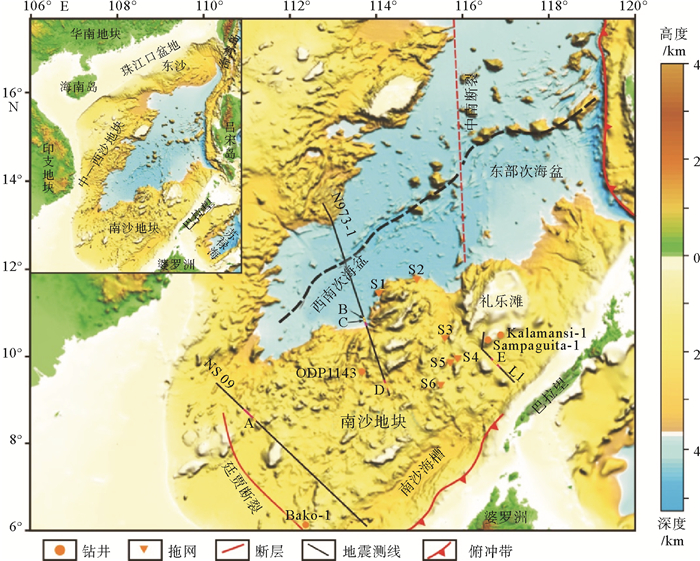

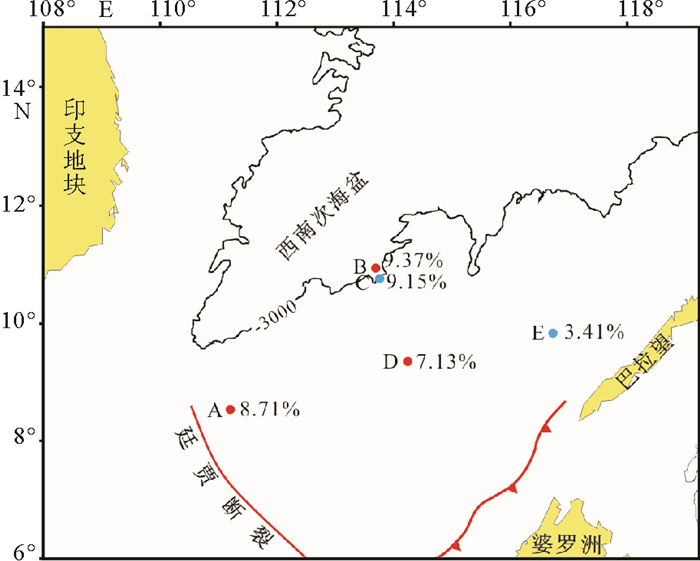

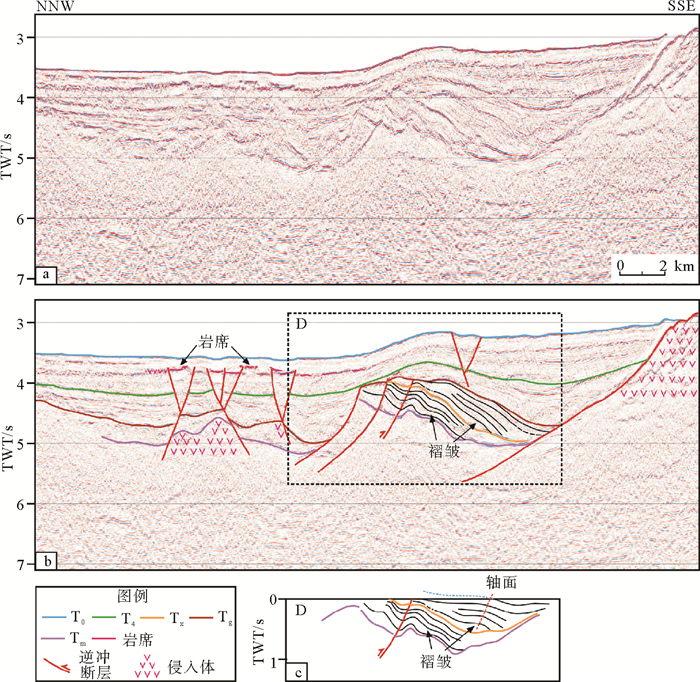

为研究南海南部南沙海域中生界挤压构造变形特征及其成因，对研究区内多道地震剖面资料进行了解释，结果表明研究区内中生代地层曾遭受过不同程度的挤压变形，并在中生代末期遭受过强烈的剥蚀作用。为了进一步研究中生代地层的挤压构造特征，通过平衡剖面计算的方法去除了研究区新生代构造的影响并对中生代地层构造挤压率进行了计算。结果表明研究区的中生代地层曾遭受过两组相反方向应力的挤压，两组不同应力方向的挤压变形均表现为北强南弱和西强东弱的特征。这种挤压应力方向和强度的变化可能与古南海的扩张以及南沙地块不同部位向北漂移的速率有关。
Abstract:The Mesozoic of the Nansha block of the southern South China Sea has suffered various degrees of compression in addition to a strong denudation by the end of Mesozoic. Multi-channel seismic data are interpreted to reveal the characteristics and genesis of the Mesozoic tectonic deformation. Tectonic restoration was conducted to remove the Cenozoic deformation and at the same time the Mesozoic tectonic compression ratios were calculated. Through them we found that there were two compressive stresses coming from opposite directions, one from S(S)E and another from N(N)W. The strength of the stresses decreased from the west to the east and from the north to the south. The variations in compression ratios may be related to the opening of the proto-South China Sea and the change in drifting rate of the Nansha block northward.
-
Key words:
- Mesozoic /
- tectonic deformation /
- tectonic compression ratio /
- proto-South China Sea /
- Nansha waters
-
-
[1] Taylor B, Hayes D E. The tectonic evolution of the South China Sea basin[M]//Hayes D E. The Tectonic and Geologic Evolution of Southeast Asian Seas and Islands, Geophysical Monograph. Washington, DC: American Geophysical Union, 1980: 89-104.
[2] Taylor B, Hayes D E. Origin and history of the South China sea basin[C]//Hayes D E. The Tectonic and Geologic Evolution of Southeast Asian Seas and Islands, Geophysical Monograph. Washington, DC: American Geophysical Union, 1983: 23-56.
https: //www.researchgate.net/publication/258928283_Origin_and_History_of_the_South_China_Sea_Basin [3] Holloway N H. North Palawan block, Philippines-its relation to Asian mainland and role in evolution of South China Sea[J]. AAPG Bulletin, 1982, 66(9): 1355-1383.
[4] 姚伯初.南海新生代的构造演化与沉积盆地[J].南海地质研究, 1998(10): 1-17. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=QK199800429650
YAO Bochu. The tectonic evolution and sedimentary basins of South China Sea in Cenozoic[J]. Geological Research of South China Sea, 1998(10): 1-17. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=QK199800429650
[5] 刘海龄, 阎贫, 张伯友, 等.南海前新生代基底与东特提斯构造域[J].海洋地质与第四纪地质, 2004, 24(1): 15-28. http://d.old.wanfangdata.com.cn/Periodical/hydzydsjdz200401003
LIU Hailing, YAN Pin, ZHANG Boyou, et al. Pre-Cenozoic basements of the South China Sea and eastern Tethyan realm[J]. Marine Geology & Quaternary Geology, 2004, 24(1): 15-28. http://d.old.wanfangdata.com.cn/Periodical/hydzydsjdz200401003
[6] 金庆焕, 李唐根.南沙海域区域地质构造[J].海洋地质与第四纪地质, 2000, 20(1): 1-8. http://d.old.wanfangdata.com.cn/Periodical/hydzydsjdz200001001
JIN Qinghuan, LI Tanggen. Regional geologic tectonics of the Nansha Sea area[J]. Marine Geology & Quaternary Geology, 2000, 20(1): 1-8. http://d.old.wanfangdata.com.cn/Periodical/hydzydsjdz200001001
[7] 姚永坚, 姜玉坤, 曾祥辉.南沙海域新生代构造运动特征[J].中国海上油气(地质), 2002, 16(2): 113-117, 124. http://d.old.wanfangdata.com.cn/Periodical/zghsyq-dz200202008
YAO Yongjian, JIANG Yukun, ZENG Xianghui. Cenozoic tectonic movements in Nansha area, South China Sea[J]. China Offshore Oil and Gas (Geology), 2002, 16(2): 113-117, 124. http://d.old.wanfangdata.com.cn/Periodical/zghsyq-dz200202008
[8] Yao Y J, Liu H L, Yang C P, et al. Characteristics and evolution of Cenozoic sediments in the Liyue Basin, SE South China Sea[J]. Journal of Asian Earth Sciences, 2012, 60: 114-129. doi: 10.1016/j.jseaes.2012.08.003
[9] Yan P, Liu H L. Tectonic-Stratigraphic Division and Blind Fold Structures in Nansha Waters, South China Sea[J]. Journal of Asian Earth Sciences, 2004, 24(3): 337-348. doi: 10.1016/j.jseaes.2003.12.005
[10] 孙龙涛, 孙珍, 周蒂, 等.南沙海区礼乐盆地沉积地层与构造特征分析[J].大地构造与成矿学, 2008, 32(2): 151-158. doi: 10.3969/j.issn.1001-1552.2008.02.003
SUN Longtao, SUN Zhen, ZHOU Di, et al. Stratigraphic and structural characteristics of Lile Basin in Nansha Area[J]. Geotectonica et Metallogenia, 2008, 32(2): 151-158. doi: 10.3969/j.issn.1001-1552.2008.02.003
[11] 吴朝华, 赵美松, 刘海龄.南沙中部海域沉积地层特征及其构造成因[J].地球科学—中国地质大学学报, 2011, 36(5): 853-860. http://d.old.wanfangdata.com.cn/Periodical/dqkx201105010
WU Chaohua, ZHAO Meisong, LIU Hailing. Characteristics of sedimentary strata in Central Nansha Sea area and its tectonic origin[J]. Earth Science-Journal of China University of Geosciences, 2011, 36(5): 853-860. http://d.old.wanfangdata.com.cn/Periodical/dqkx201105010
[12] Wang Y L, Qiu Y, Yan P, et al. Seismic evidence for Mesozoic strata in the northern Nansha waters, South China Sea[J]. Tectonophysics, 2016, 677-678: 190-198. doi: 10.1016/j.tecto.2016.04.003
[13] Zhou D, Yao B C. Tectonics and sedimentary basins of the South China Sea: Challenges and progresses[J]. Journal of Earth Science, 2009, 20(1): 1-12. doi: 10.1007/s12583-009-0001-8
[14] 周蒂, 陈汉宗, 孙珍, 等.南海中生代三期海盆及其与特提斯和古太平洋的关系[J].热带海洋学报, 2005, 24(2): 16-25. doi: 10.3969/j.issn.1009-5470.2005.02.003
ZHOU Di, CHEN Hanzhong, SUN Zhen, et al. Three Mesozoic sea basins in eastern and southern South China sea and their relation to Tethys and Paleo-Pacific domains[J]. Journal of Tropical Oceanography, 2005, 24(2): 16-25. doi: 10.3969/j.issn.1009-5470.2005.02.003
[15] Yan P, Deng H, Liu H L, et al. The temporal and spatial distribution of volcanism in the South China Sea region[J]. Journal of Asian Earth Sciences, 2006, 27(5): 647-659. doi: 10.1016/j.jseaes.2005.06.005
[16] Schülter H U, Hinz K, Block M. Tectono-stratigraphic terranes and detachment faulting of the South China Sea and Sulu sea[J]. Marine Geology, 1996, 130(1-2): 39-51. doi: 10.1016/0025-3227(95)00137-9
[17] Kudrass H R, Wiedicke M, Cepeck P, et al. Mesozoic and cainozoic rocks dredged from the South China Sea (Reed Bank area) and Sulu Sea and Their Significance for Plate-Tectonic reconstructions[J]. Marine and Petroleum Geology, 1986, 3(1): 19-30. doi: 10.1016/0264-8172(86)90053-X
[18] 鄢全树, 石学法, 王昆山, 等.南沙微地块花岗质岩石LA-ICP-MS锆石U-Pb定年及其地质意义[J].地质学报, 2008, 82(8): 1057-1067. doi: 10.3321/j.issn:0001-5717.2008.08.006
YAN Quanshu, SHI Xuefa, WANG Kunshan, et al. LA-ICPMS zircon U-Pb dating of granitic rocks from the Nansha micro-block, South China Sea and its geological significance[J]. Acta Geologica Sinica, 2008, 82(8): 1057-1067. doi: 10.3321/j.issn:0001-5717.2008.08.006
[19] Ding W W, Franke D, Li J B, et al. Seismic stratigraphy and tectonic structure from a composite multi-channel seismic profile across the entire Dangerous Grounds, South China Sea[J]. Tectonophysics, 2013, 582: 162-176. doi: 10.1016/j.tecto.2012.09.026
[20] Franke D. Rifting, lithosphere breakup and volcanism: comparison of magma-poor and volcanic rifted margins[J]. Marine and Petroleum Geology, 2013, 43: 63-87. doi: 10.1016/j.marpetgeo.2012.11.003
[21] Franke D, Savva D, Pubellier M, et al. The final rifting evolution in the South China Sea[J]. Marine and Petroleum Geology, 2014, 58: 704-720. doi: 10.1016/j.marpetgeo.2013.11.020
[22] 朱荣伟, 刘海龄, 姚永坚, 等.南海中-西沙地块前新生代构造变形特征[J].海洋地质与第四纪地质, 2017, 37(2): 67-74. http://www.cnki.com.cn/Article/CJFDTotal-HYDZ201702007.htm
ZHU Rongwei, LIU Hailing, YAO Yongjian, et al. A preliminary analysis on pre-cenozoic tectonic deformation of Zhongsha-Xisha block in South China Sea[J]. Marine Geology and Quaternary Geology, 2017, 37(2): 67-74. http://www.cnki.com.cn/Article/CJFDTotal-HYDZ201702007.htm
[23] Bulnes M, McClay K. Benefits and limitations of different 2D algorithms used in cross-section restoration of inverted extensional faults: application to physical experiments[J]. Tectonophysics, 1999, 312(2-4): 175-189. doi: 10.1016/S0040-1951(99)00161-4
[24] Hesse S, Back S, Franke D. The deep-water fold-and-thrust belt offshore NW Borneo: Gravity-driven versus basement-driven shortening[J]. Geological Society of America Bulletin, 2009, 121(5-6): 939-953. doi: 10.1130/B26411.1
[25] Jahn B M, Chen P Y, Yen T P. Rb-Sr ages of granitic rocks in Southeastern China and their tectonic significance[J]. Geological Society of America Bulletin, 1976, 87(5): 763-776. doi: 10.1130/0016-7606(1976)87<763:RAOGRI>2.0.CO;2
[26] Yan Q S, Shi X F, Liu J H, et al. Petrology and geochemistry of Mesozoic granitic rocks from the Nansha micro-block, the South China Sea: Constraints on the basement nature[J]. Journal of Asian Earth Sciences, 2010, 37(2): 130-139. doi: 10.1016/j.jseaes.2009.08.001
[27] 刘海龄, 郭令智, 孙岩, 等.南沙地块断裂构造系统与岩石圈动力学研究[M].北京:科学出版社, 2002: 64-68.
LIU Hailing, GUO Linzhi, SUN Yan, et al. Study on Fault System in Nansha Block (South China Sea) and the Block's Lithospheric Dynamics[M]. Beijing: Science Press, 2002: 64-68.
-
