用树脂吸附从铜电解液中去除锑铋实验

夏栋; 蒋晓云; 刘雅倩; 杨兴海

doi:10.3969/j.issn.1000-6532.2023.01.030

用树脂吸附从铜电解液中去除锑铋实验

长沙华时捷环保科技发展股份有限公司，湖南　长沙　410000

详细信息

作者简介: 夏栋（1988-），男，工程师，从事湿法冶金、废水处理及资源回收

通讯作者: 蒋晓云（1978-），女，博士，正高级工程师，从事污染防治与资源综合利用

中图分类号: TD98

收稿日期: 2021-01-18

刊出日期: 2023-02-25

Removal of Antimony and Bismuth in Copper Electrolyte by Resin Adsorption

Changsha Hasky Environmental Protection Science and Technology Development Co., Ltd., Changsha, Hunan, China

More Information

Corresponding author: Jiang Xiaoyun, 18973113478@163.com

Received Date: 18 January 2021

Publish Date: 25 February 2023

摘要

摘要:
研究采用树脂吸附法从铜电解液中去除锑、铋杂质，考查树脂对锑、铋的吸附能力，溶液流速和温度对锑、铋吸附的影响，以及洗脱剂类型、温度和添加剂等因素对锑、铋洗脱的影响。结果表明：树脂对锑、铋的吸附能力相同；降低溶液流速和提高温度均可提升锑、铋的吸附率；动态吸附实验中，树脂对铜电解液中的Sb、Bi、Pb和Fe有吸附效果，平均吸附率分别为94.4%、97.3%、75.9%和28.3%；锑的洗脱效果主要受酸度和Cl^-浓度影响，铋的洗脱效果主要受Cl^-浓度影响；一定温度下，在高浓度盐酸溶液中加入少量硫脲有利于Sb（V）的洗脱。
- 铜电解液 /
- Sb /
- Bi /
- 吸附 /
- 净化
Abstract:
Resin Adsorption was adopted for removal of Sb and Bi in copper electrolyte. A series of investigations were done respectively on: adsorption capacity of resin for Sb and Bi, affects of solution flow rate and temperature for the adsorption of Sb and Bi, affects of eluent types, temperature and additives for the elution efficiency of Sb and Bi. The experimental results showed that, the resin has the same adsorption capacity for Sb and Bi, the adsorption could be improved by the solution flow rate reducing and the temperature increasing. In the dynamic adsorption test, the resin has adsorption effect on Sb, Bi, Pb and Fe in copper electrolyte, and the average adsorption rates are 94.4%, 97.3%, 75.9% and 28.3%, respectively. The elution of Sb was mainly influenced by the concentrations of H⁺ and Cl^-. The elution of Bi was mainly influenced by the concentrations of Cl^-. It was beneficial for the elution of Sb (V) by adding thiourea in high concentration HCl solution at a certain temperature.
- Copper electrolyte /
- Sb /
- Bi /
- Adsorption /
- Purification

HTML全文

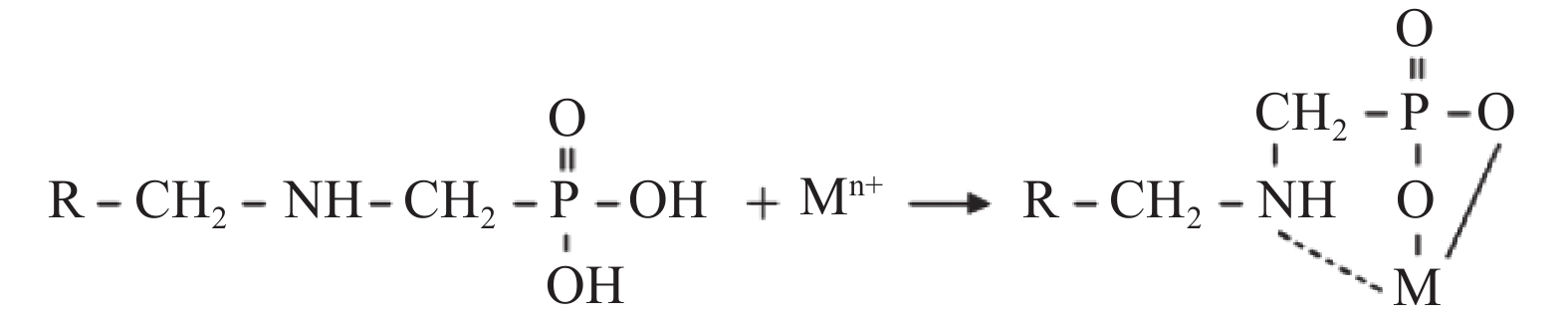

图 1 树脂吸附结构

Figure 1.

下载: 全尺寸图片幻灯片

图 2 长时间动态吸附曲线

Figure 2.

下载: 全尺寸图片幻灯片

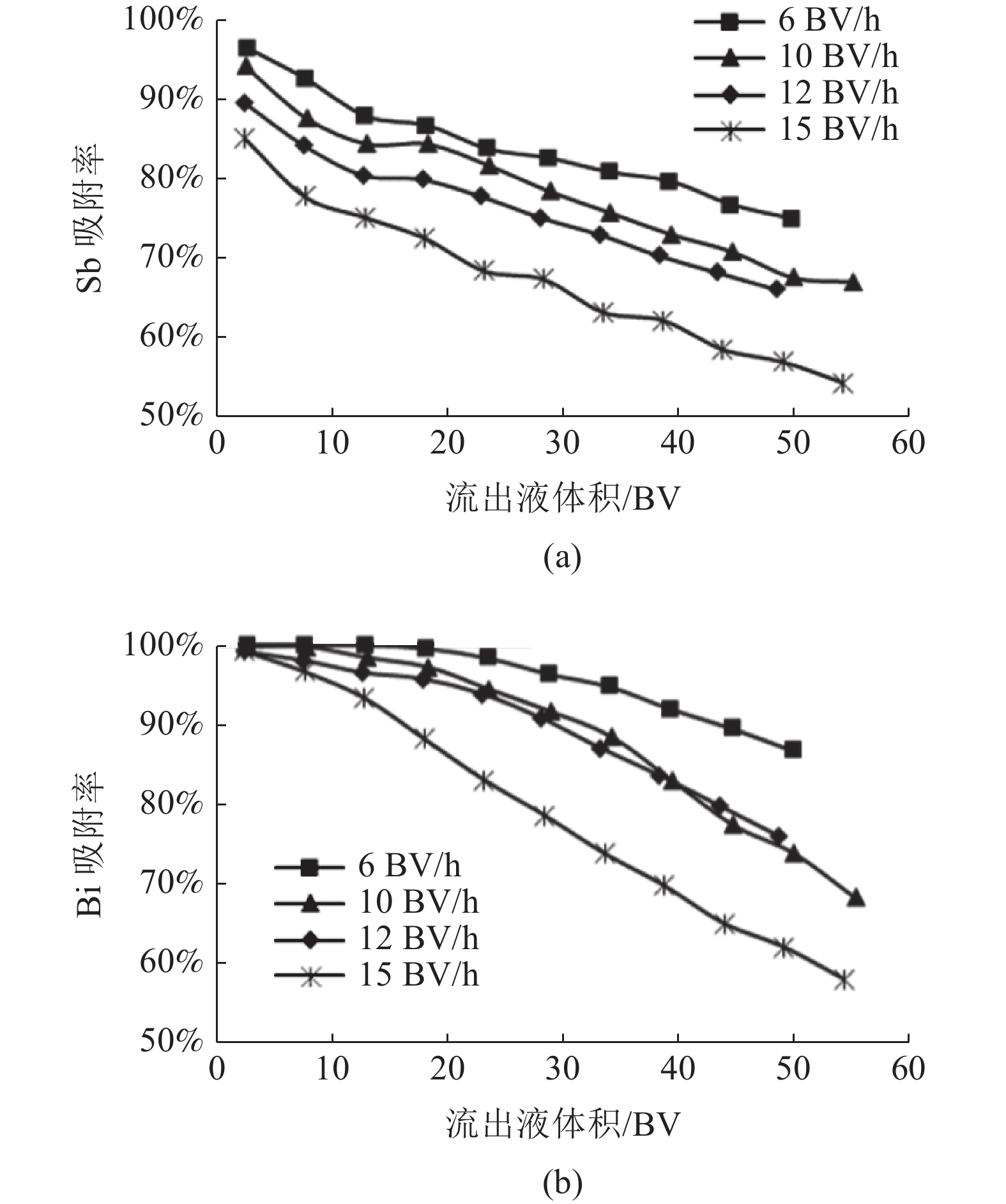

图 3 不同流速吸附曲线

Figure 3.

下载: 全尺寸图片幻灯片

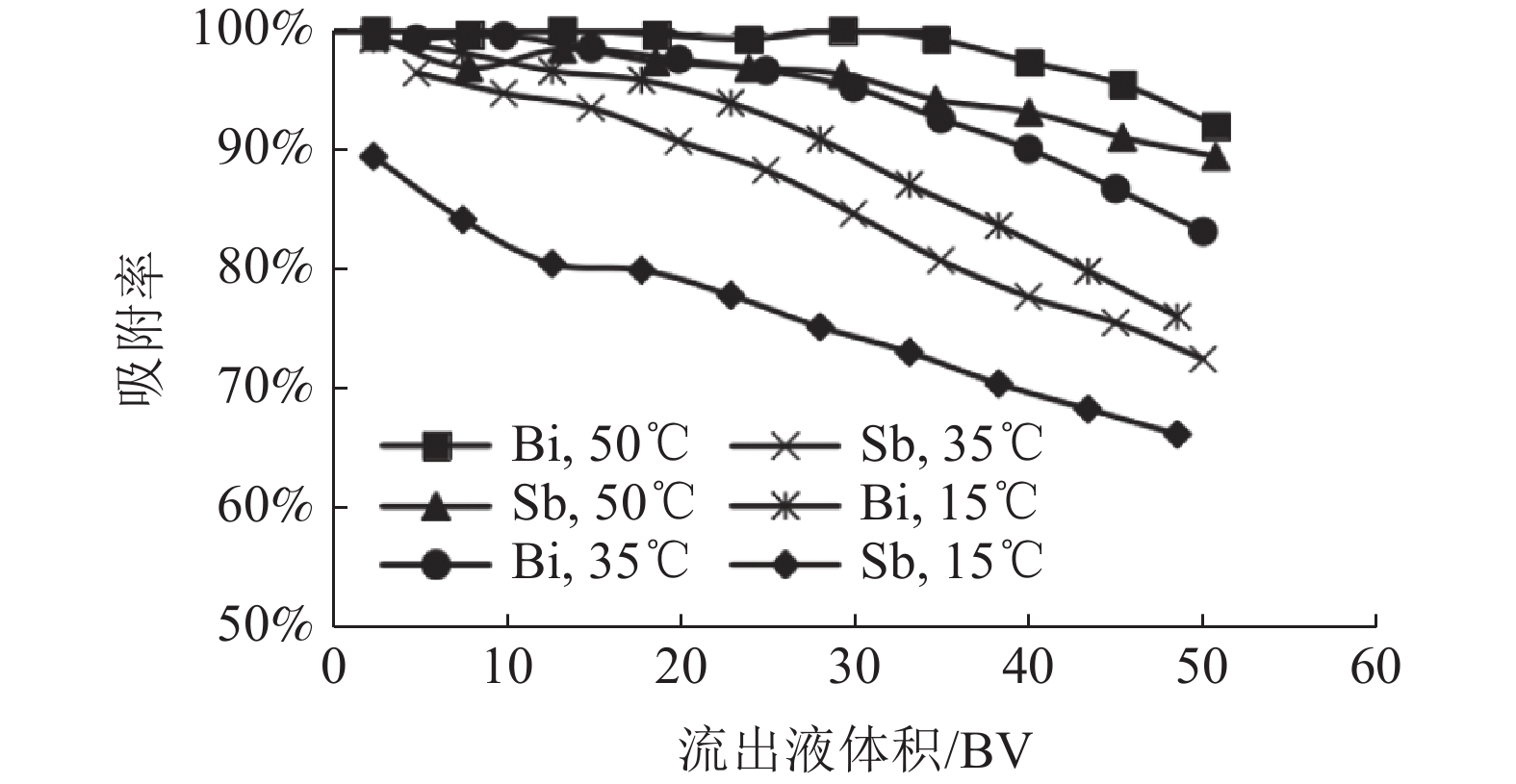

图 4 不同温度吸附曲线

Figure 4.

下载: 全尺寸图片幻灯片

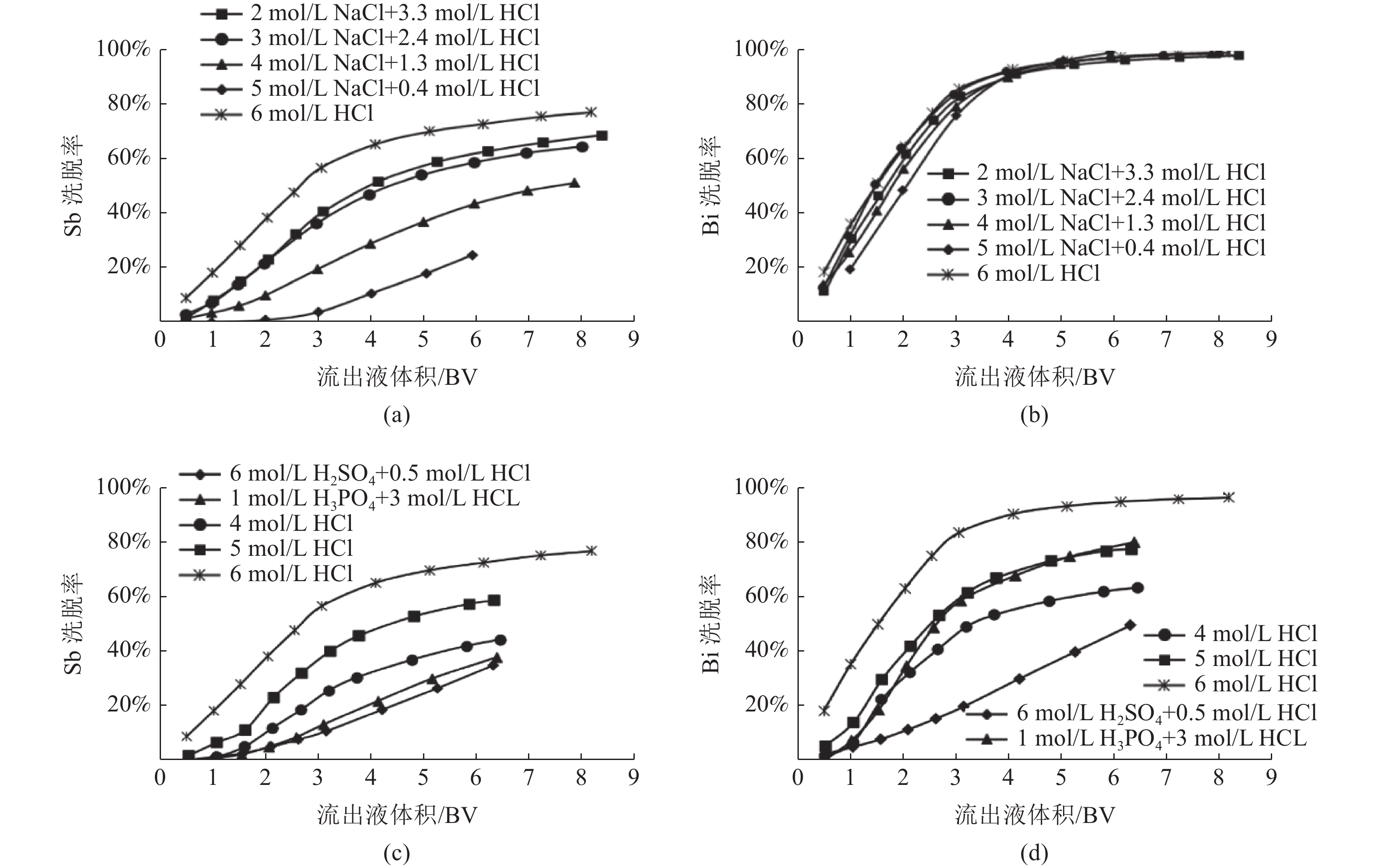

图 5 不同洗脱剂溶液洗脱曲线

Figure 5.

下载: 全尺寸图片幻灯片

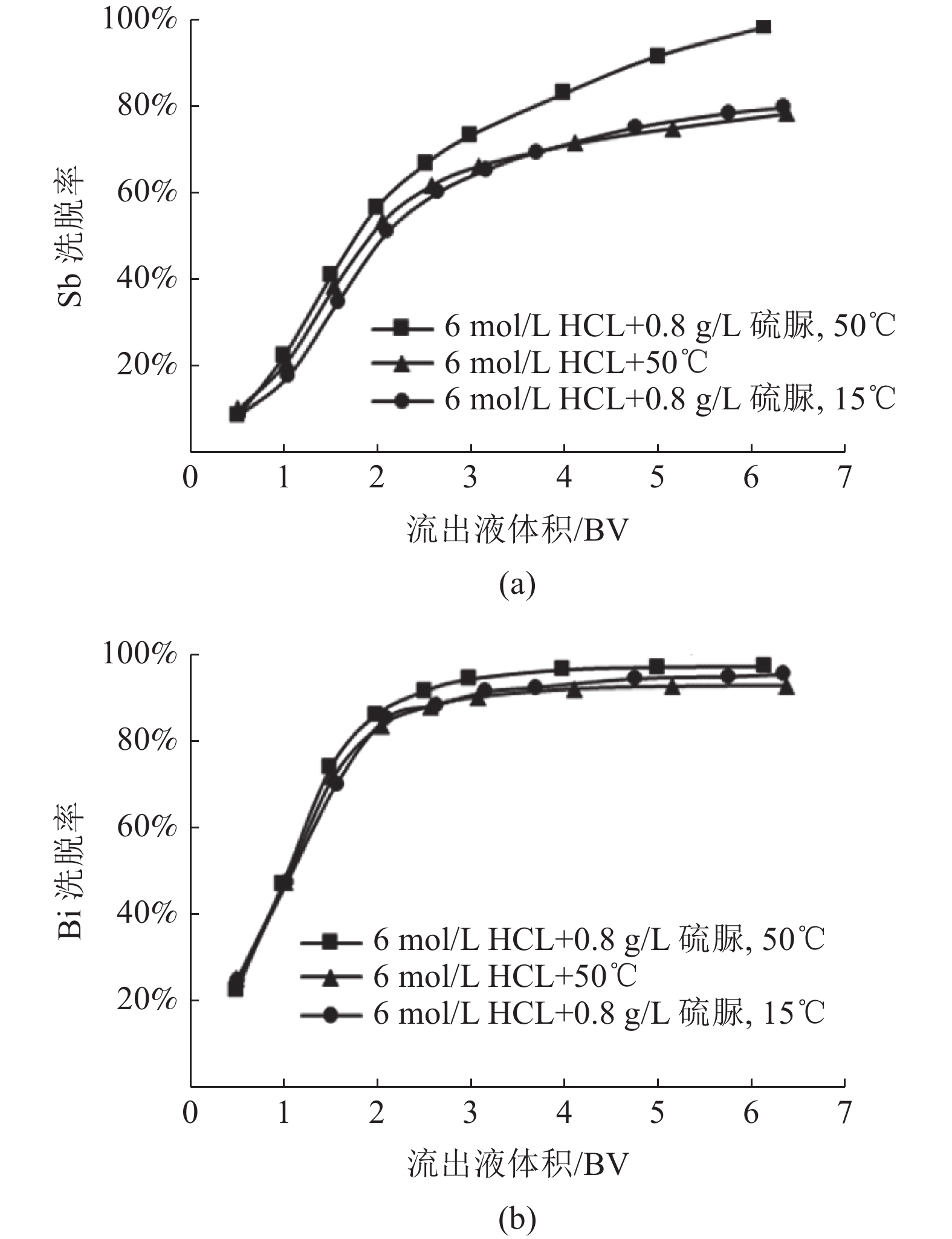

图 6 温度和添加剂对锑、铋洗脱的影响

Figure 6.

下载: 全尺寸图片幻灯片

图 7 不同负载量实验的洗脱后液质量浓度和洗脱曲线

Figure 7.

下载: 全尺寸图片幻灯片

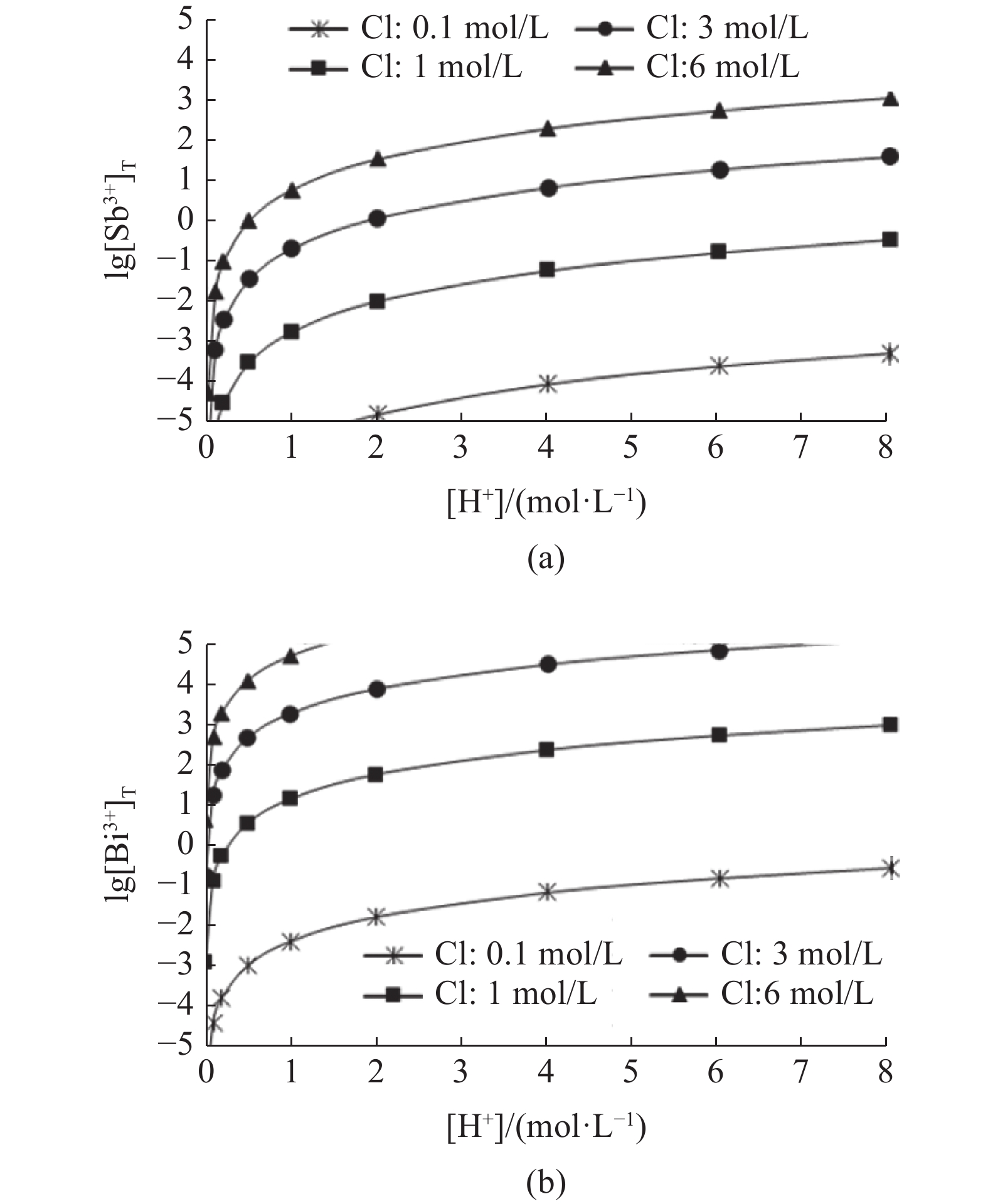

图 8 不同[Cl^-]浓度下lg[Sb³⁺]_T、lg[Bi³⁺]_T与[H⁺]浓度关系

Figure 8.

下载: 全尺寸图片幻灯片

表 1 铜电解液原液组成/（g·L^-1）

Table 1. Composition of copper electrolyte stock solution

Cu	As	Sb	Bi	Ni	Fe	H₂SO₄
45.54	12.71	0.18	0.26	12.61	0.21	178

下载: 导出CSV

表 2 静态吸附实验结果

Table 2. Experimental results of static adsorption

元素	实验	C₀/ （mmol·L^-1）	C_e/ （mmol·L^-1）	E	Q/ （mmol·g^-1）	D
Sb	1	1.36	1.03	24.2%	0.263	256
	2	1.36	0.81	40.0%	0.217	267
	3	1.36	0.60	55.8%	0.151	252
	4	1.36	0.27	80.0%	0.108	400
	5	0.80	0.53	34.0%	0.108	206
Bi	1	1.34	1.04	22.5%	0.241	232
	2	1.34	0.83	37.9%	0.203	244
	3	1.34	0.61	54.6%	0.146	241
	4	1.34	0.27	79.6%	0.107	391
	5	0.89	0.58	34.6%	0.122	212

下载: 导出CSV

表 3 铜电解液吸附前后成分/（g·L^-1）

Table 3. Composition of copper electrolyte before and after adsorption

成分	Cu	As	Sb	Bi	Ni	Fe	Pb	Zn
原液	45.54	12.71	0.18	0.26	12.61	0.21	0.029	0.206
吸附后液1	45.23	12.56	0.011	0.008	12.55	0.147	0.007	0.204
吸附后液2	45.64	12.63	0.009	0.006	12.60	0.154	0.007	0.199

下载: 导出CSV

表 4 不同清洗剂条件下所得洗脱后液成分/（g·L^-1）

Table 4. Composition of the eluate obtained under different cleaning agent conditions

清洗剂类型	Sb	Bi	Cu	As	Fe
水	2.97	5.45	0.21	0.83	0.18
稀硫酸	3.10	5.31	0.02	0.21	0.11

下载: 导出CSV

表 5 不同负载量实验的Sb和Bi树脂负载量/( mg·g^-1)

Table 5. Sb and Bi resin loadings of different loading experiments

实验	Sb树脂负载量	Bi树脂负载量
1	14.4	24.5
2	8.7	14.2

下载: 导出CSV

表 6 Sb³⁺、Bi³⁺与Cl^-的配合平衡常数

Table 6. Coordination equilibrium constants of Sb³⁺、Bi³⁺ and Cl^-

平衡常数	lgβ₁	lgβ₂	lgβ₃	lgβ₄	lgβ₅	lgβ₆
Sb-Cl	2.26	3.49	4.18	4.72	4.70	4.10
Bi-Cl	2.35	4.40	5.45	6.65	7.29	7.09

下载: 导出CSV
