摘要:

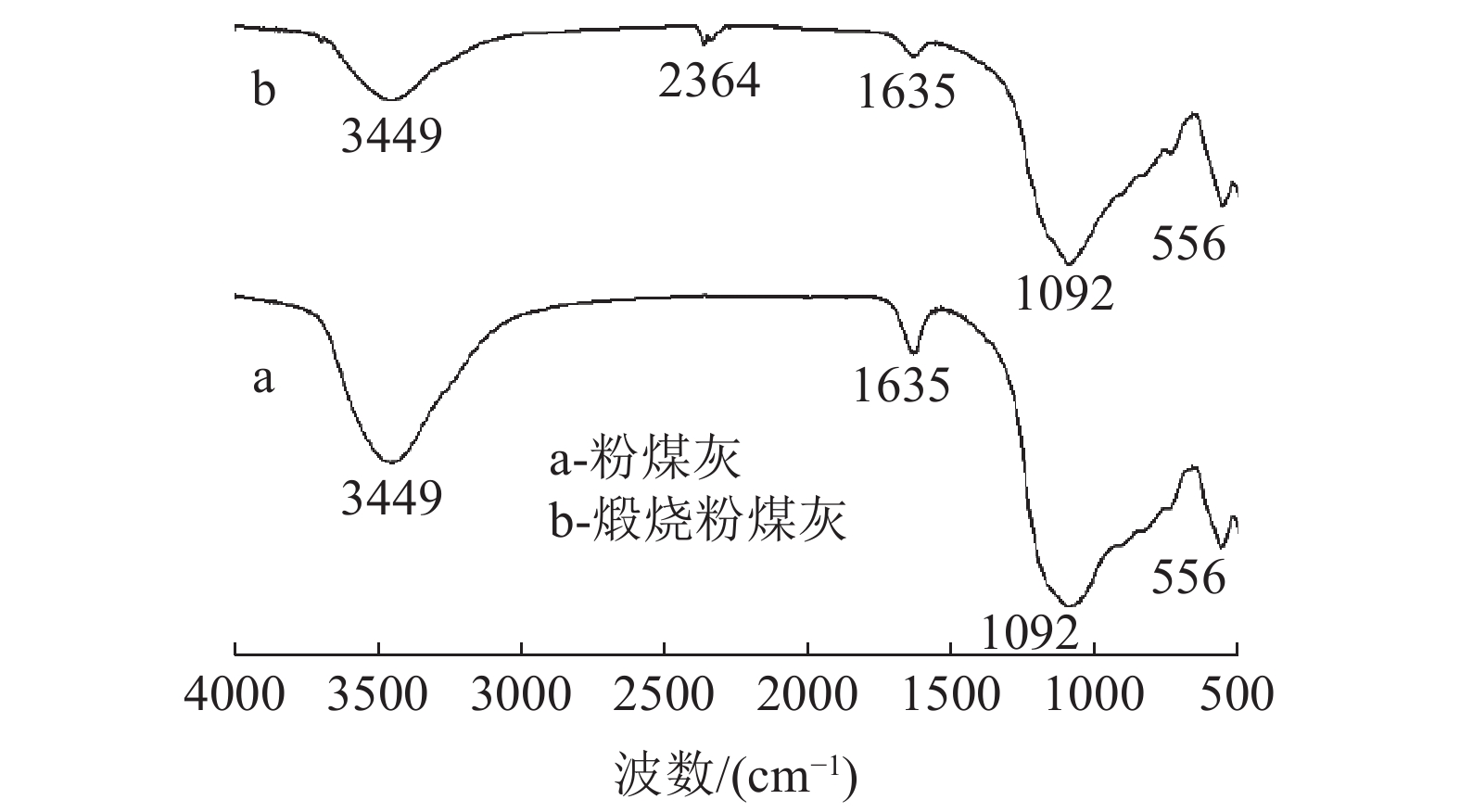

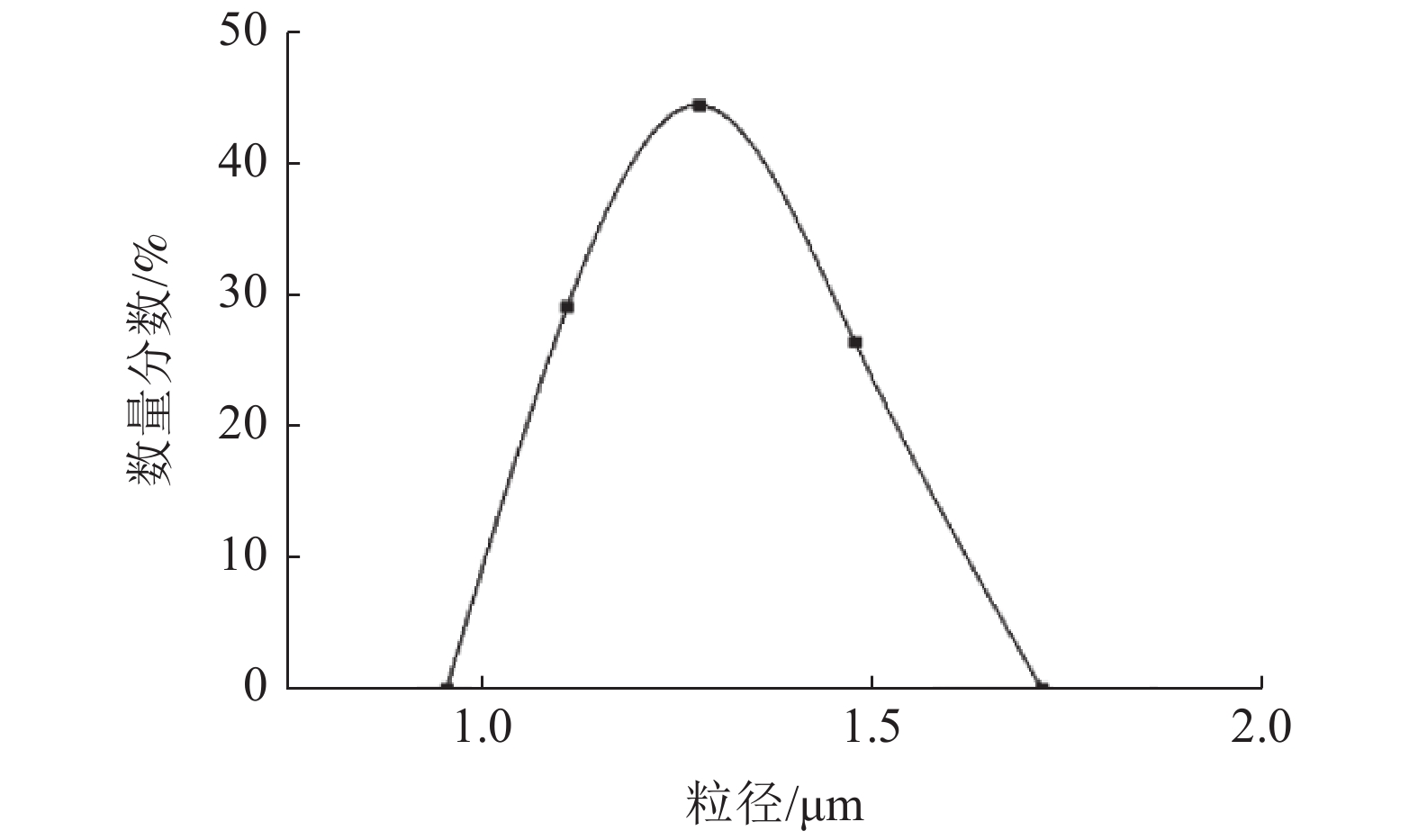

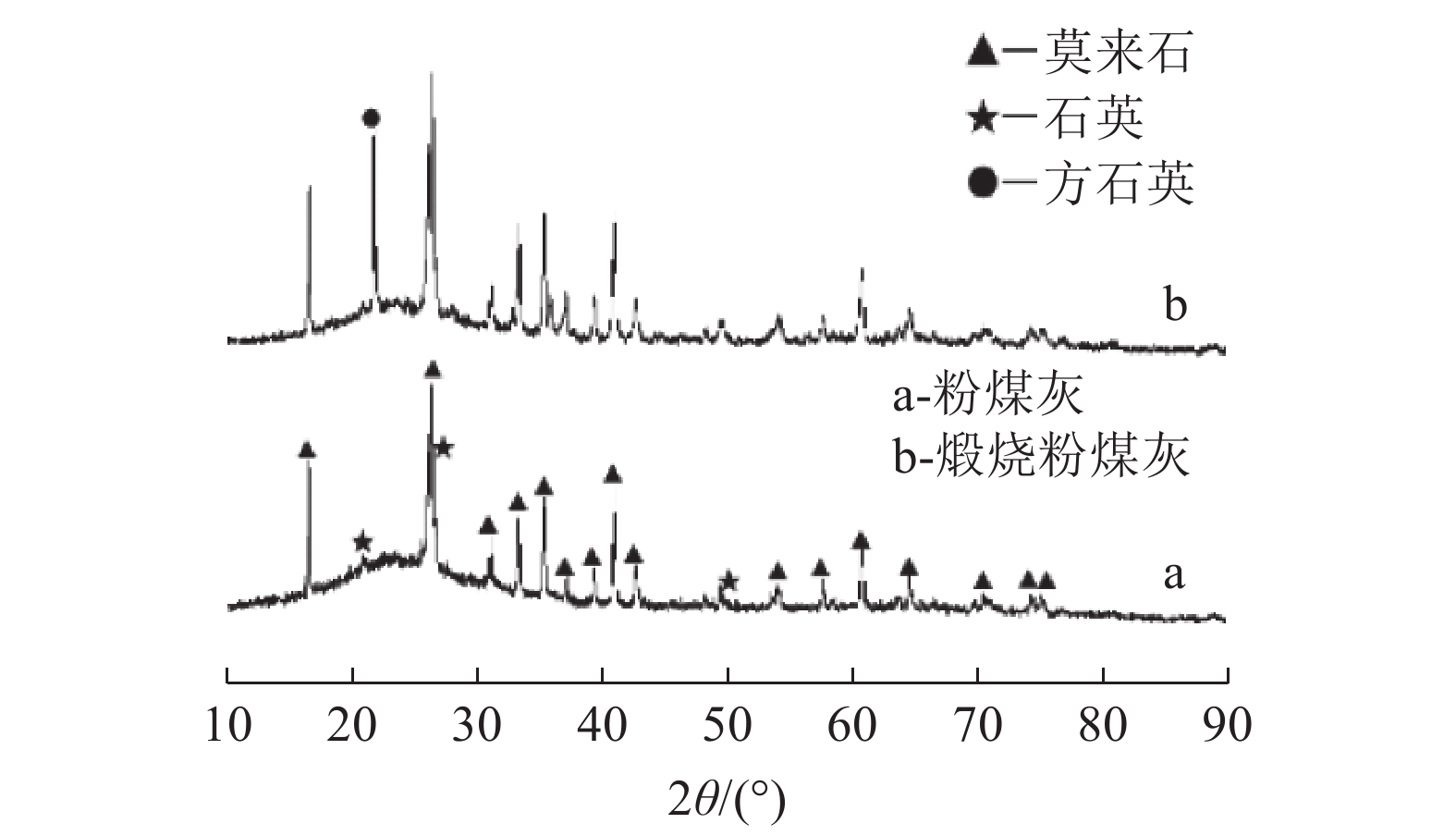

这是一篇矿物材料领域的论文。以-2.6 μm粉煤灰为原料，通过马弗炉在815 ℃下煅烧2 h得到煅烧粉煤灰。采用SEM、EDS、XRF、FTIR、XRD、BET对粉煤灰和煅烧粉煤灰的微观形貌、EDS能谱、粒度、红外光谱、物相组成以及比表面积-孔径进行了表征。按5%填充量将煅烧粉煤灰填充尼龙6制备了尼龙6/煅烧粉煤灰复合材料，采用扫描电镜仪分别对纯尼龙6和复合材料拉伸断面进行了分析，并测试了复合材料的力学性能、熔融指数和热变形温度。结果表明：煅烧对粉煤灰结构影响不大，只是除去了表面碳；煅烧粉煤灰填充尼龙6不会引发内应力；尼龙6/煅烧粉煤灰复合材料，除了缺口冲击强度和熔融指数比纯尼龙6有所下降外，其他性能均比纯尼龙6有大幅度提高，其中拉伸强度提高7.7 MPa，弯曲强度提高26.9 MPa，弯曲模量提高284 MPa，热变形温度提高46.2 ℃。
Abstract:This is a paper in the field of mineral materials. Fly ash (-2.6 μm) was used as raw material and calcined in muffle furnace at 815 ℃ for 2 h to obtain the calcined fly ash. The micro-morphology, EDS spectrum, particle size, infrared spectrum, phase composition and specific surface area-aperture of fly ash and calcined fly ash were characterized by SEM, EDS, XRF, FTIR, XRD and BET. The nylon 6/calcined fly ash composite was prepared by filling nylon 6 with 5% calcined fly ash, the tensile section of pure nylon 6 and the composite was analyzed by scanning electron microscope, and the mechanical properties, melting index and heat distortion temperature of the composite were tested. The results show that the calcination has little effect on the structure of fly ash, just remove the carbon of surface; Calcined fly ash filling in nylon 6 will not cause internal stress; Compared with the pure nylon 6, the nylon 6/calcined fly ash composite has significantly improved properties except the impact strength and melt index, in which the tensile strength, bending strength, bending modulus, bending modulus and heat distortion temperature are increased by 7.7 MPa, 26.9 MPa, 284 MPa and 46.2 ℃, respectively.
-
Key words:
- Fly ash /
- Mineral materials /
- Calcined fly ash /
- Nylon 6 /
- Mechanical properties /
- Heat distortion temperature
-
-

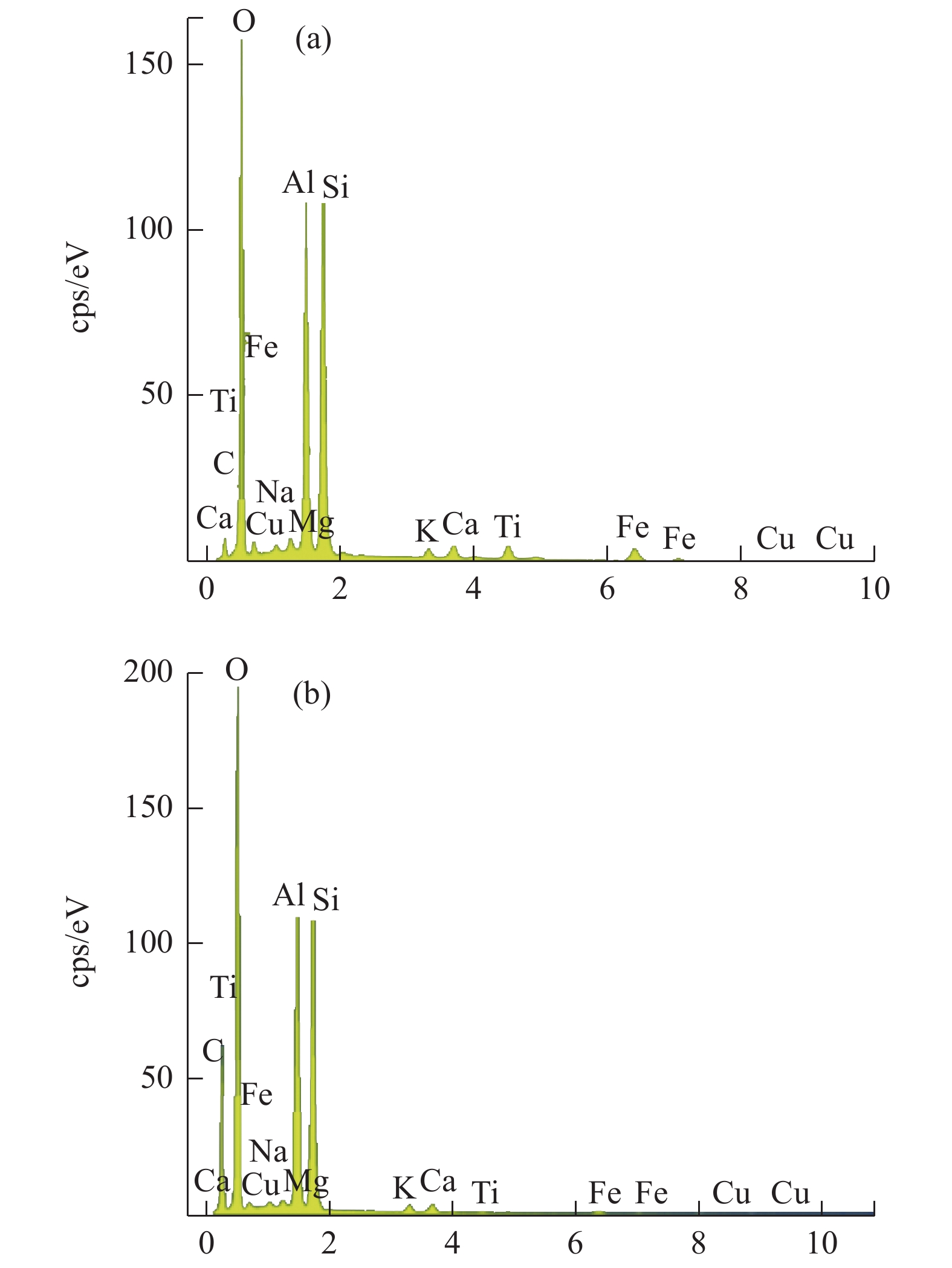

表 1 粉煤灰和煅烧样各元素的重量和原子百分比/%
Table 1. Weight and atomic percentage of elements of fly ash and calcined fly ash
名称 粉煤灰 煅烧样 C 7.26 11.86 31.65 42.05 O 48.85 59.86 45.02 44.91 Mg 0.58 0.47 0.24 0.16 Al 15.58 11.32 9.94 5.88 Si 17.56 12.25 10.62 6.03 Ca 1.54 0.75 0.74 0.30 Na 0.39 0.33 0.16 0.05
下载: 导出CSV
表 2 粉煤灰和煅烧样比表面积和孔径
Table 2. Specific surface area and pore size of fly ash and calcined samples
名称 粉煤灰 煅烧样 BET比表面积/(cm2·g-1) 2.64 1.71 t-plot比表面积/(cm2·g-1) 2.26 1.45 t-Plot微孔体积/(cm3·g-1) 0 0 BET平均孔径/nm 8.17 10.09
下载: 导出CSV
表 3 纯尼龙6和煅烧粉煤灰填充PA6力学性能
Table 3. Mechanical properties of pure nylon 6 and calcined fly ash filling in PA6
名称 纯尼龙6 煅烧粉煤灰填充尼龙6 缺口冲击强度/（kJ·m-2） 9.72 6.05 拉伸强度/MPa 61.3 69.0 弯曲强度/MPa 83.1 110.0 弯曲模量/MPa 2450 2734 热变形温度/℃ 120.5 166.7 熔融指数/（g·min-1） 2.57 1.87
下载: 导出CSV
-
