摘要:
这是一篇冶金工程领域的论文。以氧化铪和碳化硼为原料，采用氯化钠为熔盐介质，通过硼/碳热还原法合成了纯度较高的硼化铪粉体。研究了反应温度、保温时间等合成工艺参数以及原料配比对材料晶相组成和显微结构的影响。结果表明，以氯化钠为熔盐介质时，氧化铪在1300 ℃的合成温度下开始转化为硼化铪，其温度远低于传统的硼化铪合成所需温度。在硼过量20%，反应温度和保温时间分别为1400 ℃和2 h所制备的硼化铪粉体纯度较高，X射线衍射中可以明显观察到硼化铪结晶峰，且在扫描电镜中可以观察到紧密团聚形貌的硼化铪。
Abstract:This is an article in the field of metallurgical engineering. High purity hafnium diboride (HfB2) powders were synthesized from hafnium oxide (HfO2) and boron carbide (B4C) powders via sodium chloride as the molten salt through boron/carbon thermal reduction. Investigations were carried out to determine the effect of synthesis parameters (reaction temperature, holding time) and boron content on the phase composition and microstructure of the synthesized hafnium diboride powders. The results demonstrated when sodium chloride was used as the molten salt medium, the conversion of HfO2 to HfB2 started at 1300 ℃, which was significantly lower than the temperature required for conventional hafnium diboride. The purity of the HfB2 powder was the highest when the boron excess was 20%, with the reaction temperature and holding time being 1400 ℃ and 2 h, respectively. HfB2 crystalline peaks were prominent in X-ray diffraction (XRD) and scanning electron microscopy (SEM) confirmed HfB2 in a densely agglomerated structure.
-
-

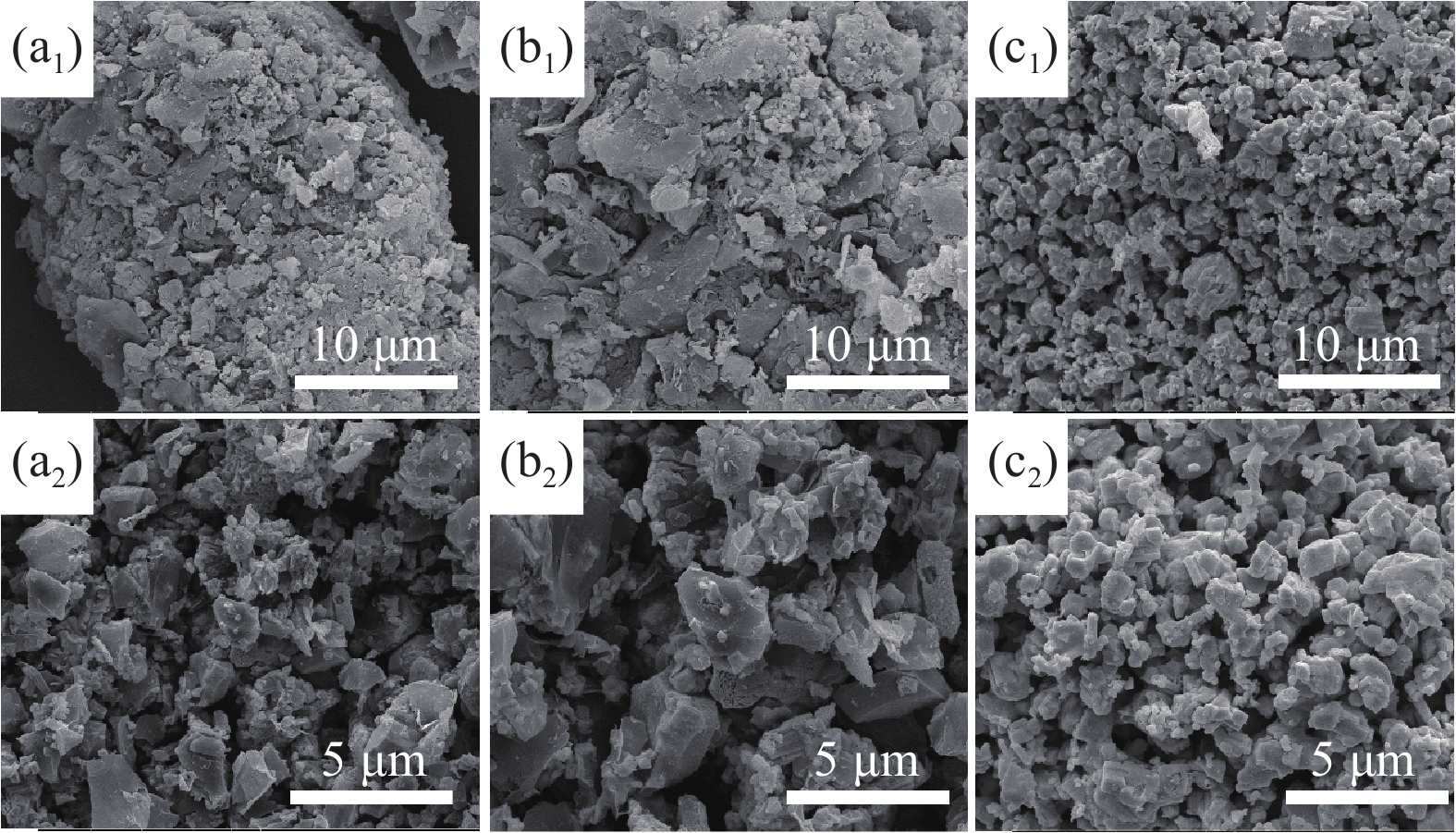

图 5 1400 ℃不使用NaCl为熔盐介质制备粉体（a1-a2）的SEM；1300 ℃（b1-b2）、1400 ℃（c1-c2）下NaCl为熔盐介质制备粉体的SEM
Figure 5.
-
[1] Shahzad S, Zhang Y, Wang H, et al. Influence of Re on high-temperature oxidation behavior of MCrAlY type coating alloys[J]. Rare Metal Materials and Engineering, 2015(44):316-319.
[2] 李曙光. 国外高超音速飞行器现状及有关工艺技术研究[J]. 航天制造技术, 2007(44):3-5.LI S G. Research on foreign hypersonic vehicle status and related technology[J]. Aerospace Manufacturing Technology, 2007(44):3-5.
LI S G. Research on foreign hypersonic vehicle status and related technology[J]. Aerospace Manufacturing Technology, 2007(44):3-5.
[3] Padture N P, Gell M, Jordan E H. Thermal barrier coatings for gas-turbine engine applications[J]. Science, 2002(296):280-284.
[4] Gurrappa I, Rao A S. Thermal barrier coatings for enhanced efficiency of gas turbine engines[J]. Surface & Coatings Technology, 2006(201):3016-3029.
[5] 刘朋闯. 二氧化锆靶材及薄膜制备技术研究[D]. 绵阳: 中国工程物理研究院, 2012.LIU P C. Study on preparation technology of zirconia target and film[D]. Mianyang: China Academy of Engineering Physics, 2012.
LIU P C. Study on preparation technology of zirconia target and film[D]. Mianyang: China Academy of Engineering Physics, 2012.
[6] 魏春城, 田贵山, 孟凡涛, 等. 硼化铪粉体的制备与表征[J]. 硅酸盐通报, 2009(28):98-101.WEI C C, TIAN G S, MENG F T, et al. Preparation and characterization of hafnium boride powders[J]. Bulletin of the Chinese Ceramic Society, 2009(28):98-101.
WEI C C, TIAN G S, MENG F T, et al. Preparation and characterization of hafnium boride powders[J]. Bulletin of the Chinese Ceramic Society, 2009(28):98-101.
[7] Ni D W, Zhang G J, Kan Y M, et al. Synthesis of monodispersed fine hafnium diboride powders using carbo/bor other malreduction of hafnium dioxide[J]. Journal of the American Ceramic Society, 2010(91):2709-2712.
[8] Venugopal S, Boakye E E, Paul A, et al. Sol-gel synthesisand formation mechanism of ultrahigh temperature ceramic: HfB2[J]. Journal of the American Ceramic Socirty, 2014(97):92-99.
[9] Jayaraman S, Gerbi J E, Yang Y, et al. HfB2 and Hf-B-N hard coatings by chemical vapor deposition[J]. Surface & Coatings Technology, 2006(200):6629-6633.
[10] 喻冲, 冷科, 王怡, 等. 碳源对碳热还原法制备二硼化锆中硼损失的影响[J]. 核动力工程, 2022(43):1-6.YU C, LENG K, WANG Y, et al. Effect of carbon source on boron loss in preparation of zirconium diboride by carbothermal reduction[J]. Nuclear Power Engineering, 2022(43):1-6.
YU C, LENG K, WANG Y, et al. Effect of carbon source on boron loss in preparation of zirconium diboride by carbothermal reduction[J]. Nuclear Power Engineering, 2022(43):1-6.
[11] Huang Z, Li F L, Jiao C P, et al. Molten salt synthesis of La2Zr2O7 ultrafine powders[J]. Ceramics International, 2016(42):6221-6227.
-
