摘要:

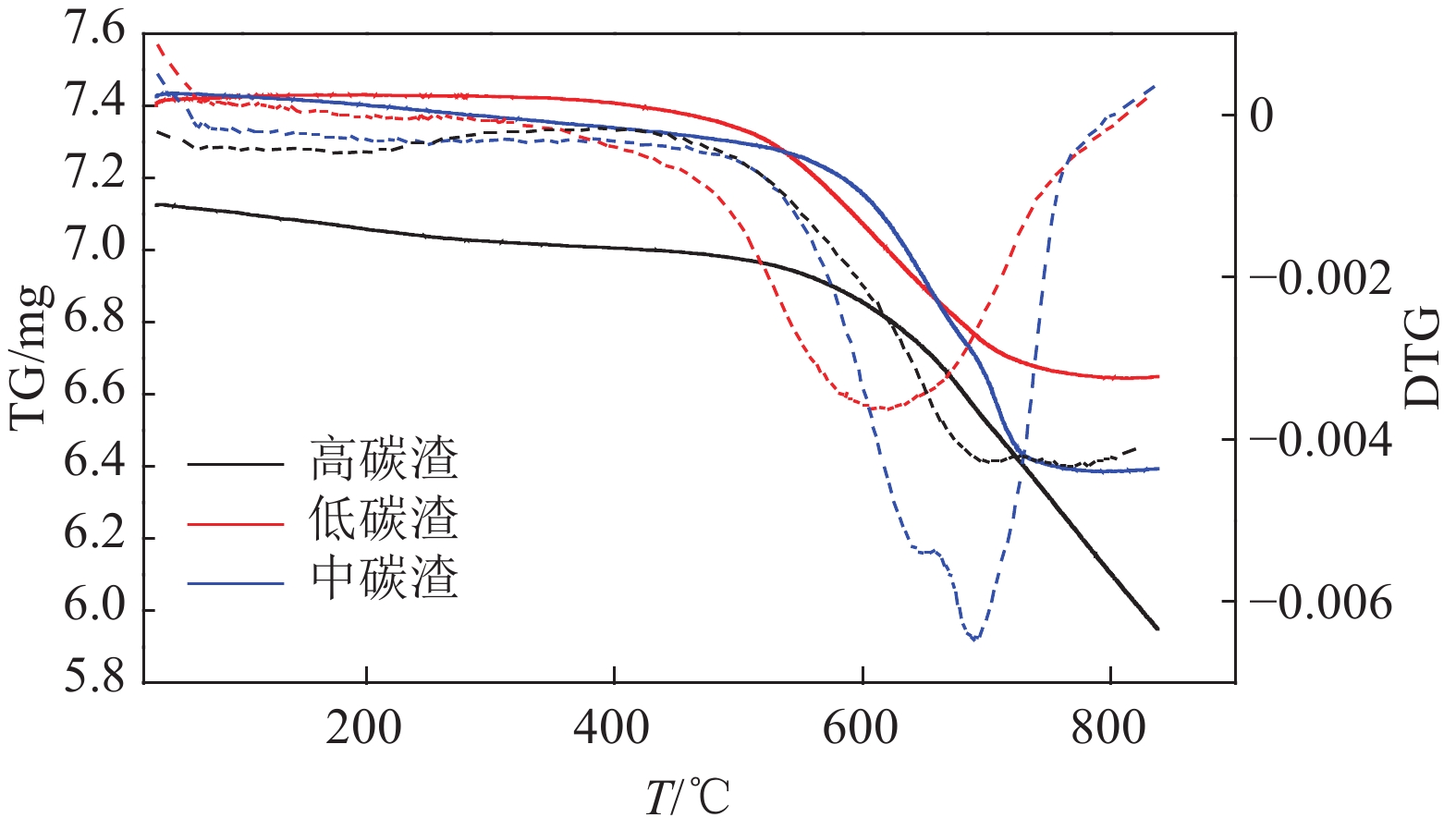

这是一篇矿物加工工程领域的论文。气化渣是煤气化过程中产生的副产物，较难进行工业化处理。为实现对气化渣的合理有效利用，对我国鄂尔多斯地区典型的水煤浆工艺所产的气化粗渣进行简单的筛分处理，将其分为高、中和低碳三类碳渣。利用XRF、元素分析仪、XRD、SEM、BET比表面积分析仪、热重分析仪和ICP-MS等分析设备对三类碳渣的物理化学性质、重金属含量、碳含量、微观形貌、矿相组成和孔隙结构等进行表征分析。高、中和低碳三类碳渣具有显著的性质差异，筛分作业能较好地实现了气化渣的初步分质，为气化渣的利用奠定了基础。
Abstract:This is an article in the field of mineral processing engineering. The gasification slag is a by-product produced in the process of coal gasification, which is difficult to be industrialized. In order to realize the rational and effective utilization of gasification slags, the gasification coarse slags produced by the typical coal water slurry process in Ordos area of China are simply separated into high, medium and low carbon slags by screening. The physicochemical properties, heavy metal content, carbon content, micro morphology, mineral phase composition and pore structure of the three types of carbon slags were characterized and analyzed by XRF, element analyzer, XRD, SEM, BET specific surface area analyzer, thermogravimetric analyzer and ICP-MS. The high, medium and low carbon slags have significant differences in characteristics. The screening can better realize the preliminary quality separation of gasified slags, which lays a foundation for the classified utilization of gasified slags.
-
-
表 1 原料粗渣基本物性/%
Table 1. Basic physical properties of raw material coarse slags
C H N S SiO2 Al2O3 Fe2O3 CaO MgO SO3 TiO2 K2O Na2O P2O5 烧失量 含水量 19.89 0.14 0.31 0.31 48.83 17.88 12.54 12.6 1.22 2.21 0.82 1.6 1.61 0.15 24.67 20.50
下载: 导出CSV
表 2 样品标记/mm
Table 2. Sample marking
-0.055 -0.074+0.055 -0.106+0.0740 -0.15+0.106 -0.18+0.15 -0.2+0.18 -0.25+0.2 -0.30+0.25 -0.425+0.30 -0.55+0.425 -0.85+0.55 -1.7+0.85 +1.7 QHCZ-13 QHCZ-12 QHCZ-11 QHCZ-10 QHCZ-9 QHCZ-8 QHCZ-7 QHCZ-6 QHCZ-5 QHCZ-4 QHCZ-3 QHCZ-2 QHCZ-1
下载: 导出CSV
表 3 三类碳渣元素含量及产率
Table 3. Element content and yield of three types of carbon slags
元素含量/% 烧失量/% 产率/% C H S N 高碳渣 44.33 0.38 0.43 0.63 46.39 40.73 中碳渣 16.58 0.19 0.67 0.25 19.45 14.62 低碳渣 1.94 0.09 0.29 0.10 3.20 44.65
下载: 导出CSV
表 4 BET比表面积与比孔容积
Table 4. BET specific surface area and specific pore volume
吸附剂 BET比表面积/（m2/g） 孔容/（cm3/g） 孔径/nm 高碳渣 234.118 8 0.177 677 4.290 5 中碳渣 129.275 4 0.160 892 5.442 9 低碳渣 0.283 2 0.000 171 6.447 3
下载: 导出CSV
表 5 粗渣原料及三类碳渣重金属元素含量/（mg/kg）
Table 5. Content of heavy metals in raw materials of coarse slags and three types of carbon slags
元素 粗渣原料 高碳渣 中碳渣 低碳渣 Pb 11.7 22.0 32.7 6.2 Cd 0.3 0.2 0.3 0.2 Cr 327.8 127.3 104.6 513.7 Hg 2.2 1.7 3.7 3.8 As 18.0 24.9 27.0 8.8 Co 35.0 22.5 46.6 44.0 Cu 33.6 22.3 46.0 41.0 Ni 32.3 24.0 51.5 33.4 Sb 0.5 0.3 0.8 0.4 Tl 2.4 3.1 2.2 2.4 V 61.4 39.1 69.6 80.0 Zn 33.0 57.0 81.3 23.2
下载: 导出CSV
-
[1] 刘艳丽, 李强, 陈占飞, 等. 煤气化渣特性分析、研究进展与展望[J]. 煤炭科学技术, 2021(10):1-9.LIU Y L, LI Q, CHEN Z F, et al. Characteristics analysis, research progress and prospect of coal gasification slag[J]. Coal Science and Technology, 2021(10):1-9.
LIU Y L, LI Q, CHEN Z F, et al. Characteristics analysis, research progress and prospect of coal gasification slag[J]. Coal Science and Technology, 2021(10):1-9.
[2] 朱龙涛, 王庆平, 王彦君, 等. 煤矸石制备地质聚合物注浆材料的研究进展[J]. 矿产综合利用, 2022(4):129-133.ZHU L T, WANG Q P, WANG Y J, et al. Research progress on preparation of geopolymer grouting material from coal gangue[J]. Multipurpose Utilization of Mineral Resources, 2022(4):129-133. doi: 10.3969/j.issn.1000-6532.2022.04.023
ZHU L T, WANG Q P, WANG Y J, et al. Research progress on preparation of geopolymer grouting material from coal gangue[J]. Multipurpose Utilization of Mineral Resources, 2022(4):129-133. doi: 10.3969/j.issn.1000-6532.2022.04.023
[3] 聂轶苗, 夏淼, 刘攀攀, 等. 粉煤灰基矿物聚合材料研究进展[J]. 矿产综合利用, 2022(4):123-128.NIE Y M, XIA M, LIU P P, et al. Research progress on fly ash based geopolymer[J]. Multipurpose Utilization of Mineral Resources, 2022(4):123-128. doi: 10.3969/j.issn.1000-6532.2022.04.022
NIE Y M, XIA M, LIU P P, et al. Research progress on fly ash based geopolymer[J]. Multipurpose Utilization of Mineral Resources, 2022(4):123-128. doi: 10.3969/j.issn.1000-6532.2022.04.022
[4] 顾成, 李宇. 煤基固废物综合利用研究进展[J]. 煤炭与化工, 2020, 43(9):98-101.GU C, LI Y. Research progress in comprehensive utilization of coal basedsolid waste[J]. Coal and Chemical Industry, 2020, 43(9):98-101.
GU C, LI Y. Research progress in comprehensive utilization of coal basedsolid waste[J]. Coal and Chemical Industry, 2020, 43(9):98-101.
[5] 周安宁, 高影, 李振. 煤气化灰渣组成结构及分选加工研究进展[J]. 西安科技大学学报, 2021, 4(41):576-584.ZHOU A N, GAO Y, LI Z. Composition structure and separation processing of ash and slag during coal gasification[J]. Jounal of Xi’an University of Science and Technology, 2021, 4(41):576-584.
ZHOU A N, GAO Y, LI Z. Composition structure and separation processing of ash and slag during coal gasification[J]. Jounal of Xi’an University of Science and Technology, 2021, 4(41):576-584.
[6] LIU S, CHEN X, AI W, et al. A new method to prepare mesoporous silica from coal gasification fine slag and its application in methylene blue adsorption[J]. Journal of Cleaner Production, 2019(212):1062-1071.
[7] 宋瑞领, 蓝天. 气流床煤气化炉渣特性及综合利用研究进展[J]. 煤炭科学与技术, 2021, 4(49):227-236.SONG R L, LAN T. Review on characteristics and utilization of entrained-flow coal gasification residue[J]. Coal Science and Technology, 2021, 4(49):227-236.
SONG R L, LAN T. Review on characteristics and utilization of entrained-flow coal gasification residue[J]. Coal Science and Technology, 2021, 4(49):227-236.
[8] WAGNER N J, MATJIE R H , S LAGHUIS J H, et al . Characterization of unburned carbon present in coarse gasification ash[ J] . Fuel, 2008(87): 683-691.
[9] WU TAO, GONG MEI, ED L, et al . Characterization of residual carbon from entrained-bed coal water slurry gasifiers[ J] . Fuel, 2007(86): 972-982.
[10] 吕飞勇, 初茉, 易浩然, 等. 磁性灰粒在不同粒级气化灰渣中的分布特性[J]. 化工进展, 2022, 41(5):2372-2378.LYU F Y, CHU M, YI H R, et al. Distribution characteristics of magnetic ash particles in gasification slag of different particle sizes[J]. Chemical Industry and Engineering Progress, 2022, 41(5):2372-2378.
LYU F Y, CHU M, YI H R, et al. Distribution characteristics of magnetic ash particles in gasification slag of different particle sizes[J]. Chemical Industry and Engineering Progress, 2022, 41(5):2372-2378.
[11] 吴阳, 赵世永, 李博. 宁东煤气流床气化残渣特性研究[J]. 煤炭工程, 2017, 49(3):115-118.WU Y, ZHAO S Y, LI B. Study on the residue features of Ningdong coal in entrained flow gasifiers[J]. Coal Engineering, 2017, 49(3):115-118. doi: 10.11799/ce201703033
WU Y, ZHAO S Y, LI B. Study on the residue features of Ningdong coal in entrained flow gasifiers[J]. Coal Engineering, 2017, 49(3):115-118. doi: 10.11799/ce201703033
[12] 王文钰, 李伟, 梁晨, 等. 西北地区气流床煤气化细灰理化特性研究[J]. 洁净煤技术, 2017, 3(27):94-99.WANG W Y, LI W, LIANG C, et al. Research on physicochemical characteristics of fine slag from gasification in Northwest China[J]. Clean Coal Technology, 2017, 3(27):94-99.
WANG W Y, LI W, LIANG C, et al. Research on physicochemical characteristics of fine slag from gasification in Northwest China[J]. Clean Coal Technology, 2017, 3(27):94-99.
-
