摘要:

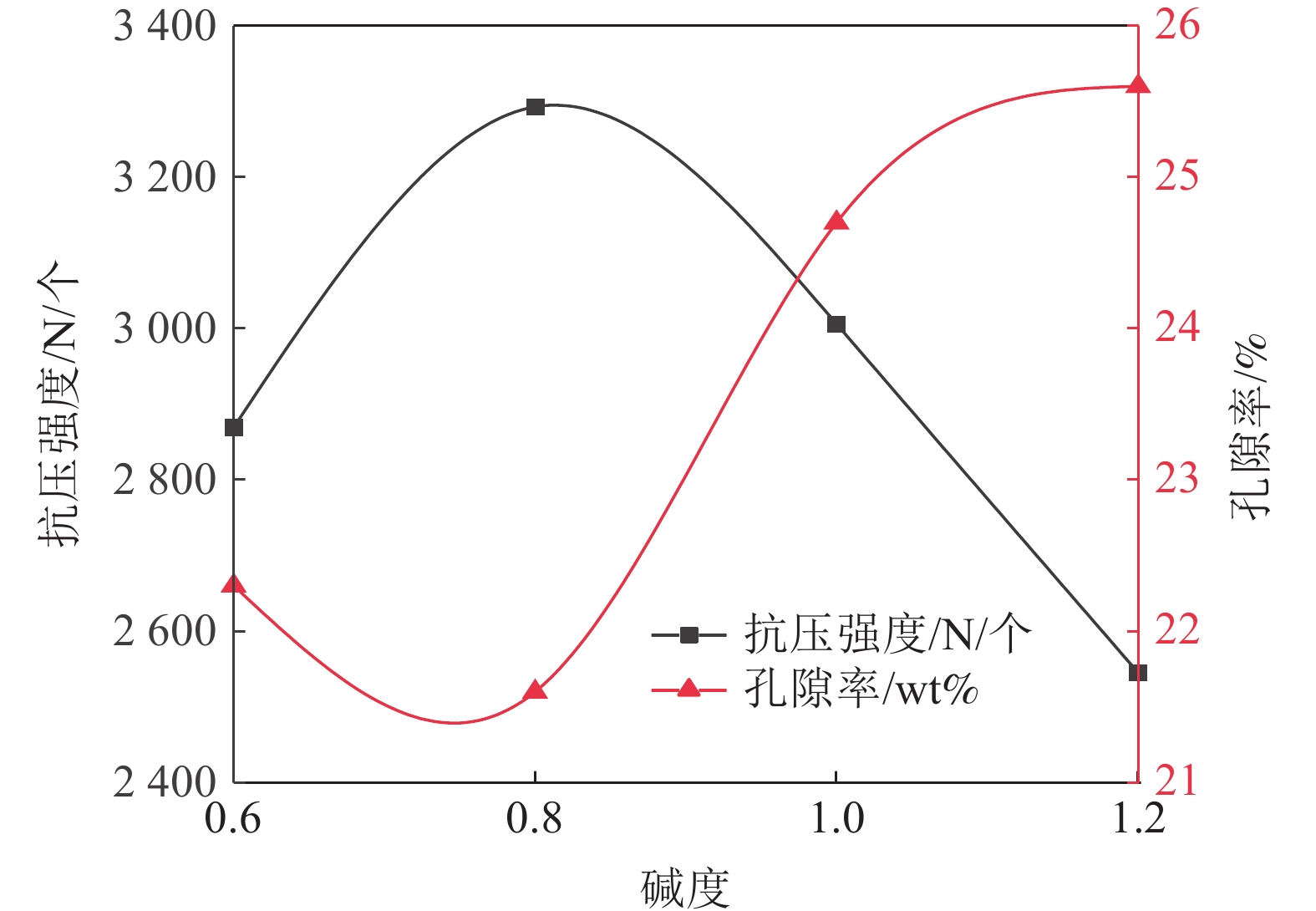

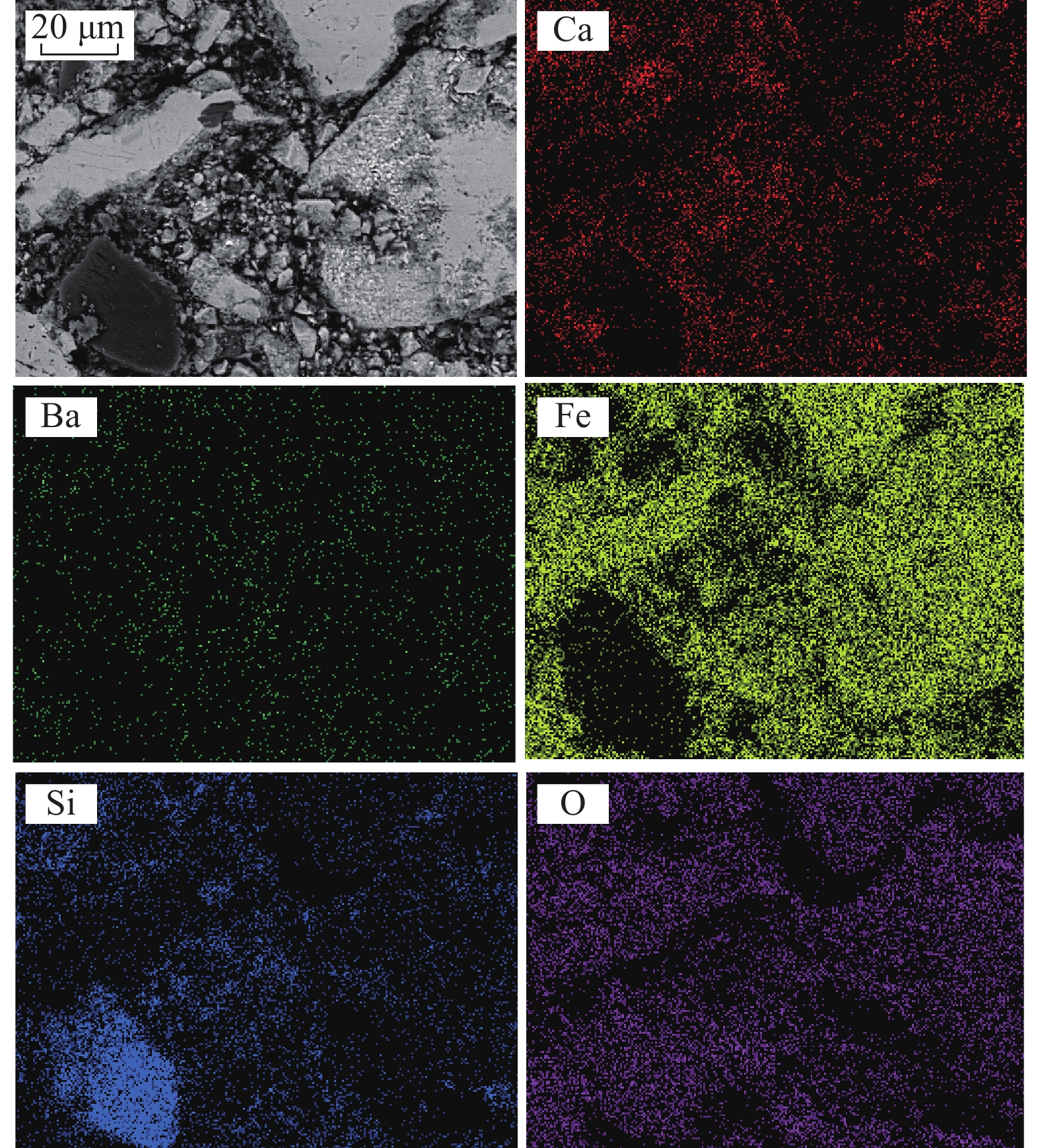

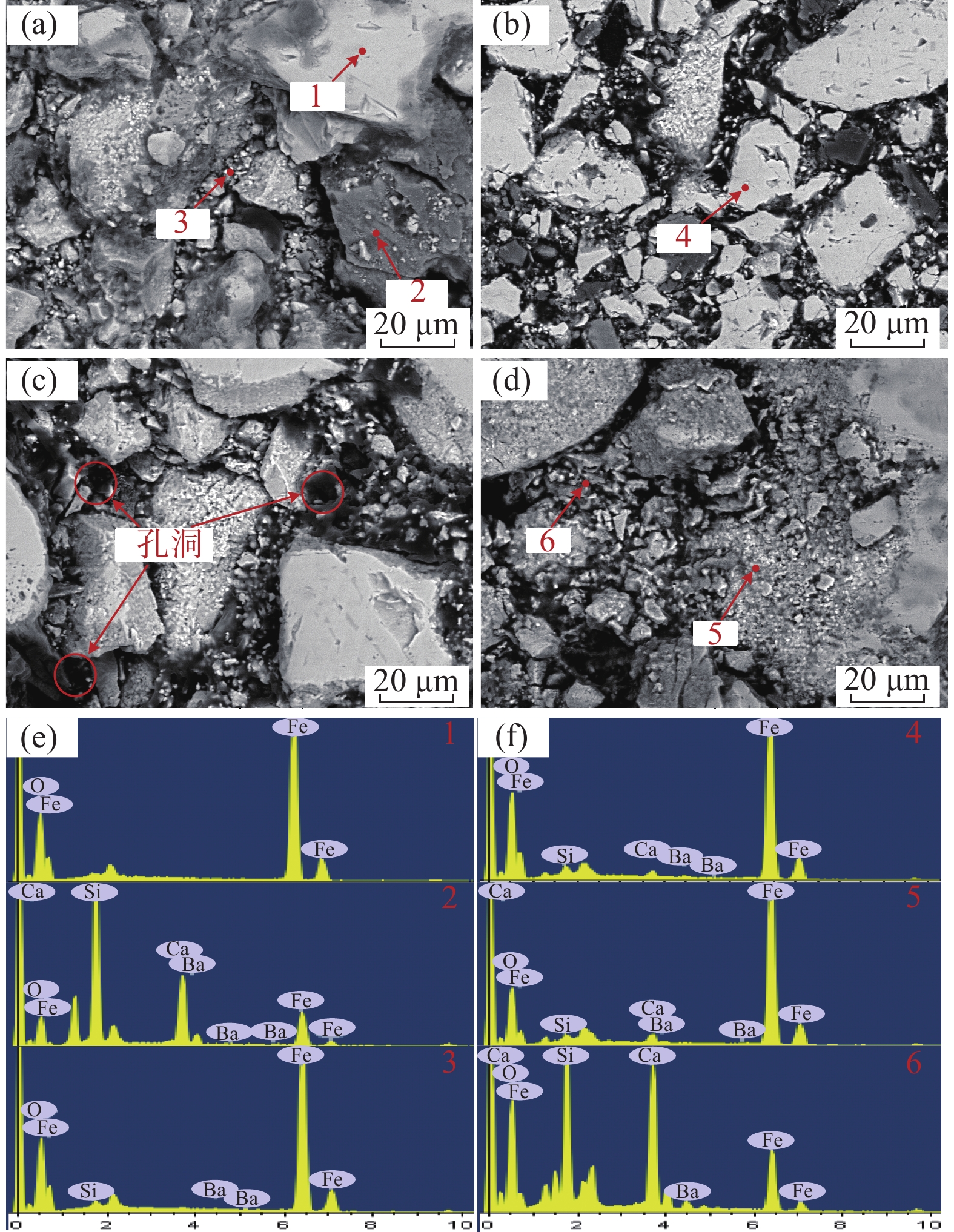

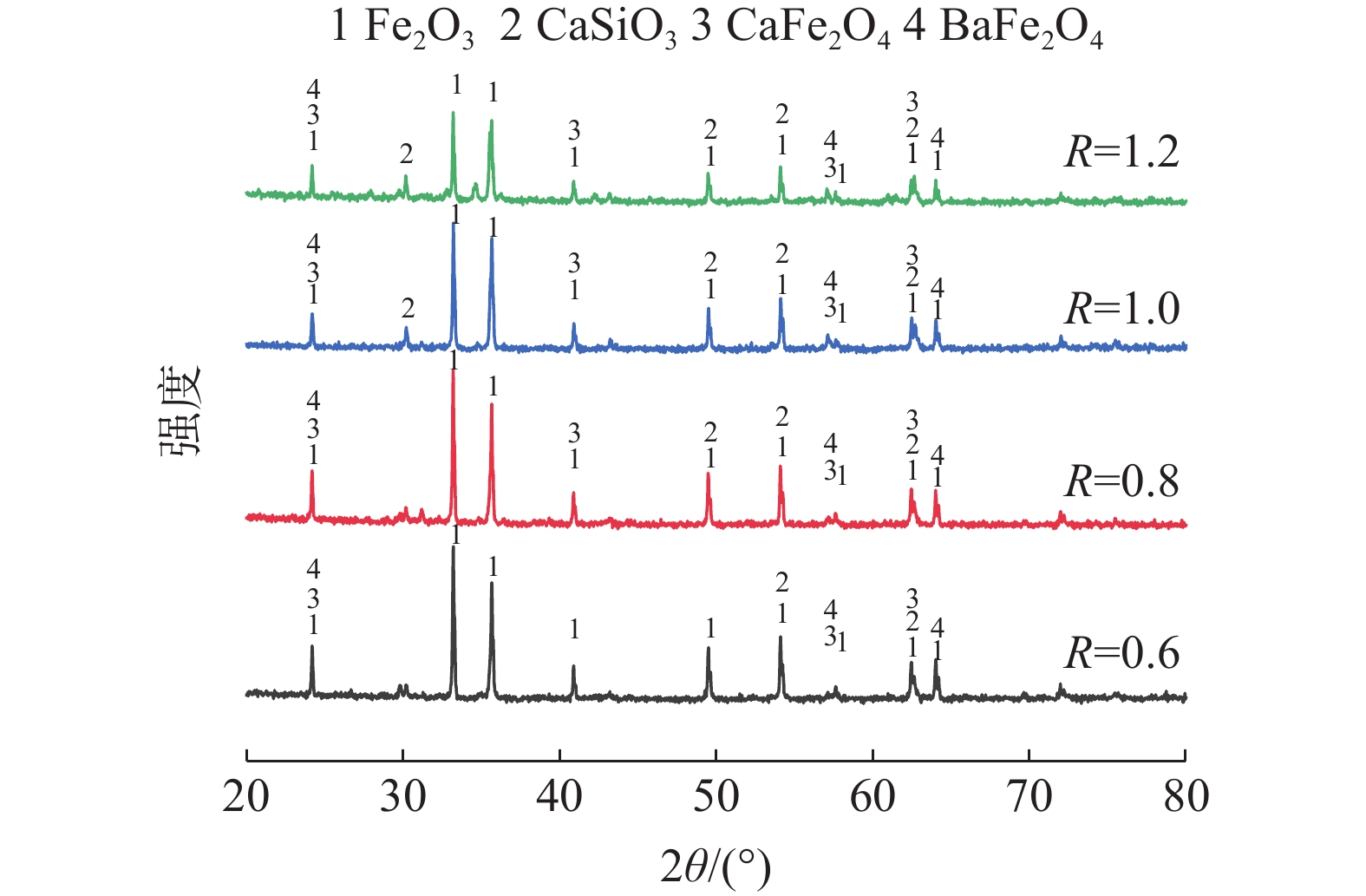

本文以含钡磁铁精矿粉和膨润土为原料，通过配加一定比例的Ca(OH)2，研究碱度对含钡球团矿抗压强度的影响，并采用X射线衍射仪、扫描电子显微镜-能谱仪等手段，结合同步热分析仪，分析含钡球团矿的固结机理。结果表明，随着碱度的增加，含钡球团矿的抗压强度先增加后减少，在碱度为0.8时达到最大值，为3 292.8 N/个，而球团的孔隙率呈相反变化趋势，最小孔隙率为21.6%；Ca(OH)2分解出的CaO进而分别与Fe2O3和SiO2反应生成CaFe2O4和CaSiO3，且少量的Ca2FeO4填充在孔隙中，降低球团的孔隙率增加抗压强度。BaSO4分解为BaO和SO2，其中BaO与Fe2O3反应生成BaFe2O4，SO2气体从球团矿内部逸出，降低球团矿基体的致密性，导致球团矿微观结构疏松多孔。

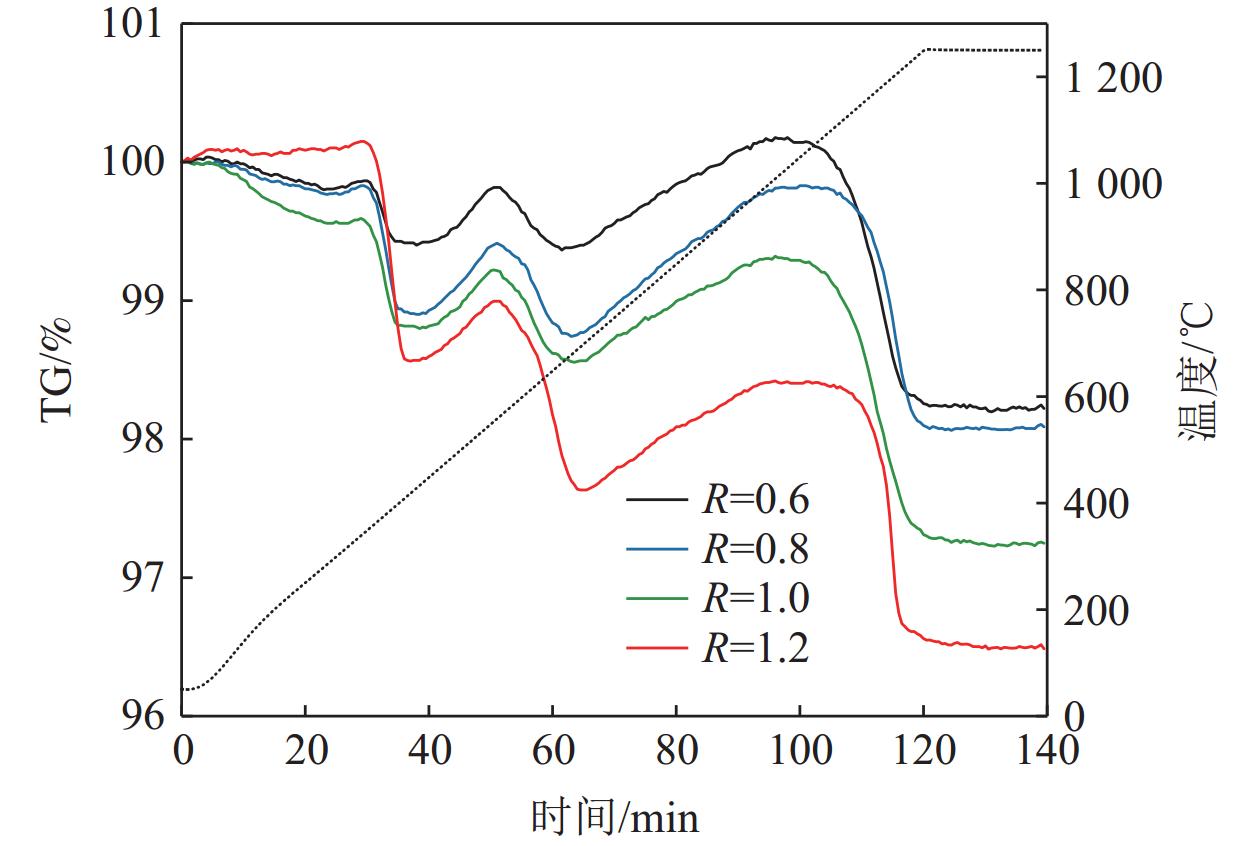

Abstract:In this article, the effect of basicity on the compressive strength of barium bearing pellets was studied by adding a certain proportion of Ca(OH)2 with barium bearing magnetite concentrate powder and bentonite as raw materials. The consolidation mechanism of barium bearing pellets was analyzed by means of X-ray diffrotometer, scanning electron microscope-energy spectrometer and synchronous thermal analyzer. The results show that with the increase of basicity, the compressive strength of barium-bearing pellets increases first and then decreases, and reaches the maximum value of 3 292.8 N/ pellet when the basicity is 0.8, while the porosity of pellets shows an opposite trend and the minimum porosity is 21.6%. CaO decomposed by Ca(OH)2 reacts with Fe2O3 and SiO2 respectively to form CaFe2O4 and CaSiO3, and a small amount of Ca2FeO4 fills the pores to reduce the porosity of the pellets and increase the compressive strength. BaSO4 is decomposed into BaO and SO2, and BaO reacts with Fe2O3 to form BaFe2O4. SO2 gas escapes from inside the pellet, reducing the compactness of the pellet matrix, resulting in loose and porous microstructure of the pellet.
-
Key words:
- Basicity /
- Magnetite /
- Pelletizing bearing barium /
- Compressive strength /
- Microstructure
-
-
表 1 原料化学成分/%
Table 1. Chemical composition of raw materials
TFe FeO SiO2 CaO Al2O3 MgO MnO BaO K2O Na2O ZnO TiO2 S P 烧损率 62.38 25.74 5.23 0.96 1.31 3.15 1.28 1.51 0.07 0.022 0.03 0.24 0.44 0.02 1.85
下载: 导出CSV
表 2 膨润土物理性能
Table 2. Main physical properties of bentonite
性能指标 胶质价
/(mL/15 g)膨胀指数
/(mL/(2 g)2 h吸水率/% 吸兰量/(g/100 g) 蒙脱石/% 粒度/(-74μm含量%) 参数 99 40 256 32.46 73.44 98.6
下载: 导出CSV
表 3 球团原料配比
Table 3. Mixed ratio of raw materials
样品 铁矿粉/% 膨润土/% Ca(OH)2/% 碱度 1 95.27 2 2.73 0.6 2 94.01 2 3.99 0.8 3 92.79 2 5.21 1.0 4 91.59 2 6.41 1.2
下载: 导出CSV
-
[1] 龙防, 沈峰满, 陈伟, 等. 安钢高炉低烧结矿比例炉料结构合理配置的试验研究[J]. 炼铁, 2021, 40(3):21-25.LONG F, SHEN F M, CHEN W, et al. Pilot study on reasonable burden mix under low sinter ratio in Anyang steel′s BF[J]. Ironmaking, 2021, 40(3):21-25.
LONG F, SHEN F M, CHEN W, et al. Pilot study on reasonable burden mix under low sinter ratio in Anyang steel′s BF[J]. Ironmaking, 2021, 40(3):21-25.
[2] 乔红梅, 张建良, 王耀祖, 等. 国内外钙质碱性球团生产实践及发展趋势[J]. 钢铁研究学报, 2021, 33(10):1031-1039.QIAO H M, ZHANG J L, WANG Y Z, et al. Production practice and development trend of calcareous alkaline pellets around the world[J]. Journal of Iron and Steel Research, 2021, 33(10):1031-1039.
QIAO H M, ZHANG J L, WANG Y Z, et al. Production practice and development trend of calcareous alkaline pellets around the world[J]. Journal of Iron and Steel Research, 2021, 33(10):1031-1039.
[3] 王新东, 金永龙. 高炉使用高比例球团的战略思考与球团生产的试验研究[J]. 钢铁, 2021, 56(5):7-16.WANG X D, JIN Y L. Strategy analysis and testing study of high ratio of pellet utilized in Blast Furnace[J]. Steel, 2021, 56(5):7-16.
WANG X D, JIN Y L. Strategy analysis and testing study of high ratio of pellet utilized in Blast Furnace[J]. Steel, 2021, 56(5):7-16.
[4] 孙健宁, 刘小杰, 严照照, 等. 不同含量SiO2对邯郸球团质量的影响[J]. 矿产综合利用, 2021(1): 118-123.SUN J N, LIU X J, YAN Z Z, et al. Effect of different contents of SiO2 on the quality of pellets of Hanstell[J]. Multipurpose Utilization of Mineral Resources, 2020(4): 87-92.
SUN J N, LIU X J, YAN Z Z, et al. Effect of different contents of SiO2 on the quality of pellets of Hanstell[J]. Multipurpose Utilization of Mineral Resources, 2020(4): 87-92.
[5] 潘向阳, 龙跃, 李神子, 等. w(MgO)对熔剂性球团矿冶金性能的影响[J]. 钢铁, 2019, 54(10):17-22.PAN X Y, LONG Y, LI S Z et al. Effect of w(MgO) on metallurgical properties of flux pellets[J]. Steel, 2019, 54(10):17-22.
PAN X Y, LONG Y, LI S Z et al. Effect of w(MgO) on metallurgical properties of flux pellets[J]. Steel, 2019, 54(10):17-22.
[6] 王晓磊, 师学峰, 胡长庆, 等. 高硅镁质熔剂性球团焙烧试验研究[J]. 矿产综合利用, 2020(4):87-92.WANG X L, SHI X F, HU C Q, et al. Experimental study on roasting of high silica magnesium flux pellet[J]. Multipurpose Utilization of Mineral Resources, 2020(4):87-92.
WANG X L, SHI X F, HU C Q, et al. Experimental study on roasting of high silica magnesium flux pellet[J]. Multipurpose Utilization of Mineral Resources, 2020(4):87-92.
[7] 李晓波, 李孟土, 易陆杰, 等. 湛江球团配矿结构分析[J]. 烧结球团, 2018, 43(4):49-53.LI X B, LI M T, YI L J, et al. Analysis of proportioning structure of Zhanjiang pelletizing plant[J]. Sintering and Pelletizing, 2018, 43(4):49-53.
LI X B, LI M T, YI L J, et al. Analysis of proportioning structure of Zhanjiang pelletizing plant[J]. Sintering and Pelletizing, 2018, 43(4):49-53.
[8] 赵连达, 刘迎立, 苏鸿, 等. 添加赤铁矿对碱性球团性能的影响[J]. 中国冶金, 2021, 31(3):11-16.ZHAO L D, LIU Y L, SU H, et al. Effect of adding hematite on properties of alkaline pellets[J]. China Metallurgy, 2021, 31(3):11-16.
ZHAO L D, LIU Y L, SU H, et al. Effect of adding hematite on properties of alkaline pellets[J]. China Metallurgy, 2021, 31(3):11-16.
[9] 刘卫星, 李杰, 杨爱民, 等. 碱度对镁质熔剂性球团矿强度的影响机理[J]. 钢铁, 2021, 56(1):28-36.LIU W X, LI J, YANG A M, et al. Influence mechanism of basicity on strength of magnesium fluxed pellets[J]. Steel, 2021, 56(1):28-36.
LIU W X, LI J, YANG A M, et al. Influence mechanism of basicity on strength of magnesium fluxed pellets[J]. Steel, 2021, 56(1):28-36.
[10] 张元波, 陈茜钧, 苏子键, 等. 碱度对高硅镁质球团矿质量影响的研究[J]. 烧结球团, 2020, 45(5):39-43+53.ZHANG Y B, CHEN Q J, SU Z J, et al. Research on effect of basicity on properties of high-silica magnesium pellets[J]. Sintering and Pelletizing, 2020, 45(5):39-43+53.
ZHANG Y B, CHEN Q J, SU Z J, et al. Research on effect of basicity on properties of high-silica magnesium pellets[J]. Sintering and Pelletizing, 2020, 45(5):39-43+53.
[11] Yang Z, Liu Z, Chu M, et al. Effect of basicity on metallurgical properties of fluxed pellets with high MgO content[J]. ISIJ International, 2021, 61(5):1431-1438. doi: 10.2355/isijinternational.ISIJINT-2020-445
[12] 李杰, 信自成, 杨爱民, 等. 碱度对镁质熔剂性球团性能的影响[J]. 钢铁, 2017, 52(7):35-41.LI J, XIN Z C, YANG A M, et al. Effect of basicity on quality of magnesium fluxed pellets[J]. Steel, 2017, 52(7):35-41.
LI J, XIN Z C, YANG A M, et al. Effect of basicity on quality of magnesium fluxed pellets[J]. Steel, 2017, 52(7):35-41.
[13] Li J, An H, Liu W, et al. Effect of basicity on metallurgical properties of magnesium fluxed pellets[J]. Journal of Iron and Steel Research International, 2020, 27(3):239-247. doi: 10.1007/s42243-019-00307-w
[14] 杨福. 碱度和MgO质量分数对球团抗压强度的影响[J]. 中国冶金, 2020, 30(6):19-23.YANG F. Effect of basicity and MgO mass fraction on compression strength of pellets[J]. China Metallurgy, 2020, 30(6):19-23.
YANG F. Effect of basicity and MgO mass fraction on compression strength of pellets[J]. China Metallurgy, 2020, 30(6):19-23.
[15] 朱德庆, 高子富, 潘建, 等. 碱度及MgO质量分数对球团焙烧及冶金性能的影响[J]. 中南大学学报(自然科学版), 2013, 44(10):3963-3970.ZHU D Q, GAO Z F, PAN J, et al. Effect of pellet basicity and MgO content on roasting and metallurgical properties of pellets[J]. Journal of Central South University (Science and Technology), 2013, 44(10):3963-3970.
ZHU D Q, GAO Z F, PAN J, et al. Effect of pellet basicity and MgO content on roasting and metallurgical properties of pellets[J]. Journal of Central South University (Science and Technology), 2013, 44(10):3963-3970.
[16] 巨建涛, 刘文果, 邢相栋, 等. BaSO4对球团矿抗压强度的影响[J]. 过程工程学报, 2019, 19(3):567-574.JU J T, LIU W G, XING X D, et al. Effect of BaSO4 on the compressive strength of pellets[J]. The Chinese Journal of Process Engineering, 2019, 19(3):567-574. doi: 10.12034/j.issn.1009-606X.218242
JU J T, LIU W G, XING X D, et al. Effect of BaSO4 on the compressive strength of pellets[J]. The Chinese Journal of Process Engineering, 2019, 19(3):567-574. doi: 10.12034/j.issn.1009-606X.218242
[17] 任允芙, 凤麟, 蒋烈英. 酒钢含重晶石铁精矿在烧结过程中重晶石分解机理及对烧结矿质量影响的研究[J]. 烧结球团, 1985(1):7-14+129-130.REN Y F, FENG L, JIANG L Y. Study on decomposition mechanism of barite and its influence on sinter quality of Barite-bearing iron concentrate of JISCO during sintering[J]. Sintering and Pelletizing, 1985(1):7-14+129-130.
REN Y F, FENG L, JIANG L Y. Study on decomposition mechanism of barite and its influence on sinter quality of Barite-bearing iron concentrate of JISCO during sintering[J]. Sintering and Pelletizing, 1985(1):7-14+129-130.
-
