摘要:

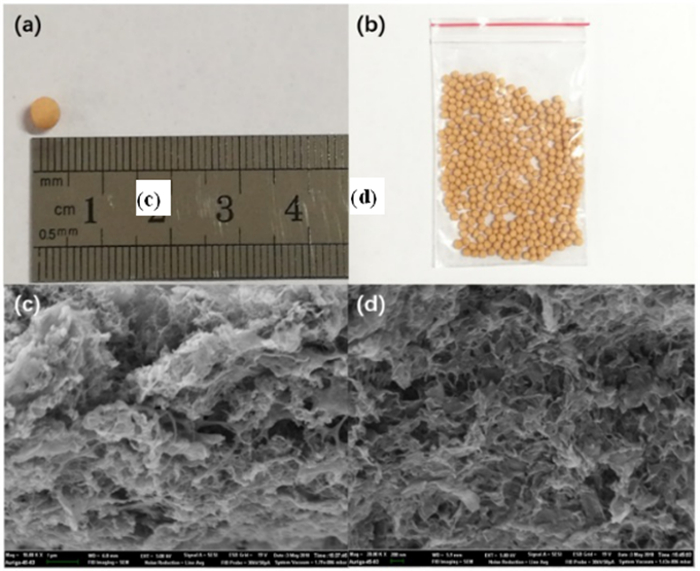

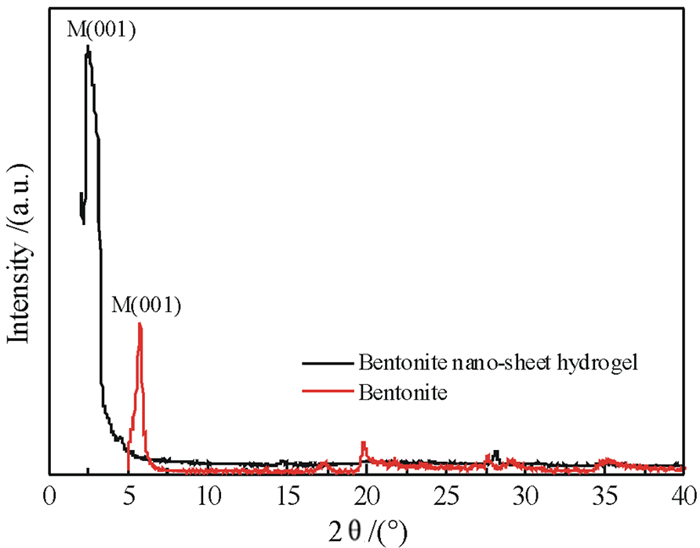

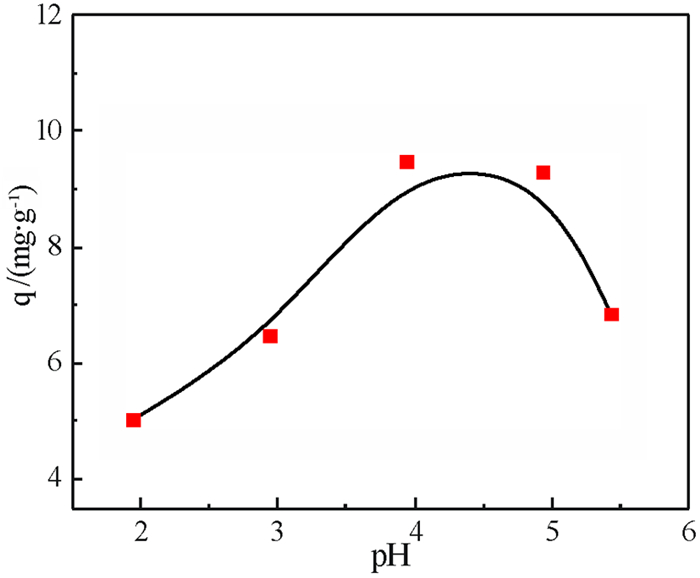

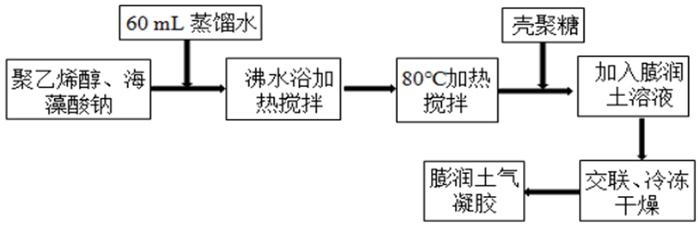

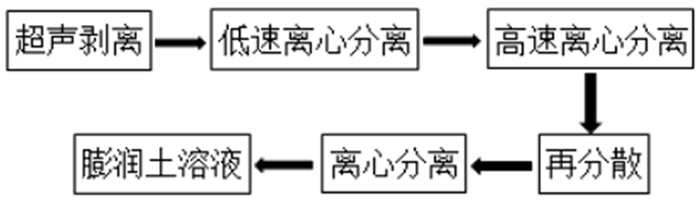

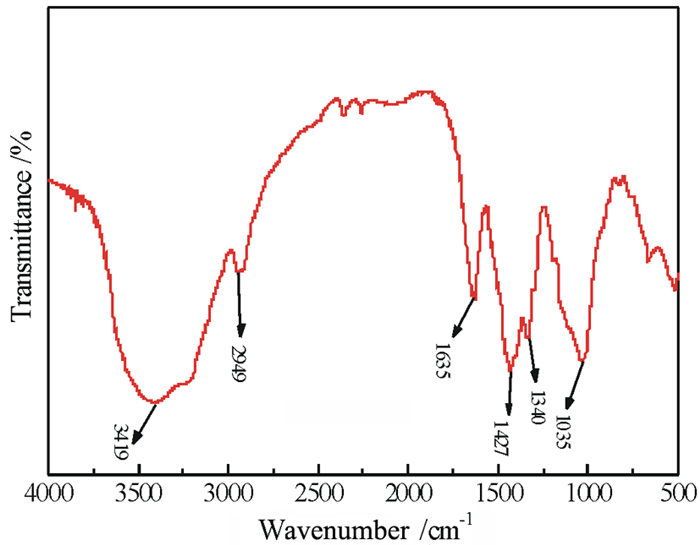

以膨润土为原料采用超声剥离-自组装-冷冻干燥法制备了膨润土纳米片基水凝胶，并采用X射线衍射仪（XRD）、傅立叶变换红外光谱仪（FT-IR）、场发射扫描电子显微镜（SEM）、比表面积测试（BET）对制备的凝胶进行表征。表征结果显示该凝胶属于微孔和介孔共存材料，且保留了膨润土纳米片表面的含氧官能团。铅离子吸附试验表明：该凝胶吸附铅离子的最佳pH值范围为4~5，吸附过程较好的符合拟二级动力学方程和Langmuir等温吸附模型，且吸附过程比较容易进行。此外，与膨润土或膨润土基复合材料相比，膨润土纳米片基水凝胶具有丰富的孔隙结构和较大的最大饱和吸附量，在废水处理方面具有较好的应用前景。
Abstract:Bentonite nanosheet based hydrogel was prepared by ultrasonic stripping, self-assembly and freeze-drying with bentonite as raw material. The hydrogel was characterized by X-ray diffraction (XRD), fourier transform infrared spectrometer (FT-IR), field emission scanning electron microscopy (SEM) and specific surface area measurements (BET). The characterization results showed that the hydrogel was the microporous and mesoporous material coexisting materials keeping the oxygen-containing functional groups on the surface of bentonite nanosheet. The lead ion adsorption test showed that the maximum adsorption capacity was obtained at the pH range of 4 to 5. The adsorption process was in good agreement with the pseudo-second-order kinetic equation and Langmuir isothermal adsorption model, and the adsorption process was relatively easy to carry out. In addition, compared with bentonite or bentonite-based composites, bentonite nanosheet based hydrogel had rich pore structure and large maximum saturated adsorption capacity. Therefore, it has good application prospects in wastewater treatment.
-
Key words:
- bentonite /
- bentonite nano-sheet based hydrogel /
- lead ion /
- adsorption /
- wastewater treatment
-
-
表 1 试验所用试剂列表
Table 1. Lists of reagents used in the experiments
Sample names Specifications Manufacturer Poly (vinyl alcohol) Alcoholysis degree: 98% 99% Shanghai Aladdin Bio-Chem Technology Co., LTD Sodium alginate Chemically pure Tianjin Kemiou Chemical Reagent Co., Ltd. chitosan Biochemical reagents Sinopharm Chemical Reagent Co., Ltd Sodium hydroxide Analysis of pure Luoyang Chemical Reagent Factory Nitric acid Analysis of pure Luoyang Chemical Reagent Factory Anhydrous calcium chloride Analysis of pure Tianjin Kemiou Chemical Reagent Co., Ltd. Boric acid Excellent level of pure Sinopharm Chemical Reagent Co., Ltd Lead nitrate Analysis of pure Tianjin Kemiou Chemical Reagent Co., Ltd.
下载: 导出CSV
表 2 试验仪器
Table 2. Lists of instruments and equipments used in the experiments
Instrument name Type/specification Manufacturer Atomic absorption spectrophotometer TAS-990 Beijing's General Instrument Co., LTD High-speed centrifuge JW-2017H Anhui Jia Instrument Equipment Co., LTD Small vertical mine dust tester M5L Yancheng ranch yu da Experiment Instrument Plant Intelligent magnetic stirrer ZNL-BS Gongyi city Instrument Co., LTD in China Desktop full temperature oscillator TQZ-312 Shanghai jing macro Laboratory Equipment Co., LTD Ultrasonic cell crushing apparatus JY92-IIN Ningbo xingzhi Biotechnology Co., LTD Infrared spectrometer Nicolet iS5 The game's fly the world's Science and Technology Co., LTD Freeze drying machine SJIA-5FE Ningbo Jia Instrument Co., LTD Ultrasonic cleaning machine SYU-10-200D Zhengzhou Born yuan Instrument Co., LTD Electronic balance FA2004B Shanghai on Instrument Co., LTD pH tester PHS-3E Shanghai on Instrument Co., LTD
下载: 导出CSV

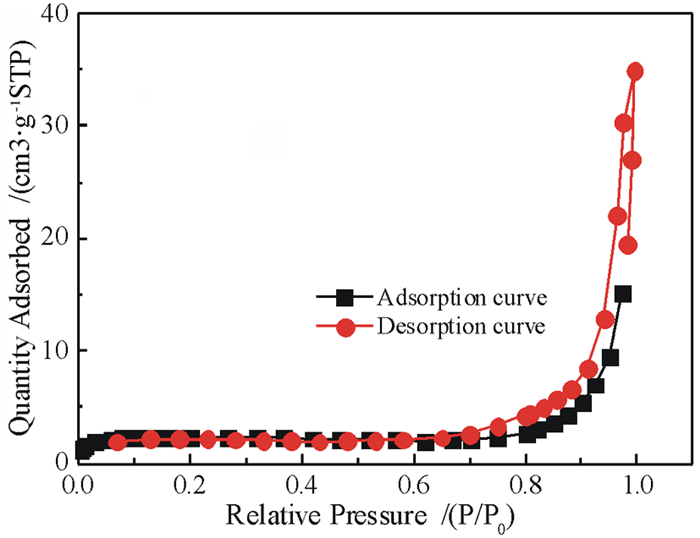

表 3 膨润土纳米片水凝胶的孔性质
Table 3. Pore properties of the bentonite nanosheet based hydrogel
Sample SBET/(m2·g-1) Pore volume /(cm3·g-1) Average pore diameter /nm Hydrogel 6.866 5 0.054 568 31.479 98
下载: 导出CSV

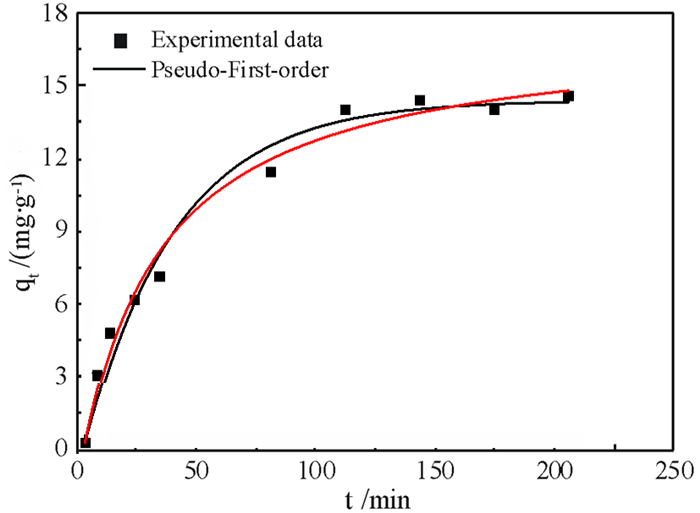

表 4 凝胶吸附铅离子拟一级和拟二级吸附动力学参数
Table 4. Kinetic parameters of the pseudo-first- and pseudo-second-order adsorption forthe adsorption of Pb2+ on the bentonite nanosheet based hydrogel
pseudo-first-order kinetics pseudo-second-order kinetics α1 (min-1) qe(mg/g) R2 α2 (min-1) qe(mg/g) R2 0.027 32 13.59 0.973 9 0.001 82 16.37 0.982 2
下载: 导出CSV

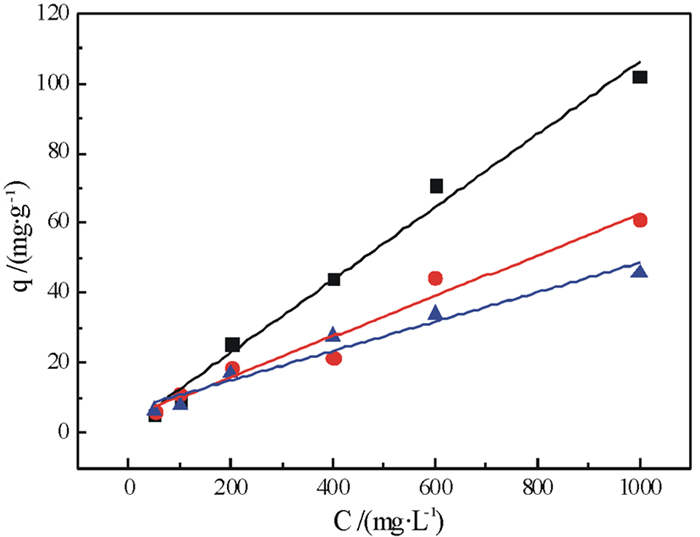

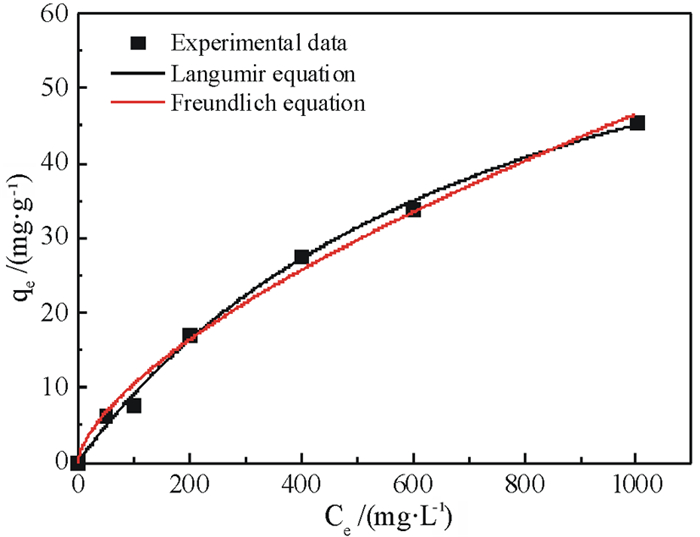

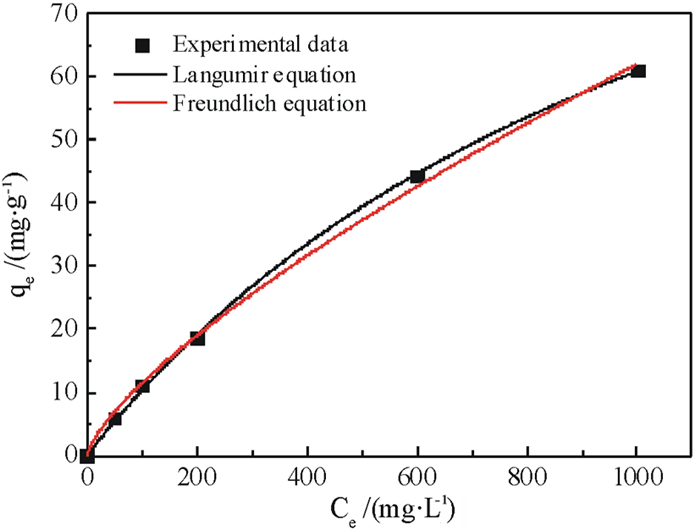

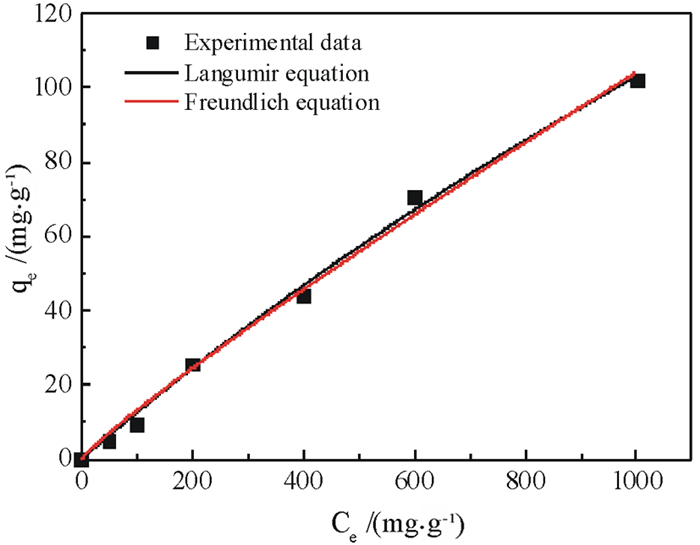

表 5 凝胶对铅离子吸附等温线模型常数及相关参数
Table 5. Adsorption isotherm model constants and related parameters of Pb2+ by the bentonite nanosheet based hydrogel
Temperature Langmuir model Freundlich model qm(mg/g) b(mg/L) R2 k n R2 20 ℃ 524.60 2.45×10-4 0.995 5 0.21 1.11 0.993 2 30 ℃ 133.97 8.33×10-4 0.999 4 0.39 1.36 0.998 0 40 ℃ 80.63 1.27×10-3 0.995 6 0.53 1.54 0.990 6
下载: 导出CSV
-
[1] 沈永昌.中国经济增长与环境污染关系的实证研究[D].蚌埠, 安徽财经大学, 2015.
[2] Liu L, Li Y, Liu X, Zhou Z, etc. Chelating stability of an amphoteric chelating polymer flocculant with Cu(Ⅱ), Pb(Ⅱ), Cd(Ⅱ), and Ni(Ⅱ)[J]. Spectrochimica acta. Part A, Molecular and biomolecular spectroscopy, 2014(118):765-75.
[3] O'Connell D W, Birkinshaw C, O'Dwyer T F. Heavy metal adsorbents prepared from the modification of cellulose:a review[J]. Bioresource technology, 2008, 99:6709-24. doi: 10.1016/j.biortech.2008.01.036
[4] 刘金燕, 刘立华, 薛建荣, 等.重金属废水吸附处理的研究进展[J].环境化学, 2018(37):2016-2024. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=hjhx201809016
[5] 邵利芬, 杨玉杰, 姚曙光, 等.含铜电镀废水处理技术研究进展[J].工业用水与废水, 2007(3):13-15, 39. doi: 10.3969/j.issn.1009-2455.2007.03.004
[6] 王端鑫.有机膨润土在废水处理中的应用及其进展[J].资源节约与环保, 2014(2):128. http://d.old.wanfangdata.com.cn/Periodical/zyjyyhb201402103
[7] 余丽秀, 邵晨, 朱进, 等.膨润土开发利用水平评估影响因素探讨[J].矿产保护与利用, 2018, 218(6):26-29, 36. http://kcbh.cbpt.cnki.net/WKD/WebPublication/paperDigest.aspx?paperID=26b6bf5c-8aa5-4310-a396-676b07183e66
[8] 郑水林, 孙志明.非金属矿物材料[M].化学工业出版社, 2007.
[9] Peng W, Li H, Liu Y, etc. Comparison of Pb(Ⅱ) adsorption onto graphene oxide prepared from natural graphites:Diagramming the Pb(Ⅱ) adsorption sites[J]. Applied surface science, 2016(364):620-627.
[10] Wang Q, Yang L, Jia F, etc. Removal of Cd (Ⅱ) from water by using nano-scale molybdenum disulphide sheets as adsorbents[J]. Journal of molecular liquids, 2018, 263:526-533. doi: 10.1016/j.molliq.2018.04.149
[11] Jia F, Wang Q, Wu J, etc. Two-dimensional molybdenum disulfide as a superb adsorbent for removing Hg2+ from water[J]. ACS sustainable chemistry & engineering, 2017(5):7410-7419. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=4870297da31a9a3441fe2b9ec44e4491
[12] Zhang X, Yi H, Bai H Y, etc. Correlation of montmorillonite exfoliation with interlayer cations in the preparation of two-dimensional nanosheets[J]. Rsc Advances, 2017(7):41471-41478. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=a8676e0da5d540dc53a3aa4de6bf4a5c
[13] Zhou W J, Guan W J, Lu C, Natural montmorillonite nanosheet colloid-catalyzed hydrogen peroxide ultra-weak chemiluminescence[J]. Rsc advances, 2014(4):15377-15380.
[14] Otsu K, Suzuki S, Miyayama M. Anisotropy in lithium ion conduction in laminated thin films of montmorillonite nanosheets[J]. Semiconductor science and technology, 2014(29):064011. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=b3d10fefa030a20d677a767717c46477
[15] Cui L, Wang Y, Gao L, etc. EDTA functionalized magnetic graphene oxide for removal of Pb(Ⅱ), Hg(Ⅱ) and Cu(Ⅱ) in water treatment: Adsorption mechanism and separation property[J]. Chemical engineering journal, 2015, 281:1-10. doi: 10.1016/j.cej.2015.06.043
[16] 吴宁梅.新型水凝胶的制备及其对重金属的吸附研究[D].南京, 南京大学, 2013.
http://cdmd.cnki.com.cn/Article/CDMD-10284-1013191634.htm [17] Wang X, Li R, Liu J, etc. Melamine modified graphene hydrogels for the removal of uranium(Ⅵ) from aqueous solution[J]. New journal of chemistry, 2017(41):10899-10907.
[18] Kang S C, Zhao Y L, Wang W, etc. Removal of methylene blue from water with montmorillonite nanosheets/chitosan hydrogels as adsorbent[J]. Applied surface science, 2018, 448:203-211. doi: 10.1016/j.apsusc.2018.04.037
[19] 李玉洁, 李雨佳, 李红芬, 等.膨润土负载壳聚糖对水中Cu(Ⅱ)的吸附特性研究[J].矿产保护与利用, 2019(39):84-89. http://kcbh.cbpt.cnki.net/WKD/WebPublication/paperDigest.aspx?paperID=f925d499-8a20-40d9-907a-2a73c617bda3
[20] 邓林.镁铝水滑石基复合材料吸附去除水中铬(Ⅵ)、磷酸盐的研究[D].长沙: 湖南大学, 2015.
http://cdmd.cnki.com.cn/Article/CDMD-10532-1015734180.htm -
