Saturated hydrocarbon geochemical characteristics of the oil sand from YD1 well in Jinyang Basin and its significance for oil and gas exploration
-
摘要:
在中国地质调查局沈阳地质调查中心实施的“羊D1”井的中侏罗统髫髻山组火山岩中见多处油气显示，取得了油气新发现。对该井已发现的2件油砂样品中的原油采用气相色谱-质谱技术（GC-MS）进行了分析测试，结果显示，2个油砂样品的地球化学特征一致，表现为链烷烃呈现出单峰态的分布，主峰碳数分别为C21和C22，无明显奇碳数优势，姥植比值低；萜类化合物表现为，三环萜烷以C23为主峰呈正态分布，C24四环萜烷与C26三环萜烷丰度相当，伽马蜡烷含量较高；甾类化合物表现为规则甾烷相对含量关系为C27 > C29 > C28，以C27甾烷占优势的不对称“V”形分布。这些指标总体指示，原油为成熟油，对应烃源岩沉积于偏还原性的湖相环境，母质来源主要为藻类等低等水生生物，陆源高等植物也具有一定贡献。通过和周边的北票组烃源岩进行油岩对比研究发现，油砂样品中的原油可能来自于盆地内下伏的下侏罗统北票组烃源岩的贡献。研究结果说明，北票组在金羊盆地分布广泛，其烃源岩可能具有较好的生油潜力，金羊盆地是一个具有勘探潜力的含油气盆地。

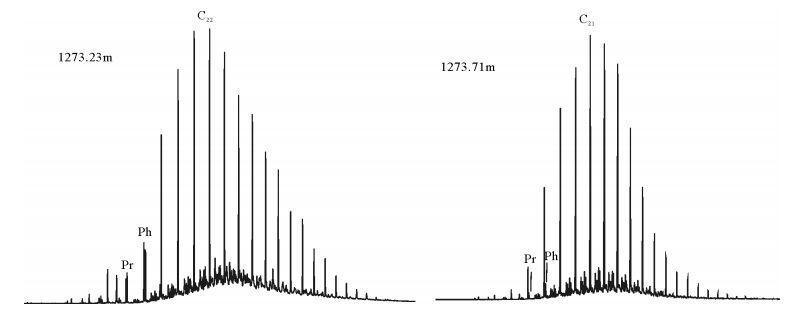

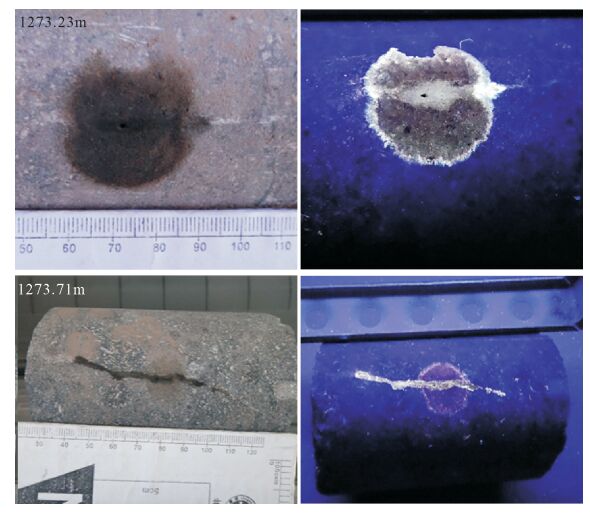

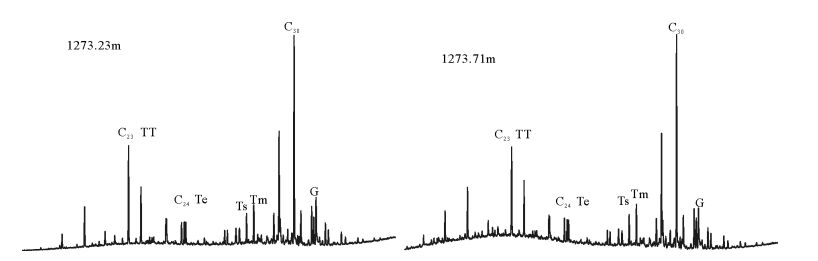

Abstract:Recently researchers from Shenyang Geological Survey of CGS made several new discoveries in geological well YD1 in Jinglingsi-Yangshan basin (Jinyang Basin). During the drilling of YD1 the authors detected several oil and gas showings in the fractures of the drilling core in Mid-Jurassic Tiaojishan Formation (J2t) which was mainly composed of intermediate igneous rocks. The characteristics of biomarkers from YD1 oil sand were analyzed by the method of gas chromatography and gas chromatography mass spectrometry (GC, GC-MS). The results show that the two oil sand samples have similar geochemical characteristics:the n-alkane distribution exhibits one sole peak pattern, and the dominant peaks are nC21 and nC22 separately; there is no clear odd or even carbon number predominance for the n-alkanes, and thus the carbon preference index (CPI) is only slightly higher than 1; the samples have low Pr/Ph ratios. The terpene is characterized by the normal distribution of C23 tricyclic terpene and similar abundance of C24 tetracy-clic terpene and C26 tricyclic terpene, with a relatively abundant value of gammacerane. The regular steranes are dominated by the C27-steranes, and their relative abundance is in the order of C27 > C29 > C28, exhibiting the "V" distribution pattern. These biomarkers' characteristics indicate that the source rocks are matured and predominated mainly by planktonic/algal organic matter. The source rocks were deposited in a lacustrine environment with a high-salinity stratified water column and anoxic conditions. The oil-source correlation results showed that the crude oil from the samples was possibly derived from the source rock in Early Jurassic Beipiao Formation (J1b). The results indicate that the source rock from Beipiao Formation is widely spread in Jinyang Basin and has good oil and gas potential, and hence Jinyang Basin is a petroliferous basin with good potential for oil and gas exploration.
-
Key words:
- Jinyang Basin /
- YD1 well /
- oil sand /
- biomarker /
- oil-source rock correlation
-
-
表 1 羊D1井髫髻山组油砂和金羊盆地北票组烃源岩饱和烃色谱参数
Table 1. Saturated hydrocarbons gas chromatogram parameters of oil sand from Tiaojishan Formation in YD1 and source rock from Beipiao Formation in Jinyang Basin
样品号 采样位置 样品类型 CPI OEP ∑nC21-/∑nC22+ （nC21+nC22)/
（nC28+nC29)Pr/nC17 Ph/nC18 Pr/Ph 主峰碳数 YD1-1273.23 羊D1井 含油油砂 1.16 1.03 0.47 2.68 2.77 1.45 0.73 C22 YD1-1273.71 羊D1井 含油油砂 1.28 1.02 0.84 15.99 0.36 0.19 0.45 C21 15WL-S5 卧龙剖面 烃源岩 1.13 1.08 0.43 1.65 0.60 1.22 0.63 C23 15WL-S8 卧龙剖面 烃源岩 1.13 1.08 0.30 0.85 0.65 1.29 0.66 C23 15WL-S10 卧龙剖面 烃源岩 1.14 1.08 0.38 1.32 0.67 1.29 0.65 C23 15WL-S12 卧龙剖面 烃源岩 1.14 1.07 0.50 2.13 0.62 1.17 0.61 C23 15WL-S12-1 卧龙剖面 烃源岩 1.19 1.14 0.54 1.00 0.09 0.10 1.04 C25 15WL-S14 卧龙剖面 烃源岩 1.2 1.13 0.49 1.02 0.06 0.06 1.15 C25 15WL-S16 卧龙剖面 烃源岩 1.09 1.07 2.86 7.85 0.05 0.06 0.65 C10 15XGG-S1 西坤头营子剖面 烃源岩 1.16 1.07 1.33 3.58 0.49 0.12 3.91 C19 15XGG-S3 西坤头营子剖面 烃源岩 1.21 1.12 1.20 3.09 0.51 0.13 3.95 C19 15XGG-S5 西坤头营子剖面 烃源岩 1.18 1.11 1.58 4.96 0.36 0.08 4.15 C18 15XGG-S8 西坤头营子剖面 烃源岩 1.18 1.12 1.39 3.86 0.33 0.10 3.45 C19 15XGG-S10 西坤头营子剖面 烃源岩 1.16 1.06 1.44 4.66 0.41 0.11 3.66 C19 15XGG-S11 西坤头营子剖面 烃源岩 1.19 1.09 1.34 3.85 0.45 0.11 3.93 C19 15XGG-S13 西坤头营子剖面 烃源岩 1.17 1.07 1.49 4.54 0.30 0.09 3.14 C19
下载: 导出CSV
表 2 羊D1井中油砂及金羊盆地北票组烃源岩生标参数
Table 2. Biomarker parameters in the oil sand from YD1 well and source rock from Beipiao Formation in Jinyang Basin
样品号 采样位置 样品类型 伽马蜡烷/C30藿烷 Ts/Tm 甾烷C2920S/(20S+20R) 藿烷22S/
(22R+22S)C30莫烷/
C30藿烷YD1-1273.23 羊D1井 含油油砂 0.32 0.72 0.46 0.60 0.17 YD1-1273.71 羊D1井 含油油砂 0.27 0.77 0.44 0.56 0.17 15WL-S5 卧龙剖面 烃源岩 0.3 0.81 0.41 0.60 0.17 15WL-S8 卧龙剖面 烃源岩 0.28 0.81 0.42 0.57 0.16 15WL-S10 卧龙剖面 烃源岩 0.29 0.83 0.43 0.60 0.16 15WL-S12 卧龙剖面 烃源岩 0.28 0.82 0.43 0.60 0.16 15WL-S12-1 卧龙剖面 烃源岩 0.21 0.78 0.43 0.61 0.20 15WL-S14 卧龙剖面 烃源岩 0.18 0.81 0.43 0.63 0.20 15WL-S16 卧龙剖面 烃源岩 0.29 0.81 0.42 0.58 0.17 15XGG-S1 西坤头营子剖面 烃源岩 0.05 0.28 0.44 0.59 0.16 15XGG-S3 西坤头营子剖面 烃源岩 0.03 0.56 0.48 0.59 0.16 15XGG-S5 西坤头营子剖面 烃源岩 0.04 0.66 0.46 0.59 0.14 15XGG-S8 西坤头营子剖面 烃源岩 0.04 1.4 0.52 0.58 0.14 15XGG-S10 西坤头营子剖面 烃源岩 0.07 0.45 0.44 0.59 0.16 15XGG-S11 西坤头营子剖面 烃源岩 0.05 0.36 0.45 0.59 0.15 15XGG-S13 西坤头营子剖面 烃源岩 0.09 1.45 0.47 0.59 0.13
下载: 导出CSV
-
[1] 何保, 李茂丰, 刘颖鑫.金岭寺-羊山盆地北票组烃源岩特征[J].中国煤炭地质, 2008, 120(3):25-27. http://www.cnki.com.cn/Article/CJFDTOTAL-ZGMT200803007.htm
[2] 樊新杰. 金岭寺-羊山盆地石油地质条件分析与评价[D]. 辽宁工程技术大学硕士学位论文, 2003.
[3] 李永飞, 郜晓勇, 孙守亮, 等.辽西金羊盆地北票组泥页岩有机地球化学特征——以SZK01钻孔岩心为例[J].地质论评, 2015, 61(S):673-674. http://www.oalib.com/paper/4884149
[4] 何保, 付秋萍, 张亚明.辽西金羊盆地北票组烃源岩分布及有机质丰度[J].辽宁工程技术大学学报, 2006, 25(1):24-27. http://www.cnki.com.cn/Article/CJFDTOTAL-FXKY200601007.htm
[5] 张坤, 李永飞, 唐友军, 等.辽西金羊盆地北票组油砂饱和烃地球化学特征——以SZK02井为例[J].地质通报, 2015, 34(10):1929-1937. doi: 10.3969/j.issn.1671-2552.2015.10.017 http://dzhtb.cgs.cn/ch/reader/view_abstract.aspx?flag=1&file_no=20151016&journal_id=gbc
[6] 张坤. 辽西金羊盆地北部北票组烃源岩地球化学特征及油砂成因研究[D]. 长江大学硕士学位论文, 2016.
[7] 李永飞, 陈树旺.辽西地区金岭寺-羊山盆地油气资源调查新发现[J].地质通报, 2014, 33(9):1463-1464. http://dzhtb.cgs.cn/ch/reader/view_abstract.aspx?flag=1&file_no=20140922&journal_id=gbc
[8] 甄甄, 李永飞, 郜晓勇, 等.金羊盆地SZK01井下侏罗统北票组沉积相及其有机质特征[J].世界地质, 2016, 35(1):207-215. http://www.cnki.com.cn/Article/CJFDTOTAL-SJDZ201601021.htm
[9] 唐友军, 陈践发.内蒙古西部额济纳旗苦水沟地区下石炭统白山组烃源岩分子化石的特征[J].地质通报, 2011, 30(6):888-894. http://dzhtb.cgs.cn/ch/reader/view_abstract.aspx?flag=1&file_no=20110609&journal_id=gbc
[10] 蒋兴超, 陈树旺, 唐友军, 等.内蒙古突泉盆地ZK-WJT钻井下侏罗统红旗组生烃潜力[J].地质通报, 2013, 32(8):1236-1242. http://dzhtb.cgs.cn/ch/reader/view_abstract.aspx?flag=1&file_no=20130809&journal_id=gbc
[11] 卢双舫, 张敏.油气地球化学[M].北京:石油工业出版社, 2008.
[12] Peters K E, Walters C C, Moldowan J M. The biomarker guide, Volume 2, Biomarkers and isotopes in petroleum exploration and earth history[M]. Cambridge:Cambridge University Press, 2005:475-1155.
[13] 梅博文, 刘希江.我国原油中异戊间二烯烷烃的分布及其与地质环境的关系[J].石油与天然气地质, 1980, 1(2):99-115. doi: 10.11743/ogg19800203
[14] Ten Haven H L, De Leeuw J W, Schenck P A. Organic geo-chemical studies of a Messinian evaporitic basin, northern Apen-nines (Italy) Ⅰ:Hydrocarbon biological markers for a hypersaline environment[J]. Geochimica et Cosmochimica Acta, 1985, 49(10):2181-2191. doi: 10.1016/0016-7037(85)90075-4
[15] Damsté J S S, Kenig F, Koopmans M P, et al. Evidence for gam-macerane as an indicator of water column stratification[J]. Geochim-ica et Cosmochimica Acta, 1995, 59(9):1895-1900. doi: 10.1016/0016-7037(95)00073-9
[16] Schwark L, Vliex M, Schaeffer P. Geochemical characterization of Malm Zeta laminated carbonates from the Franconian Alb, SWGermany (Ⅱ)[J]. Organic Geochemistry, 1998, 29(8):1921-1952. doi: 10.1016/S0146-6380(98)00192-2
[17] 陈义才, 沈忠民, 罗小平.石油与天然气有机地球化学[M].北京:科学出版社, 2007:1-275.
[18] Riboulleau A, Schnyder J, Riquier L, et al. Environmental change during the Early Cretaceous in the Purbeck-type Durlston Bay sec-tion (Dorset, Southern England):a biomarker approach[J]. Organic Geochemistry, 2007, 38(11):1804-1823. doi: 10.1016/j.orggeochem.2007.07.006
-
