DISTRIBUTION OF THE PRESENT STRESS IN LOW PERMEABILITY OILFIELD OF BOZHONG 25-1 AND ITS EFFECT ON DEVELOPMENT
-
摘要:

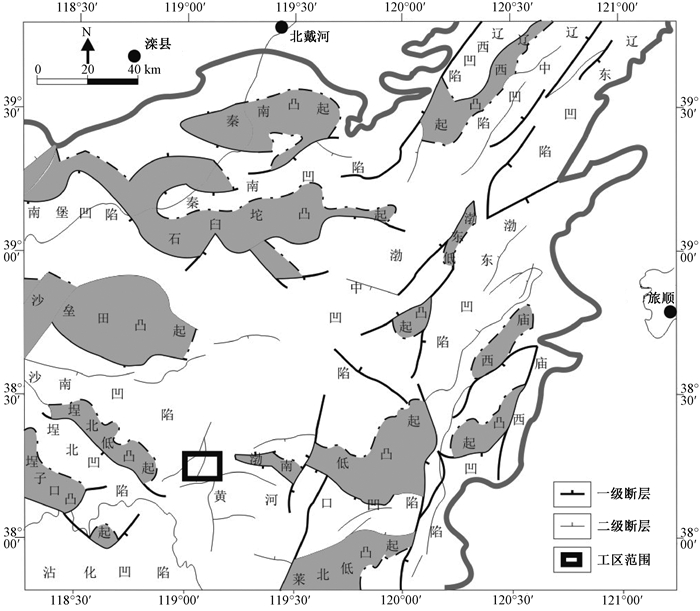

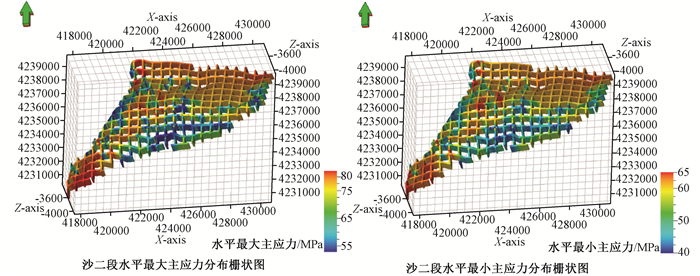

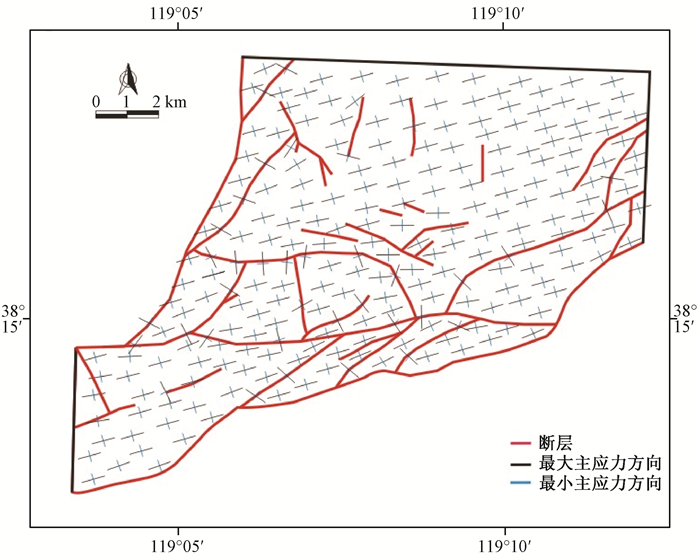

利用有限元方法, 对渤中25-1低渗透油田现今地应力状态进行数值模拟研究, 并结合低渗透储层地质特征, 分析地应力对油田开发的影响。数值模拟结果表明, 渤中25-1低渗透油田沙二和沙三段的现今地应力为压应力, 以北东东—南西西向为水平最大主应力的主要优势方位, 地应力在平面上受断层、构造起伏和沉积微相控制明显。根据地应力状态, 分析研究区的人工压裂裂缝为垂直裂缝。在远离断层的断块中部, 人工压裂缝的展布方向主要为北东东—南西西方向; 在断层附近, 由于水平最大主应力方向发生偏转, 人工压裂缝的延伸方向也会发生一定偏转, 部署开发井网时需要根据断层附近地应力的实际分布规律进行相应调整。
Abstract:Based on the finite element method, numerical simulation on the state of present stress in Bozhong 25-1 oilfield which is the first low permeability oilfield carried out to be developed by CNOOC is studied. Combined with the geological characteristics, the impact of the stress on development is analyzed. It is showed that the stresses in the second and the third member of Shahezi Formation are pressure stresses and the direction of the maximum principle stress is mainly NEE-SWW. The stress is controlled by fault, structural relief and sedimentary microfacies on the plane. According to the state of the stress, the artificial fractures are vertical fracture in this area; the direction of the stress is seriously deflected near the fault, which causes the deflection of the extension direction of artificial fractures. Therefore, some adjustments should be made near the fault based on the actual distribution of stress, when the development well patterns are arrangement.
-
-
表 1 地应力大小数值模拟结果检验
Table 1. Comparative the simulation results and principal stress calculated by logging data
井号 实测水平最大主应力/MPa 实测水平最小主应力/MPa 数值模拟最大主应力/MPa 数值模拟最小主应力/MPa 最大主应力误差/% 最小主应力误差/% BZ25-1-A13 70.68 55.91 70.91 52.65 0.33 5.83 BZ25-1-A4 77.91 63.00 78.34 62.06 0.55 1.49 BZ25-1-A20 76.07 60.60 75.69 58.98 0.50 2.67 BZ25-1-A22 82.63 61.40 80.07 61.36 3.10 0.07 BZ25-1-C13 67.85 61.50 71.68 53.62 5.64 12.81 BZ25-1-C125 96.41 70.30 88.04 70.86 8.68 0.80
下载: 导出CSV
表 2 地应力方位数值模拟结果检验
Table 2. Comparative the simulation results and the orientations of principal stress by measurements
井号 实测水平最大主应力方位/(°) 数值模拟主应力方位/(°) 绝对误差/(°) 相对误差/% BZ25-1-1 60 59 1 1.7 BZ25-1-3 50 54 4 8.0 BZ25-1-4 60 67 7 11.7 BZ25-1-5 80 76 4 5.0 BZ25-1-A13 80 83 3 3.8
下载: 导出CSV
-
[1] 景锋, 盛谦, 张勇慧.我国原位地应力测量与地应力场分析研究进展[J].岩土力学, 2011, 32(S2):51~58. http://www.cnki.com.cn/Article/CJFDTOTAL-YTLX2011S2008.htm
JING Feng, SHENG Qian, ZHANG Yong-hui. Study advance on in-site geostress measurement and analysis of initial geostress field in China [J]. Rock and Soil Mechanics, 2011, 32(S2): 51~58. http://www.cnki.com.cn/Article/CJFDTOTAL-YTLX2011S2008.htm
[2] 谢润成, 周文, 邓虎成, 等.现今地应力场特征评价一体化研究[J].石油钻采工艺, 2008, 30(4):32~35. http://www.cnki.com.cn/Article/CJFDTOTAL-SYZC200804014.htm
XIE Run-cheng, ZHOU Wen, DENG Hu-cheng, et al. Integrated research methods of in-situ stress field characteristics [J]. Oil Drilling and Production Technology, 2008, 30(4): 32~35. http://www.cnki.com.cn/Article/CJFDTOTAL-SYZC200804014.htm
[3] 曾联波, 肖淑蓉, 罗安湘.陕甘宁盆地靖安油田现今应力场三维有限元数值模拟及其开发意义[J].地质力学学报, 1998, 4(3):58~63. http://journal.geomech.ac.cn/ch/reader/view_abstract.aspx?flag=1&file_no=19980334&journal_id=dzlxxb
ZENG Lian-bo, XIAO Shu-rong, LUO An-xiang. The three-dimensional finite element numerical simulation of modern sress field and its significance in the oil development of the Jing'an area in the central Shaanxi-Gansu-Ningxia basin [J]. Journal of Geomechanics, 1998, 4(3): 58~63. http://journal.geomech.ac.cn/ch/reader/view_abstract.aspx?flag=1&file_no=19980334&journal_id=dzlxxb
[4] 曾联波, 田崇鲁.构造应力场与低渗透油田开发[J].石油勘探与开发, 1998, 25(3):91~93. http://www.cnki.com.cn/Article/CJFDTOTAL-SKYK803.025.htm
ZENG Lian-bo, TIAN chong-lu. Tectonic stress field and the development of low permeability [J]. Petroleum Exploration and Development, 1998, 25(3): 91~93. http://www.cnki.com.cn/Article/CJFDTOTAL-SKYK803.025.htm
[5] James A T. Correlation of natural gas by use of carbon isotopic distribution between hydrocarbon components [J]. AAPG Bulletin, 1983, 67(7): 1176~1991. http://archives.datapages.com/data/bulletns/1982-83/data/pg/0067/0007/1150/1176.htm?q=%2BtextStrip%3Aalberta+textStrip%3Adevonian
[6] 曾联波, 漆家福.油气田开发阶段的构造地质学研究[J].地质科技情报, 2006, 25(4):15~20. http://www.cnki.com.cn/Article/CJFDTOTAL-DZKQ200604003.htm
ZENG Lian-bo, QI Jia-fu. Structural geology in stage of reservoir development [J]. Geological Science and Technology Information, 2006, 25(4): 15~20. http://www.cnki.com.cn/Article/CJFDTOTAL-DZKQ200604003.htm
[7] 杨玉卿, 潘福熙, 田洪, 等.渤中25-1油田沙河街组低渗透储层特征及分类评价[J].现代地质, 2010, 24(4):685~693. http://www.cnki.com.cn/Article/CJFDTOTAL-XDDZ201004008.htm
YANG Yu-qing, PAN Fu-xi, TIAN Hong, et al. Characteristics and Classification and Evaluation of Low Porosity and Permeability Reservoir in Shahejie Formation of BZ25-1 Oilfield [J]. Geoscience, 2010, 24(4): 685~693. http://www.cnki.com.cn/Article/CJFDTOTAL-XDDZ201004008.htm
[8] 邓运华, 李建平.渤中25-1油田勘探评价过程中地质认识的突破[J].石油勘探与开发, 2007, 34(6):646~652. http://www.cnki.com.cn/Article/CJFDTOTAL-SKYK200706003.htm
DENG Yun-hua, LI Jian-ping. Breakthroughs of geological concepts in exploration and evaluation of BZ25-1 field [J]. Petroleum Exploration and Development, 2007, 34(6): 646~652. http://www.cnki.com.cn/Article/CJFDTOTAL-SKYK200706003.htm
[9] 孙永河. 渤中坳陷新生代构造特征及其对油气运聚的控制[D]. 大庆: 大庆石油学院, 2008.
SUN Yong-he. Cenozoic structural characteristics and its control to migration and accumulation of hydrocarbon in Bozhong depression [D]. Daqing: Daqing Petroleum Institute, 2008.
[10] 朱守彪, 石耀霖.用遗传有限单元法反演川滇下地壳流动对上地壳的拖曳作用[J].地球物理学报, 2004, 47(2):232~239. http://www.cnki.com.cn/Article/CJFDTOTAL-DQWX200402008.htm
ZHU Shou-biao, SHI Yao-lin. Genetic algorithm finite element inversion of drag forces exerted by the lower grust on the upper crust in the Sichuan-Yunnan area [J]. Chinese Journal of Geophysics, 2004, 47(2): 232~239. http://www.cnki.com.cn/Article/CJFDTOTAL-DQWX200402008.htm
[11] 桑广森, 夏斌, 张胜利, 等.松辽盆地徐家围子三维构造应力场数值模拟研究[J].大地构造与成矿学, 2010, 34(2):196~203. http://www.cnki.com.cn/Article/CJFDTOTAL-DGYK201002007.htm
SANG Guang-sen, XIA Bin, ZHANG Sheng-li, et al. Numerical modeling of 3D tectonic stress field for the Xujiaweizi fault depression of Songliao basin [J]. Geotectonica et Metallogenia, 2010, 34(2): 196~203. http://www.cnki.com.cn/Article/CJFDTOTAL-DGYK201002007.htm
[12] 陈运平, 赵崇斌, 林舸.深部岩石力学性质及其在大陆构造变形过程研究中的作用[J].大地构造与成矿学, 2008, 32(3):276~284. http://www.cnki.com.cn/Article/CJFDTOTAL-DGYK200803004.htm
CHEN Yun-ping, ZHAO Chong-bin, LIN Ge. Mechanical properties of deep earth rocks and their roles in the investigation of continental deformation processes [J]. Geotectonica et Metallogenia, 2008, 32(3): 276~284. http://www.cnki.com.cn/Article/CJFDTOTAL-DGYK200803004.htm
[13] 宋胜利, 吴田忠.ANSYS曲壳模型计算复杂断块现今地应力场[J].石油钻采工艺, 2004, 26(5):13~15. http://www.cnki.com.cn/Article/CJFDTOTAL-SYZC200405004.htm
SONG Sheng-li, WU Tian-zhong. Determining the crustal stress field using ANSYS curved shell model [J]. Oil Drilling and Production Technology, 2004, 26(5): 13~15. http://www.cnki.com.cn/Article/CJFDTOTAL-SYZC200405004.htm
[14] 王双喜, 宋惠珍, 刘洁.塔里木盆地构造应力场的数值模拟及其对油气聚集的意义[J].地震地质, 1990, 21(3):268~273. http://www.cnki.com.cn/Article/CJFDTOTAL-DZDZ199903010.htm
WANG Shuang-xi, SONG Hui-zhen, LIU Jie. Numerical modeling of tectonic stress field for Tarim Basin and its implication to oil-gas accumulation [J]. Seismology and Geology, 1990, 21(3): 268~273. http://www.cnki.com.cn/Article/CJFDTOTAL-DZDZ199903010.htm
[15] 陈波, 田崇鲁.储层构造裂缝数值模拟技术的应用实例[J].石油学报, 1998, 19(4):50~54. doi: 10.7623/syxb199804009
CHEN Bo, TIAN Chong-lu. Numerical simulation technique for structural fractures in a reservoir: Case studies [J]. Acta Petrolei Sinica, 1998, 19(4): 50~54. doi: 10.7623/syxb199804009
[16] 万晓龙, 高春宁, 王永康, 等.人工裂缝与天然裂缝耦合关系及其开发意义[J].地质力学学报, 2009, 15(3):245~252. http://journal.geomech.ac.cn/ch/reader/view_abstract.aspx?flag=1&file_no=20090305&journal_id=dzlxxb
WAN Xiao-long, GAO Chun-ning, WANG Yong-kang, et al. Coupled relationship between created and natural fractures and its implication to development [J]. Journal of Geomechanics, 2009, 15(3): 245~252. http://journal.geomech.ac.cn/ch/reader/view_abstract.aspx?flag=1&file_no=20090305&journal_id=dzlxxb
[17] 曾联波.低渗透砂岩储层裂缝形成与分布[M].北京:科学出版社, 2008.
ZENG Lian-bo. Formation and distribution of fractures in low permeability sandstone reservoirs[M]. Beijing: Science Press, 2008.
[18] 陈凤, 罗美娥, 张维平, 等.大庆外围油田地应力特征及人工裂缝形态分析[J].断块油气田, 2006, 13(3):13~15. http://www.cnki.com.cn/Article/CJFDTOTAL-DKYT200603003.htm
CHEN Feng, LUO Mei-e, ZHANG Wei-ping, et al. Terrestrial stress characteristics and artificial fracture pattern analysis of Daqing periphery oilfield [J]. Fault-Block Oil and Gas Field, 2006, 13(3): 13~15. http://www.cnki.com.cn/Article/CJFDTOTAL-DKYT200603003.htm
-
