云南兰坪盆地北部东缘铅锌矿床喷流沉积成因的厘定———来自矿物学和硫同位素证据

黄玉凤; 曹殿华; 王志军; 李以科; 王安建

云南兰坪盆地北部东缘铅锌矿床喷流沉积成因的厘定———来自矿物学和硫同位素证据

1.
中国地质科学院矿产资源研究所，北京 100037

2.
罕王傲牛矿业股份有限公司，辽宁抚顺 113001

基金项目:
国家科技支撑计划课题(2006BAB01A07)资助

详细信息

作者简介: 黄玉凤(1986-)，男，在读硕士研究生，主要从事成矿规律方面的研究工作

通讯作者: 王安建(1953-)，男，教授，博士生导师，长期从事区域成矿学与矿产资源评价研究。E-mail: ajwang@cags.net.cn

中图分类号: P611

收稿日期: 2010-10-26

刊出日期: 2011-03-25

SEDEX DEPOSIT GENESIS OF THE Pb-Zn DEPOSITS IN THE NORTHEASTERN MARGIN OF LANPING BASIN IN YUNAN: EVIDENCE FROM MINERALOGICAL AND SULFUR ISOTOPIC STUDIES

1.
Institute of Mineral Resources, Chinese Academy of Geological Sciences, Beijing 100037, China

2.
Hanwang Aoniu Mining Corporation Ltd., Fushun 113001, Chin

More Information

Corresponding author: WANG An-jian, ajwang@cags.net.cn

Received Date: 26 October 2010

Publish Date: 25 March 2011

摘要

摘要:
通过详细的野外地质工作和显微镜下观察，对云南兰坪盆地东北部维西—乔后断裂带上三叠统石钟山组(T₃s)中产出的铅锌矿床成因进行厘定。研究结果表明，测区内存在大量典型的同生沉积矿床标志，如:纹层构造、条纹条带构造、网脉构造、黄铁矿条带软沉积构造、黄铁矿草莓状结构、黄铁矿胶状构造、闪锌矿同心环状构造等。青甸湾矿床金属硫化物硫同位素测试结果显示，黄铁矿的δ³⁴ S介于3.7‰ ~ 8.1‰，均值5.34‰; 闪锌矿的δ³⁴ S介于5.2‰ ~ 10.0‰之间，均值为7.18‰; 方铅矿的δ³⁴ S介于5.2‰ ~ 9.9‰之间，均值为7.275‰，铅锌矿床硫来源于海水硫酸根无机还原。结合矿床形成时代及大地构造背景，认为该区铅锌矿为喷流沉积作用形成。
- 兰坪盆地 /
- 喷流沉积 /
- 同生沉积 /
- 矿物学 /
- 硫同位素
Abstract:
A series of lead-zinc deposits such as Qingdianwan, Caizidi, Jinshantao and so on, which are situated in the Upper Triassic Shizhongshan Formation (T₃s) at the Weixi-Qiaohou fault belt, northeast of Lanping Basin. The genesis studies of these lead-zinc deposits are relatively superficial.. In this paper, through detailed field geological survey and studies under the microscope, authors found a large number of typical signs of the synsedimentary deposit such as laminated structure, striped band structure, vein net structure, the soft sedimentary pyrite band structure, strawberry-like pyrite structure, colloidal structure of pyrite, sphalerite concentric structure etc. Sulfur isotopes analysis results of metal sulfide in Qingdianwan deposit are following: δ³⁴ S of pyrite at 3.7‰ ~ 8.1‰, average 5.34‰ (N = 5); δ³⁴ S of sphalerite at 5.2‰ ~ 10‰, average 7.18‰ (N = 5); δ³⁴ S of galena at 5.2‰ ~ 9.9‰, average 7.275‰ (N = 4). It demonstrates that S in the deposit come from deoxidize of sulfate radical in seawater. Combining to the age data of these deposits and the tectonic background, we think these deposits in this area are pertain to Sedimentary Exhalation (SEDEX) genesis which revised the previous viewpoint that these deposits simply controlled by structure.
- Lanping Basin /
- Sedimentary Exhalative deposit (SEDEX) /
- synsedimentary /
- mineralogy /
- sulfur isotope

HTML全文

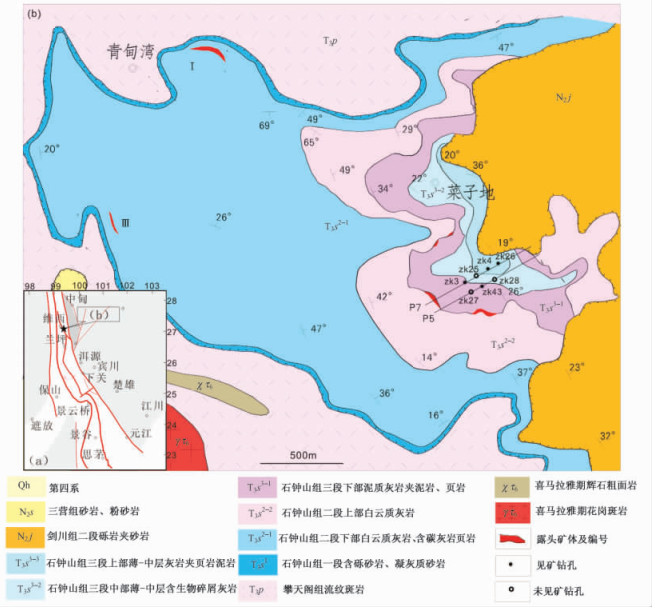

图 1 青甸湾—菜子地矿区大地构造位置及矿区地质图

Figure 1.

下载: 全尺寸图片幻灯片

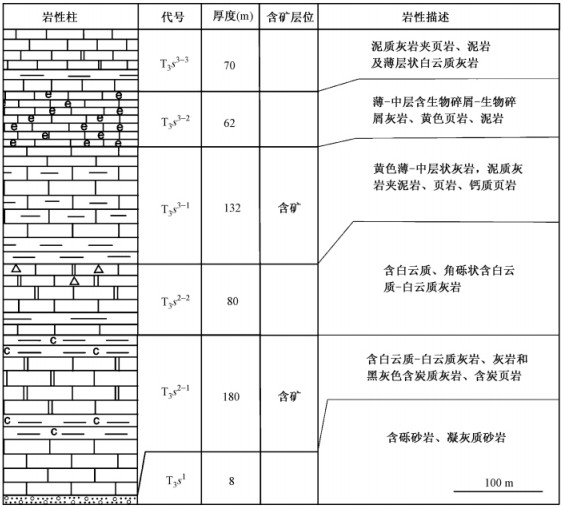

图 2 石钟山组(T₃s)岩性组合柱状图

Figure 2.

下载: 全尺寸图片幻灯片

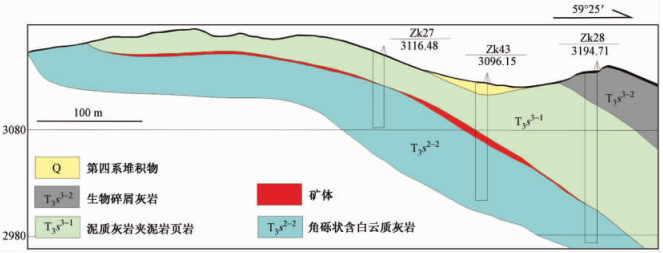

图 3 P5号勘探线剖面图

Figure 3.

下载: 全尺寸图片幻灯片

图 4 P7号勘探线剖面图

Figure 4.

下载: 全尺寸图片幻灯片

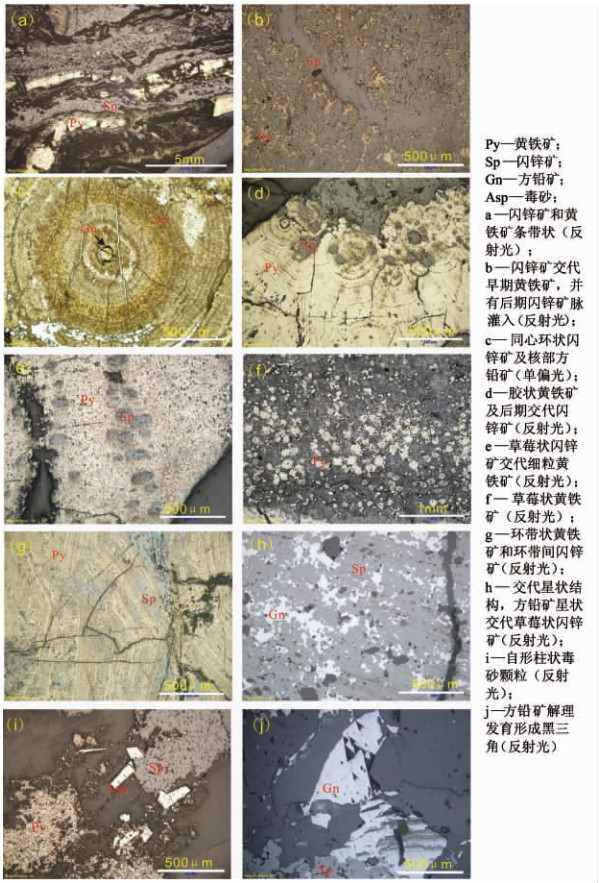

图 5 青甸湾矿床上三叠统灰岩Pb-Zn矿典型矿物结构

Figure 5.

下载: 全尺寸图片幻灯片

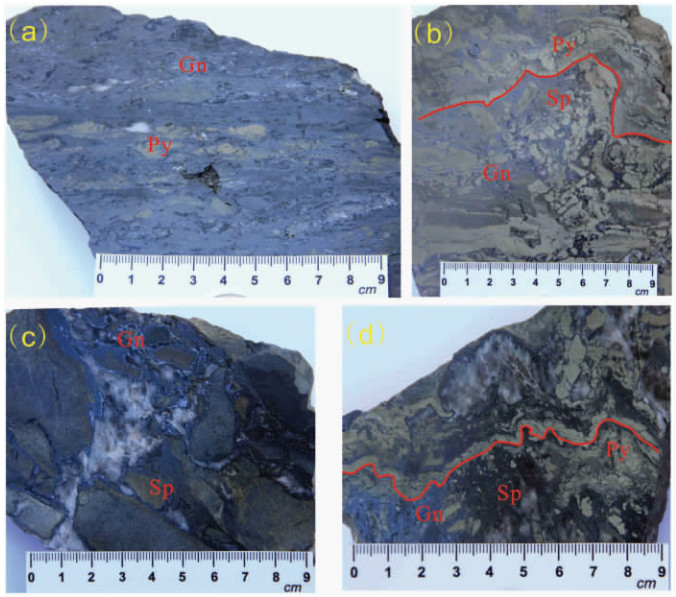

图 6 青甸湾矿床上三叠统灰岩Pb-Zn矿典型矿石构造

Figure 6.

下载: 全尺寸图片幻灯片

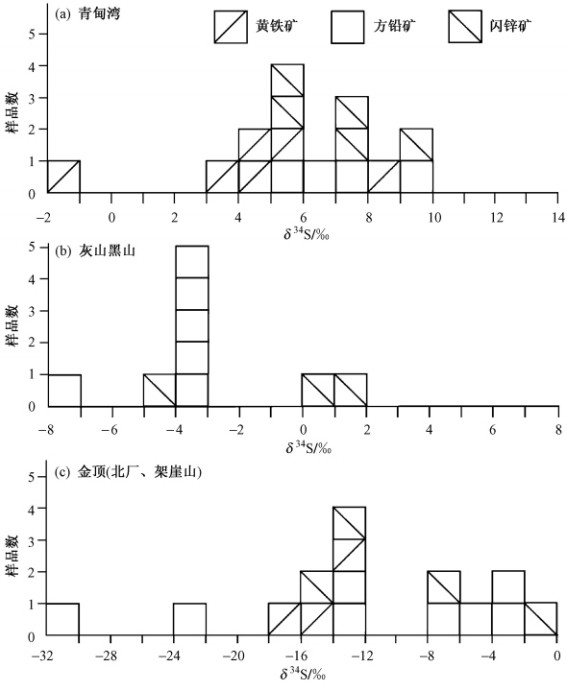

图 7 青甸湾、灰山—黑山、金顶(北厂、架崖山)矿床硫化物硫同位素组成分布图

Figure 7.

下载: 全尺寸图片幻灯片

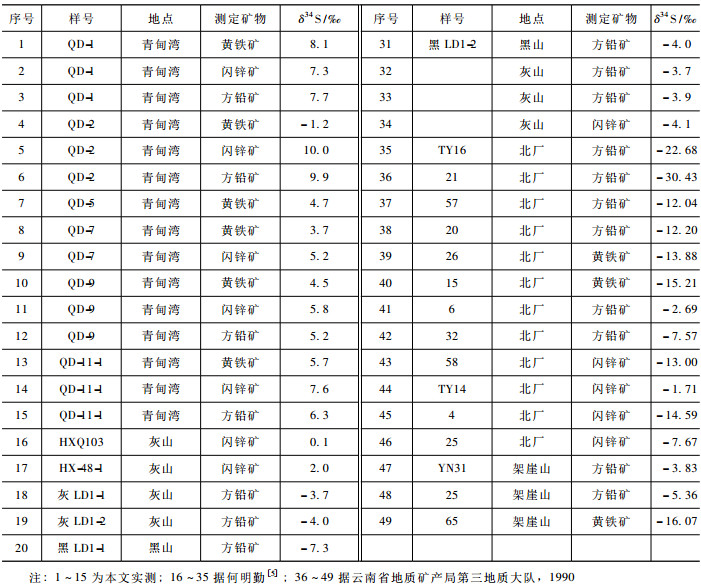

表 1 青甸湾、灰山—黑山、金顶矿区(北厂、架崖山)硫同位素组成

Table 1. Sulfur isotopic composition in Qingdianwan, Huishan-Heishan and Jinding (Beichang, Jiayashan) deposits

下载: 导出CSV
