RESEARCH ON IMPACT TECTONICS AND IMPACTITES:STATUS AND PROSPECTS
-
摘要:
当陨石撞击地球表面时, 它所引起的瞬时(1秒至1微秒)动态高压(数十至数百个吉帕)和高温(大于1500℃), 必然导致陨石撞击坑(astroblems)的生成并使周围岩石发生变质作用, 这便是撞击变质作用(impact metamorphism)。目前关于撞击构造(impact tectonics)作用研究的主要进展涵盖如下四个方面:1.撞击坑的构造形貌及形成机制; 2.撞击变质作用及撞击变质岩; 3.撞击作用的数值模拟和实验研究; 4.撞击作用的经济地质意义。陨击作用研究不仅具有学术意义, 还具有实际的经济地质意义。南非的Vredefort-Witwatersrand是最老的撞击构造, 它以丰富的金铀矿床而闻名; 加拿大的肖德贝里(Sudbury)以同撞击作用期的大型铜镍矿床著称; 如今北美、中美不少地区正在探索与陨击期后构造有关的油气储集。此外, 许多陨击变质岩可以供作建筑材料。不少撞击坑已经辟为旅游胜地, 如德国的Nordlingen Ries撞击坑。我国撞击构造的研究已有不少进展。20世纪90年代初发现了海南白沙陨击坑, 此外内蒙古的多伦、江苏的太湖和辽宁的岫岩罗圈里等地也发现有陨击构造的证迹, 不过, 都尚待进一步的工作予以证实。全球撞击构造研究经验可以借鉴的是, 在长期构造稳定区较易于发现陨击坑; 不少撞击构造被隐伏在第四纪或更老的沉积物之下, 所以采用人造卫星发回资料解译地球表面的照片, 加上地球物理勘探, 可以有效地确定研究靶区, 在此基础上再加强岩石学、构造学研究予以确认。
Abstract:Transient (within 1 second)dynamic high pressures (ca tens of to up to one hundred GPa) and high temperatures (>1500℃)caused by the impact process will eventually result in the development of an astrobleme when a large meteorite impacts the earth's surface, and the surrounding rocks must undergo a special kind of metamorphism called impact metamorphism. The studies of impact tectonics include the following four topics:1. structure and morphology of the impact crater and its formation mechanism; 2. impact metamorphism and impact metamorphic rocks; 3. numerical simulation and experimental calculation of impact tectonics; and 4. economic benefits of impact tectonics. The studies of impact tectonics not only have academc significance but also have actual economic benefits. Vredefort-Witwatersrand in South Africa is one of the oldest impact tectonics and is also famous for its gold-uranium deposits. The Sudbury impact structure in Canada is famous for occurrence of a large syn-impact Cu-Ni deposit. Now oil and gas reservoirs related to post-impact tectonics are being explored for in a number of areas of North America and Central America. In addition, many impactites are used as building materials and many astroblemes become famous resort places, such as the Ries crater in Nordlingen, Germany. Much progress has been made in impact studies in China since the end of the 20th century. The Baisha crater found in Hainan in the early 1990s is known to the world and there are reports on possible craters such as Taihu in Jiangsu, Duolun in Inner Mongolia and Luoquanli near Xiuyan in Liaoning. However these structures remain to be further confirmed. The studies of global impact tectonics show that long-term stable cratons are favorable to discovering impact craters and many craters are hidden beneath Quaternary and older sediments. So satellite-borne photography and geophysical exploration will be effective in determining targets, and on that basis, through strengthening petrological and structural studies, impact craters may be confirmed.
-
-

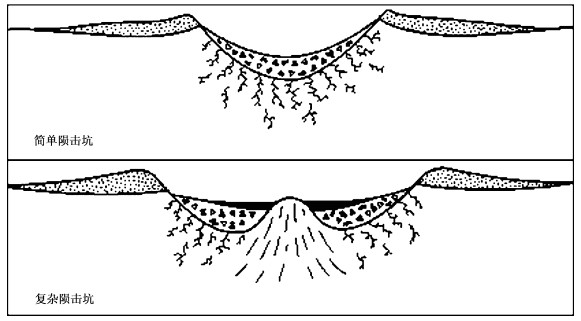

图 1 简单陨石撞击坑(上)和复杂陨石撞击坑(下)细点:抛出物; 小三角:碎块堆积; 黑色:熔岩; 不规则细纹:坑底的裂隙(据Hamilton, 2001)[5]
Figure 1.

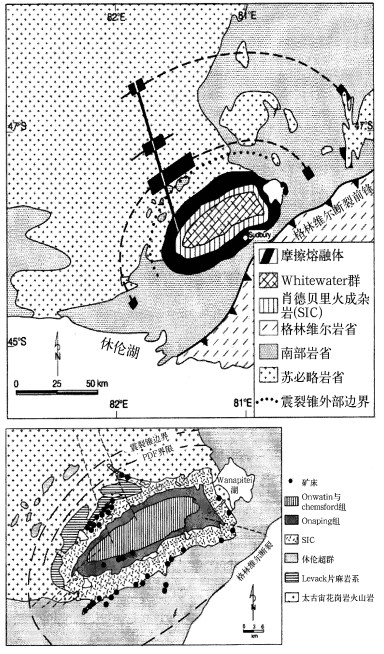

图 3 加拿大的肖德贝里(Sudbury)巨型陨石撞击坑。上图:陨石撞击构造及撞击变质岩的分布; 下图:主要矿床的分布(据Reimold, 2005, Fig. 8)[7]
Figure 3.
图 图C Ries撞击花岗岩中石英中多组的PDFs : A{1013}或{0113}, B{1011}或{0111}(据French, 2003)[3]
Figure 图C.
图 图F 假玄武玻璃(露头照片)充填于破碎的石英岩角砾之间。Sudbury.右上地质锤表示比例尺(据Trench, 2003, Chapter 5)[3]
Figure 图F.
图 7 震裂锥:加拿大Haughton撞击构造细粒石灰岩中的震裂锥。具分散型马尾状条纹, 角顶向上, 图宽10cm (据French, 2003)[3]
Figure 7.
表 1 瑞芬地区陨石撞击坑保存程度分级(据Puura and Plado, 2005)[9]
Table 1. Preservation level of impact craters in the Svecofennian crustal domain (after Puura and Plado, 2005)[9]
下载: 导出CSV

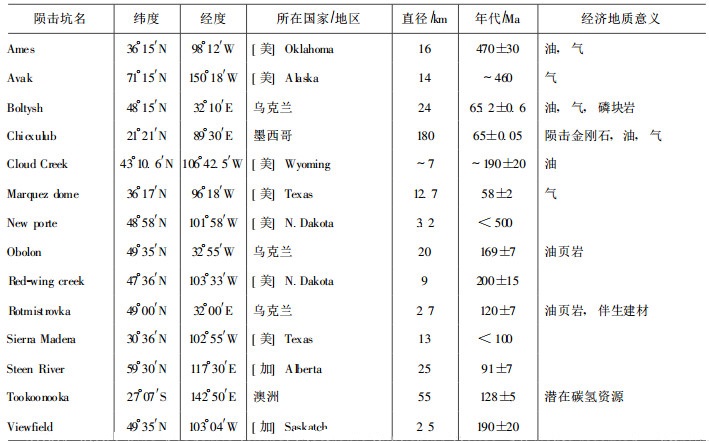

表 附录2 世界著名与碳氢资源有关的陨击构造
Table 附录2. World-famous impact structures related to hydrocarbon resources
下载: 导出CSV

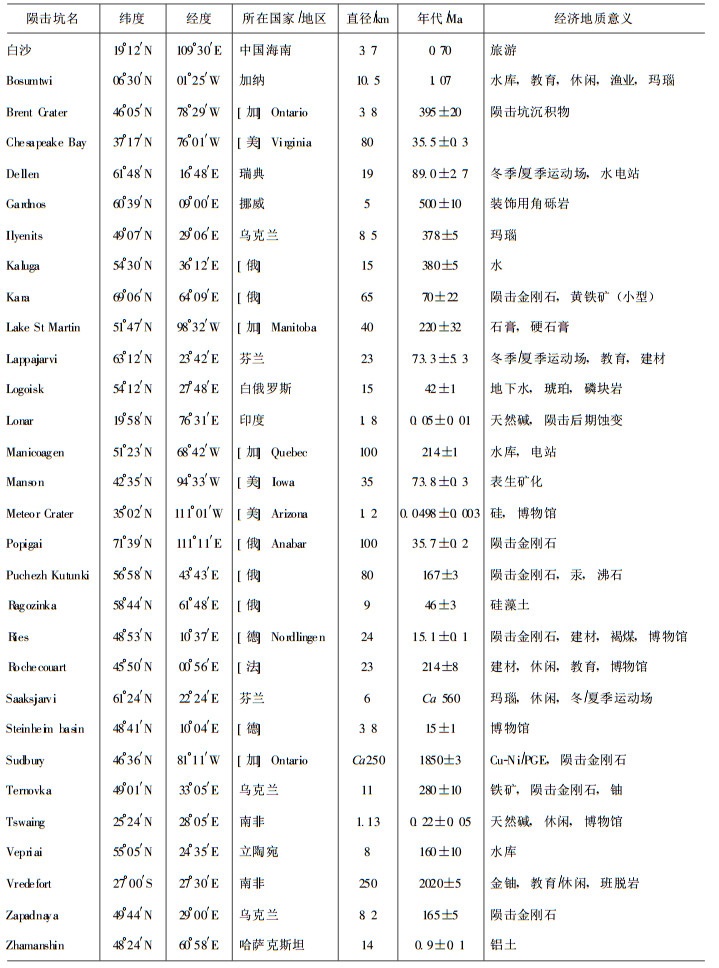

表 附录3 世界著名具非金属矿产资源及其他经济效益的陨击构造
Table 附录3. World-famous impact structures where there are nonmetallic mineral resouces and other economic benefits
下载: 导出CSV
-
[1] Mason R, Sang Longkang.Metamorphic Geology [J].Wuhan:China University of Geosciences Press, 2007.139~150. http://d.old.wanfangdata.com.cn/NSTLQK/NSTL_QKJJ0221799102/
[2] Sharpton Vl et al.Chicxulub multiring impact basin:size and other characteristics derived from gravity analysis [J].Science, 1993, 261:1564~ 1567. doi: 10.1126/science.261.5128.1564
[3] French BM. Traces of Catastrophe : a handbook of shock-metamorphic effect in terrestrial meterorite impact structures [10/7/2003], http://www.lpi.usra.edu/publications/books/CB.
[4] Melosh HJ.Impact cratering :a Geological Process [M].New York:Oxford University Press, 1989.
[5] Hamilton CJ. Terrestrial Impact Craters. 2001, http://www.solarviews.com/eng/tercrate.htm.
[6] NASA : Near Earth Object Program : Images of meteor crater [23 Aug 2005], http://neo.jplnasa.gov/images/metor/crater.Html.
[7] Reimold WU. Economic mineral deposits in impact structures: a review. In: Koeberl C, Henkel H (eds), Impact Tectonics[M]. New York: Springer, 2005, 479~ 552.
[8] Mashchak MS, Naumov MV. Late modification-stage tectonic deformation of the Popigai impact structure, Russia. 2005 ibid. 191~ 210.
[9] Puura V, Plado J. Settings of meteorite impact structures in the Svecofennian crustal domain, 2005 ibid. 211~ 245.
[10] Chao ECT.Shock effects in certain rock forming minerals [J].Science, 1967, 156 (3772):192~ 202. doi: 10.1126/science.156.3772.192
[11] Vishnevsky SA, Afanasiev VP, Argunov KP, Pal'chik NA. Impact diamonds: their features, origin and significance, Novosibirsk. RAS Siberian Branch, SPC UIGGM. 53, 1997.
[12] 王道经.海南白沙陨石坑[M].海南省:海南出版社, 1997.
[13] 王尔康, 万玉秋, 施央申.太湖泽山岛冲击变质石英的发现与意义[J].科学通报, 1992, 38 (20):1875~ 1878. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=QK000002002192
[14] 吴思本.多伦陨石坑的研究进展[J].中国地质, 1996, (8):14~ 16. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=QK199600039716
[15] 覃功炯, 欧强, 常旭.国内外对天体撞击地球的撞击构造研究的新进展[J].地学前缘, 2001, 8 (2):345~ 352. doi: 10.3321/j.issn:1005-2321.2001.02.020
[16] 覃功炯, 卢登蓉, 欧强, 储雪蕾.罗圈里撞击坑铂族元素异常及粗铂矿的发现及其意义[J].地学前缘, 2001, 8 (2):333~ 338. doi: 10.3321/j.issn:1005-2321.2001.02.018
[17] 朱照宇, 周厚云, 乔玉楼, 等.华南玻璃陨石的原生层位及其事件地层学意义[J].地质力学学报, 2001 (4):296~ 302. doi: 10.3969/j.issn.1006-6616.2001.04.002 http://journal.geomech.ac.cn/ch/reader/view_abstract.aspx?flag=1&file_no=20010444&journal_id=dzlxxb
[18] Marakushev AA (ed). Impactite, Isdatelstva [M]. Moscow : University, 1981. 236.
-
