Genesis of Wuduoshan I-S type granite and the constraints on the Early Paleozoic tectonic evolution of the Northern Qinling: Evidence from zircon U-Pb age, geochemistry and Sr-Nd-Hf isotopes
-
摘要:

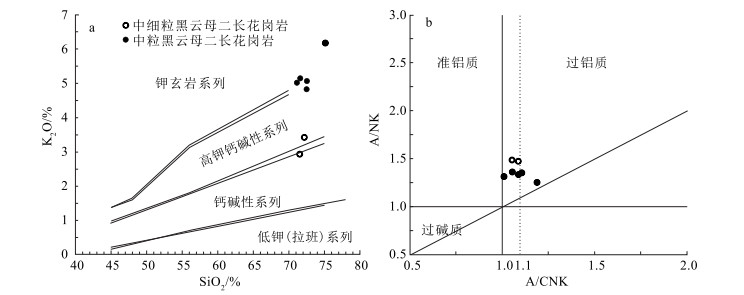

秦岭造山带地处华北板块与扬子板块结合带，经历了复杂的构造演化过程，其板块拼合机制及碰撞时限一直备受争议。通过对北秦岭五朵山黑云母二长花岗岩进行年代学、地球化学和Sr-Nd-Hf同位素组成研究，以期对北秦岭早古生代构造演化进行约束。五朵山岩体至少存在2期侵入，分别为431 Ma和417 Ma。岩石具有高硅(SiO2=71.16%~74.22%)，富碱富钾(K2O+Na2O=7.16%~8.88%，K2O/Na2O=0.69~2.34)，过铝质(A/CNK=1.01~1.19))等特征。岩石稀土元素总量总体偏低，轻、重稀土元素分异较强，呈右倾配分模式，具轻微的负Eu异常。富集大离子亲石元素Rb、Th、U，亏损高场强元素(Nb、Ta、Zr)及Ba、Sr，在岩石类型上属于I-S过渡型花岗岩类。五朵山花岗岩具有相对低的(87Sr/86Sr)i值(0.70581~0.71093)，εNd(t)值为-6.48~-3.18，对应的Nd的二阶段模式年龄为1.42~1.69 Ga; 绝大多数测点具负的εHf(t)值(-6.9~-0.1)，tDM2=1.50~2.34 Ga。同位素特征指示这些花岗岩为古—中元古代地壳物质部分熔融的产物。五朵山花岗岩的形成与二郎坪岛弧与北秦岭微陆块碰撞作用关系密切，属同碰撞-后碰撞型花岗岩，岩浆源区为北秦岭微陆块古老的地壳物质。
Abstract:The Qinling orogenic belt, located at the junction zone of the North China plate and the Yangtze plate, has experienced a complex tectonic evolution process, and the mechanism of plate assembly and the collisional time are controversial.In this paper, the geochronology, geochemistry and Sr-Nd-Hf isotopic composition of the Wuduoshan biotite monzogranite in North Qinling studied to constrain the early Paleozoic tectonic evolution of the North Qinling.Two periods of intrusion were identified in Wudaoshan batholith, which is dating 431 Ma and 417 Ma respectively.The rocks are characterized by high silicon(SiO2 =71.16%~74.22%), alkali and potassium rich(K2O + Na2O =7.16%~8.88%, K2O / Na2O =0.69~2.34)and peraluminous(A / CNK =1.01~1.19).The total REE content is generally low, and LREE and HREE are strongly fractionated, showing a right dipping distribution pattern and slight negative Eu anomalies.They are characterized by enrichment in large ion lithophile elements(Rb, Th, U), relative depletion in high field strength elements(Nb, Ta, Zr)and Ba and Sr.They belong to "I-S" type granitoids.The Wuduoshan granite has relatively low(87Sr/ 86Sr)i values(0.70581~0.71093), and negative εNd(t)values(-6.48 to-3.18), with the corresponding two-stage Nd model age of 1.42 Ga ~1.69 Ga.Most of zircons have negative εHf(t)values(εHf(t)=-6.9~ -0.1), and tDM2 =1.50~2.34 Ga.The isotopic characteristics indicate that the Wuduoshan granite is the product of partial melting of Paleoproterozoic-Mesoproterozoic crustal material.Combined with the tectonic evolution of Qinling orogenic belt, we concluded that the formation of Wuduoshan granite was related to the collision between Erlangping island arc and North Qinling micro-continent and belongs to syn-collisional and post-conllisional type granite, and the magma source is the ancient crustal material of North Qinling micro-continent.
-
-

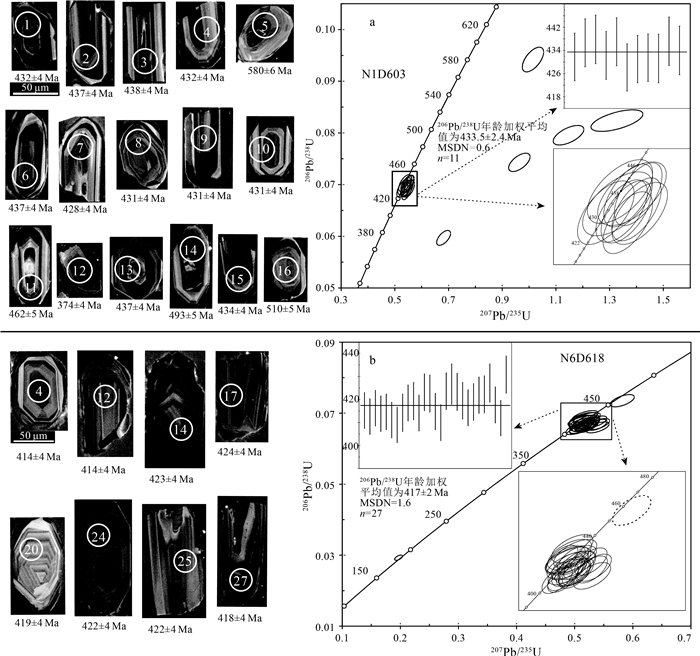

表 1 五朵山岩体锆石LA-ICP-MS U-Pb同位素分析结果
Table 1. Zircon LA-ICP-MS U-Pb dating results of Wuduoshan granite
测定点号 含量/10-6 同位素比值 年龄/Ma Pb U 207Pb/206Pb 1σ 207Pb/235U 1σ 206Pb/238U 1σ 207Pb/206Pb 1σ 207Pb/235U 1σ 206Pb/238U 1σ N1D603(中细粒黑云母二长花岗岩) 1 171 2426 0.0565 0.0008 0.5398 0.0077 0.0693 0.0007 473 31 438 6 432 4 2 116 1532 0.0564 0.0007 0.5446 0.0073 0.0701 0.0007 467 29 441 6 437 4 3 159 1941 0.0556 0.0009 0.5387 0.0097 0.0703 0.0007 436 37 438 8 438 4 4 153 2278 0.0576 0.0007 0.5507 0.0074 0.0694 0.0007 514 28 445 6 432 4 5 89 905 0.0781 0.0011 1.0146 0.0162 0.0942 0.0010 1150 27 711 11 580 6 6 124 1649 0.0571 0.0007 0.5519 0.0071 0.0701 0.0007 494 28 446 6 437 4 7 80 1087 0.0575 0.0008 0.5443 0.0074 0.0687 0.0007 510 30 441 6 428 4 8 111 1498 0.0580 0.0009 0.5530 0.0083 0.0691 0.0007 530 32 447 7 431 4 9 172 2431 0.0569 0.0008 0.5431 0.0075 0.0692 0.0007 488 29 440 6 431 4 10 50 694 0.0554 0.0008 0.5283 0.0085 0.0692 0.0007 428 33 431 7 431 4 11 78 928 0.0941 0.0015 0.9639 0.0163 0.0743 0.0007 1510 31 685 12 462 5 12 73 1165 0.0828 0.0013 0.6818 0.0106 0.0597 0.0006 1266 31 528 8 374 4 13 85 1173 0.0566 0.0010 0.5474 0.0102 0.0702 0.0007 475 39 443 8 437 4 14 144 1610 0.1046 0.0020 1.1471 0.0233 0.0795 0.0008 1707 35 776 16 493 5 15 77 1073 0.0559 0.0011 0.5368 0.0104 0.0696 0.0007 448 43 436 8 434 4 16 53 535 0.1169 0.0031 1.3274 0.0395 0.0824 0.0009 1909 47 858 26 510 5 N6D618(中粒黑云母二长花岗岩) 1 30 409 0.0558 0.0009 0.5114 0.0081 0.0665 0.0006 443 34 419 7 415 4 2 112 1693 0.0571 0.0007 0.5204 0.0069 0.0661 0.0006 496 29 425 6 413 4 3 78 1199 0.0562 0.0007 0.5166 0.0071 0.0667 0.0006 459 30 423 6 416 4 4 102 1477 0.0569 0.0008 0.5205 0.0071 0.0663 0.0006 489 30 426 6 414 4 5 193 2858 0.0567 0.0007 0.5192 0.0068 0.0664 0.0006 479 28 425 6 415 4 6 132 2087 0.0560 0.0007 0.5080 0.0068 0.0658 0.0006 451 29 417 6 411 4 7 142 2293 0.0555 0.0007 0.5015 0.0067 0.0655 0.0006 434 29 413 6 409 4 8 98 1314 0.0567 0.0008 0.5192 0.0075 0.0664 0.0007 481 31 425 6 414 4 9 257 3890 0.0554 0.0007 0.5124 0.0069 0.0671 0.0006 429 29 420 6 418 4 10 315 4906 0.0568 0.0007 0.5260 0.0070 0.0672 0.0007 482 29 429 6 419 4 11 165 5692 0.0488 0.0006 0.1970 0.0028 0.0293 0.0003 139 31 183 3 186 2 12 111 1466 0.0560 0.0007 0.5126 0.0069 0.0663 0.0006 454 29 420 6 414 4 13 70 983 0.0546 0.0009 0.5105 0.0087 0.0678 0.0007 395 37 419 7 423 4 14 231 3299 0.0555 0.0007 0.5186 0.0069 0.0677 0.0007 433 29 424 6 423 4 15 312 4906 0.0572 0.0007 0.5239 0.0069 0.0665 0.0006 498 28 428 6 415 4 16 244 3898 0.0561 0.0007 0.5078 0.0068 0.0657 0.0006 457 28 417 6 410 4 17 131 1785 0.0542 0.0007 0.5071 0.0069 0.0679 0.0007 377 30 416 6 424 4 18 51 688 0.0546 0.0009 0.5149 0.0097 0.0684 0.0007 394 38 422 8 427 4 19 31 394 0.0552 0.0012 0.5162 0.0113 0.0679 0.0007 419 47 423 9 423 4 20 41 565 0.0557 0.0010 0.5164 0.0106 0.0672 0.0007 441 42 423 9 419 4 21 64 806 0.0574 0.0008 0.5820 0.0085 0.0735 0.0007 508 30 466 7 457 4 22 168 2638 0.0586 0.0007 0.5388 0.0069 0.0667 0.0006 551 28 438 6 416 4 23 189 2655 0.0561 0.0007 0.5191 0.0067 0.0671 0.0007 456 28 425 5 419 4 24 132 2028 0.0577 0.0008 0.5379 0.0072 0.0676 0.0006 518 29 437 6 422 4 25 47 656 0.0550 0.0010 0.5135 0.0099 0.0677 0.0007 413 42 421 8 422 4 26 103 1409 0.0552 0.0009 0.5211 0.0095 0.0685 0.0007 419 37 426 8 427 4 27 280 3693 0.0587 0.0008 0.5414 0.0076 0.0669 0.0006 555 30 439 6 418 4 28 293 4266 0.0593 0.0009 0.5393 0.0082 0.0660 0.0006 577 32 438 7 412 4 29 85 1248 0.0543 0.0009 0.5178 0.0092 0.0691 0.0007 385 39 424 8 431 4
下载: 导出CSV
表 2 五朵山黑云母花岗岩主量、微量和稀土元素分析结果
Table 2. Major, trace and rare earth elements compositions for Wuduoshan biotite granite
送样号 Sr1/N1 XWG302/27-1 Sr1/N5 Sr2/N5 Sr3/N5 Sr1/N6 Sr2/N6 岩性区分 中细粒 中细粒 中粒 中粒 中粒 中粒 中粒 SiO2 71.55 72.11 74.22 72.52 71.62 72.56 71.16 TiO2 0.31 0.26 0.29 0.24 0.29 0.27 0.41 Al2O3 15.05 14.86 13.9 14.2 14.43 14.24 14.46 FeO 1.11 1.2 0.23 0.25 0.25 1.04 0.98 Fe2O3 0.69 0.46 0.71 1.52 1.67 0.72 1.28 MnO 0.038 0.04 0.012 0.027 0.029 0.032 0.038 MgO 0.61 0.62 0.19 0.45 0.46 0.44 0.63 CaO 2.29 1.95 0.32 1.28 1.34 1.79 1.69 Na2O 4.23 3.94 2.66 3.21 3.19 3.26 3.16 K2O 2.93 3.47 6.22 4.83 5.15 5.07 5.02 P2O5 0.093 0.08 0.05 0.073 0.092 0.075 0.12 烧失量 0.99 0.97 1.16 1.36 1.46 0.72 0.95 Rb 154 176.6 298 200 192 170 175 Ba 419 501 402 924 2170 1160 1900 Th 18.2 15.11 69.4 46.6 23.7 34.4 47.5 U 2.24 3.6 3.3 1.37 1.11 3.2 2.56 Nb 9.1 13.06 21 14.1 6.41 10.2 10.9 Ta 1.66 2.31 1.38 1.07 0.26 0.76 0.63 La 25.8 22.62 85.5 37.4 54.8 52.4 91.6 Ce 46.7 41.45 147 58.7 75.5 90.6 155 Pr 4.91 4.8 17.8 7.35 9.93 10.1 17.7 Sr 179 196 85.6 171 300 206 289 Nd 17.5 16.84 58.8 26.2 33 34.6 56.6 Zr 139 101.2 220 187 207 186 273 Hf 4.37 3.8 7.77 6.39 5.55 5.88 8.08 Sm 3.26 3.35 8.86 4.29 4.79 5.81 8.28 Eu 0.72 0.72 0.56 1.04 1.87 1.36 1.9 Gd 2.78 2.97 7.16 3.4 4.03 4.66 7.06 Tb 0.42 0.47 0.75 0.4 0.4 0.5 0.7 Dy 2.02 2.55 3.08 1.61 1.55 2.09 2.91 Y 9.7 11.61 13 8.25 7.63 9.34 12.7 Ho 0.33 0.43 0.52 0.29 0.27 0.35 0.48 Er 0.95 1.11 1.35 1 0.7 1.06 1.3 Tm 0.12 0.16 0.17 0.15 0.1 0.14 0.19 Yb 0.78 1 1.01 1.11 0.72 0.88 1.2 Lu 0.12 0.14 0.15 0.19 0.13 0.14 0.19 A/CNK 1.05 1.08 1.19 1.11 1.09 1.01 1.06 ΣREE 106.41 98.59 332.71 143.13 187.79 204.69 345.11 LREE 98.89 89.76 318.52 134.98 179.89 194.87 331.08 HREE 7.52 8.83 14.19 8.15 7.9 9.82 14.03 LREE/HREE 13.15 10.17 22.45 16.56 22.77 19.84 23.6 LaN/YbN 23.73 16.21 60.72 24.17 54.59 42.71 54.75 δEu 0.73 0.69 0.21 0.83 1.3 0.8 0.76 δCe 1.02 0.98 0.92 0.87 0.79 0.97 0.94 注：主量元素含量单位为%，微量和稀土元素含量单位为10-6
下载: 导出CSV
表 3 五朵山花岗岩全岩Sr-Nd同位素数据
Table 3. Sr-Nd isotopic data of the Wuduoshan granite
样品号 Rb/10-6 Sr/10-6 87Rb/86Sr 87Sr/86Sr (87Sr/86Sr)i Sm/10-6 Sr1/N1 154 179 2.4932 0.72389 0.70908 3.26 Sr1/N5 298 85.6 10.13515 0.77112 0.71093 8.86 Sr2/N5 200 171 3.39008 0.72594 0.70581 4.29 Sr3/N5 192 300 1.85343 0.71697 0.70596 4.79 Sr1/N6 170 206 2.39107 0.72205 0.70785 5.81 Sr2/N6 175 289 1.75358 0.71677 0.70635 8.28 样品号 Nd/10-6 147Sm/144Nd 143Nd/144Nd εNd(t) tDM1/Ga tDM2/Ga Sr1/N1 17.5 0.10469 0.51216 -4.37 1.38 1.52 Sr1/N5 58.8 0.10469 0.51206 -6.48 1.53 1.69 Sr2/N5 26.2 0.10469 0.51217 -4.19 1.37 1.5 Sr3/N5 33 0.10469 0.51222 -3.18 1.3 1.42 Sr1/N6 34.6 0.10469 0.51216 -4.53 1.39 1.53 Sr2/N6 56.6 0.10469 0.51217 -4.27 1.37 1.51
下载: 导出CSV
表 4 五朵山花岗岩锆石原位Hf同位素数据
Table 4. In-situ Hf isotopic data for zircons of the Wuduoshan granite
样品 年龄/Ma 176Yb/177Hf 176Lu/177Hf 176Hf/177Hf 2s εHf(t) fLu/Hf TDM /Ma TDMC /Ma N1D603(中细粒黑云母二长花岗岩) 603-1 433 0.0259 0.0009 0.282522 0.000017 0.4 -0.97 1032 1788 603-2 433 0.0310 0.0008 0.282410 0.000019 -3.5 -0.98 1185 2140 603-3 433 0.0334 0.0010 0.282558 0.000020 1.7 -0.97 984 1676 603-4 433 0.0236 0.0006 0.282413 0.000019 -3.4 -0.98 1175 2126 603-5 433 0.0175 0.0005 0.282451 0.000018 -2.0 -0.99 1117 2002 603-6 433 0.0225 0.0007 0.282483 0.000015 -0.9 -0.98 1079 1906 603-7 433 0.0293 0.0008 0.282507 0.000019 -0.1 -0.98 1048 1832 603-8 433 0.0189 0.0005 0.282430 0.000019 -2.7 -0.99 1147 2069 603-9 433 0.0326 0.0010 0.282537 0.000013 0.9 -0.97 1012 1742 603-10 433 0.0164 0.0004 0.282387 0.000020 -4.2 -0.99 1205 2205 603-11 433 0.0265 0.0008 0.282538 0.000016 1.0 -0.98 1006 1735 603-12 433 0.0262 0.0007 0.282446 0.000018 -2.2 -0.98 1132 2024 603-13 433 0.0448 0.0012 0.282477 0.000020 -1.3 -0.96 1104 1940 603-14 433 0.0228 0.0007 0.282610 0.000015 3.6 -0.98 903 1504 603-15 433 0.0292 0.0008 0.282453 0.000019 -2.0 -0.98 1123 2002 603-16 433 0.0221 0.0006 0.282388 0.000018 -4.2 -0.98 1208 2204 603-17 433 0.0171 0.0006 0.282568 0.000016 2.1 -0.98 958 1634 N6D618(中粒黑云母二长花岗岩) 618-1 417 0.0175 0.0005 0.282356 0.000016 -5.7 -0.99 1250 2328 618-2 417 0.0168 0.0005 0.282499 0.000017 -0.6 -0.98 1053 1872 618-3 417 0.0109 0.0003 0.282423 0.000017 -3.3 -0.99 1152 2109 618-4 417 0.0191 0.0005 0.282379 0.000015 -4.9 -0.99 1218 2252 618-5 417 0.0336 0.0009 0.282430 0.000017 -3.2 -0.97 1159 2099 618-6 417 0.0141 0.0004 0.282376 0.000021 -5.0 -0.99 1220 2260 618-7 417 0.0141 0.0003 0.282491 0.000016 -0.9 -0.99 1059 1894 618-8 417 0.0262 0.0007 0.282363 0.000019 -5.5 -0.98 1246 2307 618-10 417 0.0209 0.0006 0.282457 0.000016 -2.1 -0.98 1111 2005 618-11 417 0.0237 0.0006 0.282465 0.000016 -1.9 -0.98 1104 1984 618-12 417 0.0313 0.0008 0.282416 0.000019 -3.6 -0.98 1177 2142 618-13 417 0.0285 0.0008 0.282373 0.000018 -5.2 -0.98 1235 2278 618-14 417 0.0486 0.0014 0.282605 0.000021 2.9 -0.96 926 1555 618-15 417 0.0310 0.0008 0.282532 0.000016 0.5 -0.98 1014 1774 618-16 417 0.0294 0.0008 0.282480 0.000018 -1.4 -0.98 1088 1940 618-17 417 0.0257 0.0007 0.282441 0.000019 -2.7 -0.98 1137 2059 618-18 417 0.0207 0.0006 0.282462 0.000022 -2.0 -0.98 1106 1991 618-19 417 0.0154 0.0004 0.282520 0.000018 0.1 -0.99 1022 1804 618-20 417 0.0110 0.0003 0.282350 0.000017 -5.8 -0.99 1251 2337
下载: 导出CSV
-
[1] 张国伟, 孟庆任, 于在平, 等. 秦岭造山带与大陆动力学[M]. 北京: 科学出版社, 2001.
[2] Dong Y P, Liu X M, Neubauer F, et al. Timing of Paleozoic amalgamation between the North China and South China Blocks: Evidence from detrital zircon U-Pb ages[J]. Tectonophysics, 2013, 586(26) : 173-191.
[3] Dong Y P, Zhang G W, Hauzenberger C, et al. Palaeozoic tectonics and evolutionary history of the Qinlingorogen: Evidence from geochemistry and geochronology of ophiolite and related volcanic rocks[J]. Lithos, 2011, 122(1/2) : 39-56.
[4] Dong Y P, Zhang G W, Neubauer F, et al. Tectonic evolution of the Qinlingorogen, China: Review and synthesis[J]. Journal of Asian Earth Sciences, 2011, 41(3) : 213-237. doi: 10.1016/j.jseaes.2011.03.002
[5] 王晓霞, 王涛, 齐秋菊, 等. 秦岭晚中生代花岗岩时空分布、成因演变及构造意义[J]. 岩石学报, 2011, 27(6) : 1573-1593. https://www.cnki.com.cn/Article/CJFDTOTAL-YSXB201106002.htm
[6] 王涛, 王晓霞, 田伟, 等. 北秦岭古生代花岗岩组合、岩浆时空演变及其对造山作用的启示[J]. 中国科学(D辑), 2009, 39(7) : 949-971. https://www.cnki.com.cn/Article/CJFDTOTAL-JDXK200907008.htm
[7] 刘丙祥. 北秦岭地体东段岩浆作用与地壳演化[D]. 中国科学技术大学博士学位论文, 2014.
[8] Wang H, Wu Y B, Gao S, et al. Deep subduction of continental crust in accretionary orogen: Evidence from U-Pb dating on diamond-bearing zircons from the Qinling orogen, central China[J]. Lithos, 2014, 190/191: 420-429. doi: 10.1016/j.lithos.2013.12.021
[9] 赵姣, 陈丹玲, 谭清海, 等. 北秦岭东段二郎坪群火山岩锆石的LA-ICP-MS U-Pb定年及其地质意义[J]. 地学前缘, 2012, 19(4) : 118-125. https://www.cnki.com.cn/Article/CJFDTOTAL-DXQY201204013.htm
[10] 李开文, 方怀宾, 郭君功, 等. 东秦岭南召县五朵山岩体二云母花岗岩地球化学、锆石U-Pb年代学及地质意义[J]. 地球科学, 2019, 44(1) : 123-134. https://www.cnki.com.cn/Article/CJFDTOTAL-DQKX201901009.htm
[11] 周澍, 张贺, 陈福坤. 北秦岭五垛山花岗岩锆石U-Pb年代学和地球化学特征及成因[J]. 高校地质学报, 2019, 25(6) : 901-913. https://www.cnki.com.cn/Article/CJFDTOTAL-GXDX201906010.htm
[12] 赵利刚, 李承东, 武志宇, 等. 豫西五里川—寨根一带秦岭岩群碎屑锆石U-Pb年龄研究[J]. 中国地质, 2018, 45(4) : 753-766. https://www.cnki.com.cn/Article/CJFDTOTAL-DIZI201804009.htm
[13] 翟文建, 郭君功, 杨俊峰, 等. 北秦岭双龙—夏馆地区大面积榴闪岩的发现及锆石U-Pb年代学研究[J]. 大地构造与成矿学, 2019, 43(5) : 1052-1068. https://www.cnki.com.cn/Article/CJFDTOTAL-DGYK201905014.htm
[14] Liu Y S, Hu Z C, Zong K Q, et al. Reappraisement and refinement of zircon U-Pb isotope and trace element analyses by LA-ICP-MS[J]. Chinese Science Bulletin, 2010, 55(15) : 1535-1546. doi: 10.1007/s11434-010-3052-4
[15] Ludwig K R. User's Manual for Isoplot/EX Version 3.00: A geochoronological Toolkit for Microsoft Excel[M]. Berkeley Geoch- ronology Center Special Publication, 2003: 1-70.
[16] 耿建珍, 李怀坤, 张健, 等. 锆石Hf同位素组成的LA-MC-ICP-MS测定[J]. 地质通报, 2011, 30(10) : 1508-1513. http://dzhtb.cgs.cn/gbc/ch/reader/view_abstract.aspx?file_no=20111004&flag=1
[17] 肖志斌, 张然, 叶丽娟, 等. 沥青铀矿(GBW04420) 的微区原位U-Pb定年分析[J]. 地质调查与研究, 2020, 43(1) : 1-4. https://www.cnki.com.cn/Article/CJFDTOTAL-QHWJ202001001.htm
[18] 李国占, 郝爽, 王家松, 等. 浅谈多接收器电感耦合等离子体质谱仪的日常维护[J]. 地质调查与研究, 2019, 42(4) : 271-277. doi: 10.3969/j.issn.1672-4135.2019.04.007
[19] Belousova E A, Griffin W L, O'Reilly S Y, et al. Igneous zircon: trace element composition as an indicator of source rock type[J]. Contributions to Mineralogy and Petrology, 2002, 143(5) : 602-622. doi: 10.1007/s00410-002-0364-7
[20] Rubatto D. Zircon trace element geochemistry: partitioning with garnet and the link between U-Pb ages and metamorphism[J]. Chemical Geology, 2002, 184(1) : 123-138.
[21] Sun S S, McDonough W F. Chemical and isotopic systematics of oceanic basalts: implications for mantle composition and processes[J]. Geological Society, London, Special publications, 1989, 42(1) : 313-345.
[22] Gao S, Luo T C, Zhang B R, et al. Structure and composition of the continental crust in East Chian[J]. Science in China(Series D), 1999, 43(2) : 129-140.
[23] Taylor S R, Mclennan S M. The geochemical evolution of the continental crust[J]. Rev. Geophys., 1995, 33: 241-265.
[24] Taylor S R, Mclennan S M. The continental Crust: Its Composition and Evolution[M]. Oxford: Blackwell Scientific Publication, 1985: 1-132.
[25] White A, Chappell B W. Ultrametamorphism and granitoid genesis[J]. Tectonophysics, 1977, 43(1/2) : 7-22.
[26] Sylvester P J. Post-collisional strongly peraluminous granites[J]. Lithos, 1998, 45(1) : 29-44.
[27] 张旗, 李承东. 花岗岩: 地球动力学意义[M]. 北京: 海洋出版社, 2012.
[28] 孙卫东, 李曙光, 孙勇, 等. 北秦岭西峡二郎坪群枕状熔岩中一个岩枕的年代学和地球化学研究[J]. 地质论评, 1996, (2) : 144-153. https://www.cnki.com.cn/Article/CJFDTOTAL-DZLP199602006.htm
[29] Wang H, Wu Y B, Gao S, et al. Continental growth through accreted oceanic arc: Zircon Hf-O isotope evidence for granitoids from the Qinlingorogen[J]. Geochimica et Cosmochimica Acta, 2016, 182: 109-130.
[30] 张宏飞, 张本仁, 赵志丹, 等. 东秦岭造山带花岗岩类长石铅同位素组成及其构造学意义[J]. 地质学报, 1997, 71(2) : 142-149. https://www.cnki.com.cn/Article/CJFDTOTAL-DZXE199702005.htm
[31] 张宏飞, 张本仁, 赵志丹, 等. 东秦岭商丹构造带陆壳俯冲碰撞——花岗质岩浆源区同位素示踪证据[J]. 中国科学(D辑), 1996, (3) : 231-236. https://www.cnki.com.cn/Article/CJFDTOTAL-JDXK199603005.htm
[32] 杨力, 陈福坤, 杨一增, 等. 丹凤地区秦岭岩群片麻岩锆石U-Pb年龄: 北秦岭地体中—新元古代岩浆作用和早古生代变质作用的记录[J]. 岩石学报, 2010, 26(5) : 1589-1603. https://www.cnki.com.cn/Article/CJFDTOTAL-YSXB201005023.htm
[33] 万渝生, 刘敦一, 董春艳, 等. 西峡北部秦岭群变质沉积岩锆石SHRIMP定年: 物源区复杂演化历史和沉积、变质时代确定[J]. 岩石学报, 2011, 27(4) : 1172-1178. https://www.cnki.com.cn/Article/CJFDTOTAL-YSXB201104025.htm
[34] 张宗清, 刘敦一, 付国民. 北秦岭变质地层同位素年代研究[M]. 北京: 地质出版社, 1994.
[35] Yan Q R, Wang Z Q, Hanson A D, et al. SHRIMP Age and Geochemistry of the Bikou Volcanic Terrane: Implications for Neoproterozoic Tectonics on the Northern Margin of the Yangtze Craton[J]. Acta Geologica Sinica, 2003, 77(4) : 479-490.
[36] 张宗清, 张国伟, 唐索寒. 南秦岭变质地层同位素年代学[M]. 北京: 地质出版社, 2002.
[37] 杨斌虎, 张成立, 李雷. 东秦岭陡岭杂岩花岗岩的Sr-Nd-Pb同位素特征及其地质意义[J]. 地质通报, 2011, 30(2/3) : 439-447. http://dzhtb.cgs.cn/gbc/ch/reader/view_abstract.aspx?file_no=2011020330&flag=1
[38] 夏林圻, 夏祖春, 徐学义, 等. 碧口群火山岩岩石成因研究[J]. 地学前缘, 2007, (3) : 84-101. https://www.cnki.com.cn/Article/CJFDTOTAL-DXQY200703011.htm
[39] 曾威, 周红英, 孙丰月, 等. 北秦岭官坡地区稀有金属伟晶岩锡石U-Pb年龄[J]. 地质通报, 2021, 40(12) : 2179-2182. http://dzhtb.cgs.cn/gbc/ch/reader/view_abstract.aspx?file_no=20211220&flag=1
[40] Wang Y, Shi Y H, Chen B L, et al. Zircon U-Pb age of Fengxian acid pyroclastic rocks and its enlightenment to the existence of Pan-African orogeny in the West Qinling Orogenic Belt, China [J]. China Geology, 2019, 4(2) : 557-559.
[41] 张成立, 刘良, 王涛, 等. 北秦岭早古生代大陆碰撞过程中的花岗岩浆作用[J]. 科学通报, 2013, 58(23) : 2323-2329. https://www.cnki.com.cn/Article/CJFDTOTAL-KXTB201323015.htm
[42] 秦拯纬. 北秦岭造山带早古生代岩浆作用及其大陆地壳演化意义[D]. 中国地质大学博士学位论文, 2016.
[43] Maniar P D, Piccoli P M. Tectonic discrimination of granitoids[J]. Geological Society of America bulletin. 1989, 101(5) : 635-643.
[44] Batchelor R A, Bowden P. Petrogenetic interpretation of granitoid rock series using multicationicparameters[J]. Chemical Geology, 1985, 48(1) : 43-55.
[45] 刘良, 廖小莹, 张成立, 等. 北秦岭高压-超高压岩石的多期变质时代及其地质意义[J]. 岩石学报, 2013, 29(5) : 1634-1656. https://www.cnki.com.cn/Article/CJFDTOTAL-YSXB201305015.htm
[46] 陈丹玲, 刘良. 北秦岭榴辉岩及相关岩石年代学的进一步确定及其对板片俯冲属性的约束[J]. 地学前缘, 2011, 18(2) : 158-169. https://www.cnki.com.cn/Article/CJFDTOTAL-DXQY201102020.htm
[47] 陈丹玲, 刘良, 廖小莹, 等. 北秦岭高压- 超高压岩石的时空分布、P-T-t演化及其形成机制[J]. 地球科学, 2019, 44(12) : 4017-4027. https://www.cnki.com.cn/Article/CJFDTOTAL-DQKX201912007.htm
[48] Liu L, Liao X M, Wang Y W, et al. Early Paleozoic tectonic evolution of the North Qinling Orogenic Belt in Central China: Insights on continental deep subduction and multiphase exhumation[J]. Earth-Science Reviews, 2016, 159: 58-81.
[49] 郭彩莲, 陈丹玲, 樊伟, 等. 豫西二郎坪满子营花岗岩体地球化学及年代学研究[J]. 岩石矿物学杂志, 2010, 29(1) : 15-22. https://www.cnki.com.cn/Article/CJFDTOTAL-YSKW201001003.htm
[50] 雷敏. 秦岭造山带东部花岗岩成因及其与造山带构造演化的关系[D]. 中国地质科学院博士学位论文, 2010.
-
