Application of Hand-held X-ray Fluorescence Spectrometer in the Exploration of Cobalt-rich Crust Resources
-
摘要: 便携式X射线荧光光谱仪具有快速、无损分析的特点，本文重点研究了手持式X射线荧光光谱仪在富钴结壳碎块和浅钻岩心野外现场原位分析中的应用能力。采用压片法制样，以富钴结壳国家标准物质（GBW 07337~GBW 07339）和多金属结核国家标准物质（GBW 07249、GBW 07295和GBW 07296）作为校准样品，建立了手持式X射线荧光光谱仪测定富钴结壳样品的校准曲线。方法经国家标准物质GBW 07339验证，元素Mn、Fe、Co、Ni和Cu的精密度（RSD）在0.3%～3.0%之间，满足富钴结壳样品现场分析的要求。在海上资源勘查现场，应用手持式X射线荧光光谱仪对富钴结壳碎块和浅钻岩心原样进行了现场原位分析。富钴结壳碎块原样烘干后直接测试分析数据与实验室压片制样XRF分析数据对比表明，Mn、Fe、Co、Ni和Cu元素的测定值一致性良好；浅钻岩心的原位分析数据与实验室人工分层分析数据对比表明，各层位Mn、Fe、Co、Ni和Cu元素直接测试数据与实验室压片制样XRF分析数据分布趋势基本一致。实际应用研究表明，手持式X射线荧光光谱仪适合于现场原位分析，满足野外富钴结壳资源快速评价的要求，同时原位分析能更真实地反映原始富钴结壳岩心不同层位中各元素的变化特征，为进一步研究富钴结壳成矿机制提供更丰富的数据资料。
-
关键词:
- 手持式X射线荧光光谱仪 /
- 富钴结壳资源勘查 /
- 原位分析

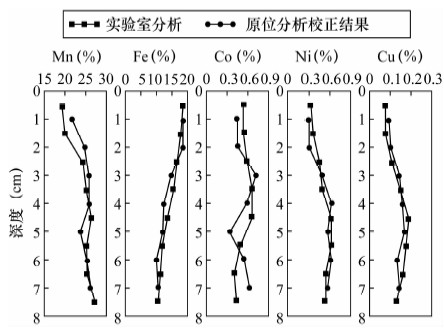

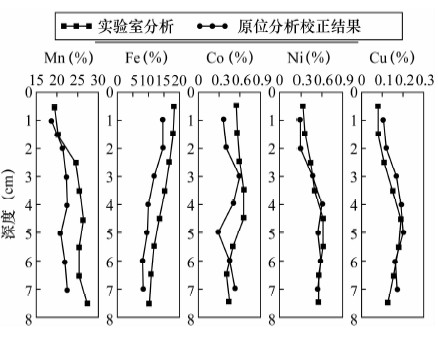

Abstract: A portable X-ray Fluorescence Spectrometer (XRF) can be used for field analysis with the advantages of rapidity and non-destruction; the applications of hand-held XRF in in-situ analysis of cobalt-rich crust chunks and core are described. The calibration curve for cobalt-rich crusts was established using national certified reference materials such as GBW 07337, GBW 07338 and GBW 07339. The proposed method has been validated by analyzing certified reference materials; the relative standard deviation was 0.3%-3.0%, which is appropriate for analysis of cobalt-rich crust in field. The hand-held XRF was utilized for in-situ analysis of cobalt-rich crust chunks and drilling core in marine exploration. A comparison of the results from in-situ analysis of dried crust chunks and those obtained from the hand-held XRF instrument after pressed powder sample preparation is presented, and good consistencies were found for the elements of interest. The data of in-situ analysis of crust core was evaluated by comparing with that obtained from laboratory testing after powder was layered artificially; the results based on two different methods indicate that distribution features of Mn, Fe, Co, Ni and Cu are similar. The methodology has been proved to be an effective method for in-situ analysis, which can meet the need of fast evaluation of cobalt-rich crusts resources, meanwhile, the proposed method, is appropriate for distribution research of Mn, Fe, Co, Ni and Cu in original cobalt-rich crust, which is helpful for the study of mineralization in different metallogenic stages of the crust. -
-
表 1 各元素校准曲线
Table 1. Calibration curve of the elements
分析元素 校准方程 相关系数 R2 Mn y=0.9142 x+1.5633 0.9994 Fe y=1.0244 x-0.2017 0.9998 Co y=1.1543 x+0.1702 0.9896 Ni y=1.1011 x+0.0139 0.9991 Cu y=1.1144 x+0.0460 0.9981
下载: 导出CSV
表 2 方法精密度
Table 2. Precision tests of the method
元素 元素含量(%) RSD(%) 标准值 分次测定值 平均值 Mn 20.50 20.70 20.57 20.53 20.66 20.61 20.61 0.3 Fe 14.90 14.71 14.88 14.78 14.84 14.96 14.83 0.6 Co 0.56 0.57 0.56 0.56 0.56 0.57 0.56 1.0 Ni 0.40 0.39 0.40 0.40 0.42 0.41 0.40 2.8 Cu 0.15 0.15 0.15 0.15 014 0.15 0.15 3.0
下载: 导出CSV
表 3 样品分析结果对比
Table 3. Comparison of analytical results with different methods
站位号 分析方式 元素含量(%) Mn Fe Co Ni Cu JQ-1 原样 22.25 8.38 0.39 0.55 0.17 烘干样 25.85 10.69 0.49 0.70 0.18 压片制样 26.19 10.81 0.51 0.75 0.17 JQ-2 原样 21.79 11.59 0.66 0.47 0.15 烘干样 26.46 14.23 0.77 0.59 0.17 压片制样 26.95 13.96 0.81 0.63 0.15 JQ-3 原样 20.08 15.66 0.42 0.29 0.12 烘干样 23.64 20.19 0.52 0.38 0.11 压片制样 23.41 20.25 0.55 0.41 0.11 JQ-4 原样 20.45 7.47 0.48 0.52 0.14 烘干样 23.18 10.51 0.58 0.69 0.13 压片制样 22.86 10.23 0.59 0.66 0.13
下载: 导出CSV
-
[1] 王建平.大洋中Ni、Co、Pt资源概况及开发建议[J].中国矿业,2004,13(8):40-43. http://www.cnki.com.cn/Article/CJFDTOTAL-ZGKA200408011.htm
[2] 刘玉山,吴必豪.海底金属矿产资源的开发——回顾与未来展望[J].矿床地质,2005,24(1):81-84. http://www.cnki.com.cn/Article/CJFDTOTAL-KCDZ200501011.htm
[3] 詹秀春,樊兴涛,李迎春,王祎亚.直接粉末制样-小型偏振激发能量色散X射线荧光光谱法分析地质样品中多元素[J].岩矿测试,2009,28(6):501-506. http://www.cnki.com.cn/Article/CJFDTOTAL-YKCS200906000.htm
[4] 张学华,吉昂,卓尚军,陶光仪.SZ-1型同位素X射线荧光分析仪分析多金属结核中锰铁钴镍铜[J].岩矿测试,1999,18(2):124-127. http://www.cnki.com.cn/Article/CJFDTOTAL-YKCS902.009.htm
[5] 吴小勇,陈永君,王毅民.Si-PIN探测器便携式X荧光分析仪在海洋多金属结核结壳分析中的应用[J].岩矿测试,2002,21(1):33-36. http://www.cnki.com.cn/Article/CJFDTOTAL-YKCS200201007.htm
[6] 葛良全,赖万昌,林延畅.现场X射线荧光检测技术研究[J].四川地质学报,2006, 26(2):117-120. http://www.cnki.com.cn/Article/CJFDTOTAL-SCDB200602016.htm
[7] 樊兴涛,李迎春,王广,白金峰,姚文生,袁继海,詹秀春.车载台式能量色散X射线荧光光谱仪在地球化学勘查现场分析中的应用[J].岩矿测试,2011,30(2):155-159. http://www.cnki.com.cn/Article/CJFDTOTAL-YKCS201102008.htm
[8] 葛良全.现场X射线荧光分析技术[J].岩矿测试,2013,32(2):203-212. http://www.cnki.com.cn/Article/CJFDTOTAL-YKCS201302005.htm
[9] 葛良全,赖万昌,林玲,林延畅.水底沉积物原位X射线荧光测量中水分的影响与校正[J].核技术,2004,27(4):273-276. http://www.cnki.com.cn/Article/CJFDTOTAL-HJSU200404007.htm
[10] 夏庆霖,成秋明,陆建培,肖文,桑浩,袁兆宪,刘艳,邱俊玲.便携式X射线荧光光谱技术在泥河铁矿岩心矿化蚀变信息识别中的应用[J].地球科学——中国地质大学学报,2011,36(2):336-340. http://www.cnki.com.cn/Article/CJFDTOTAL-DQKX201102020.htm
[11] Gazley M F, Vry J K, Plessis E D, Handler M R.Application of portable X-ray fluorescence analyses to metabasalt stratigraphy, Plutonic Gold Mine, Western Australia[J].Journal of Geochemical Exploration,2011,110:74-80. doi: 10.1016/j.gexplo.2011.03.002
[12] Rowe H, Hughes N, Robinson K.The quantification and application of handheld energy-dispersive X-ray fluorescence (ED-XRF) in mudrock chemostratigraphy and geochemistry[J].Chemical Geology,2012,324:122-131.
[13] 韩平,王纪华,陆安祥,马智宏,潘立刚.便携式X射线荧光光谱分析仪测定土壤中重金属[J].光谱学与光谱分析,2012,32(3):826-829. http://www.cnki.com.cn/Article/CJFDTOTAL-GUAN201203056.htm
[14] 李强,张学华.手持式X射线荧光光谱仪测定富钴结壳样品中锰铁钴镍铜锌[J].岩矿测试,2013,32(5):724-728. http://www.cnki.com.cn/Article/CJFDTOTAL-YKCS201305011.htm
[15] 赵宏樵,郑存江,初凤友,王笑笑.富钴结壳中成矿元素的微区分布特征及其地质意义[J].海洋学研究,2009,27(2):84-89. http://www.cnki.com.cn/Article/CJFDTOTAL-DHHY200902012.htm
-
