An experimental study of the ecological restoration of rock slope based on polyurethane composite-based materials
-
摘要:
为解决目前岩质边坡客土喷播生态修复中存在的客土基材滑落、坡面表层土流失严重和植被生长差等问题，采用聚氨酯有机高分子材料与土体结合组成聚氨酯复合基材，用于边坡生态修复。通过室内试验对其强度、抗冲刷性以及影响植被生长情况进行研究，并在典型岩质边坡上进行现场试验，对聚氨酯复合基材的有效性进行验证。研究结果表明：聚氨酯有机高分子对于复合基材的强度和抗冲刷性具有显著的提升作用，随着聚氨酯有机高分子浓度增加，聚氨酯复合基材的强度增加，抗冲刷能力提高。与未添加的试样进行对比，浓度为1%聚氨酯复合基材的强度为113.63 kPa，提高幅度约为95.45%；20%浓度试样的峰值冲刷量为28.8 g，降低幅度约为71.2%。聚氨酯有机高分子可以有效促进植被种子的发芽与生长。当聚氨酯有机高分子浓度由0%提高到10%时，种子的发芽率由12%提升到68%。但当聚氨酯有机高分子浓度过大时，会对植被的发芽和生长发生抑制作用。研究结果可为岩质边坡的生态防护提供一定的参考与借鉴。

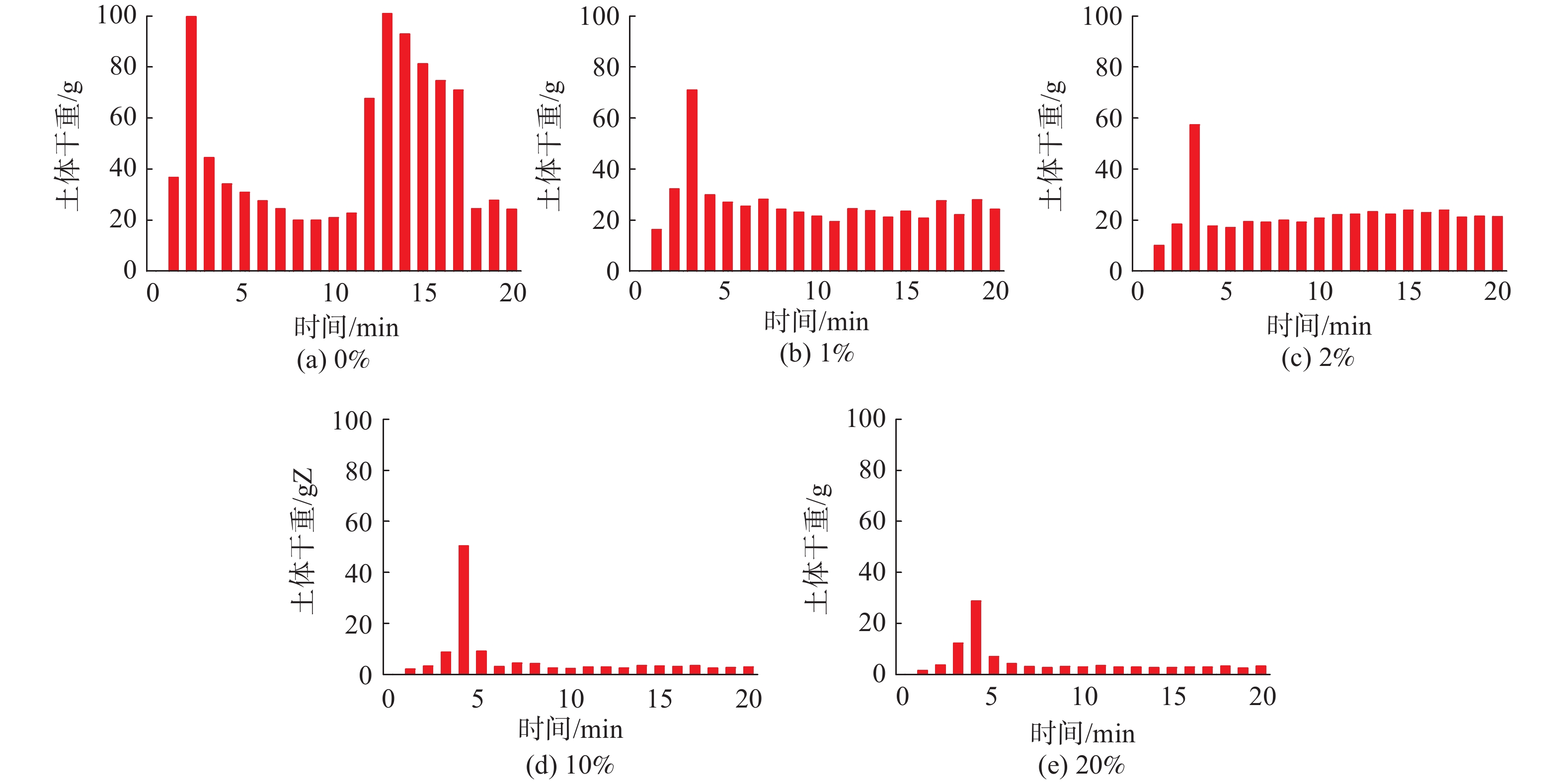

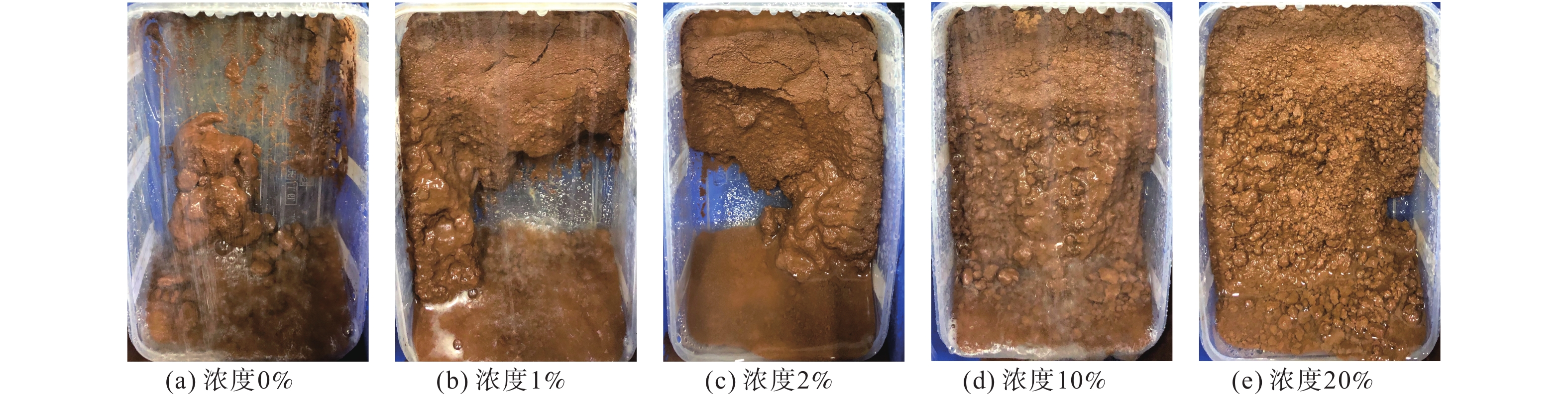

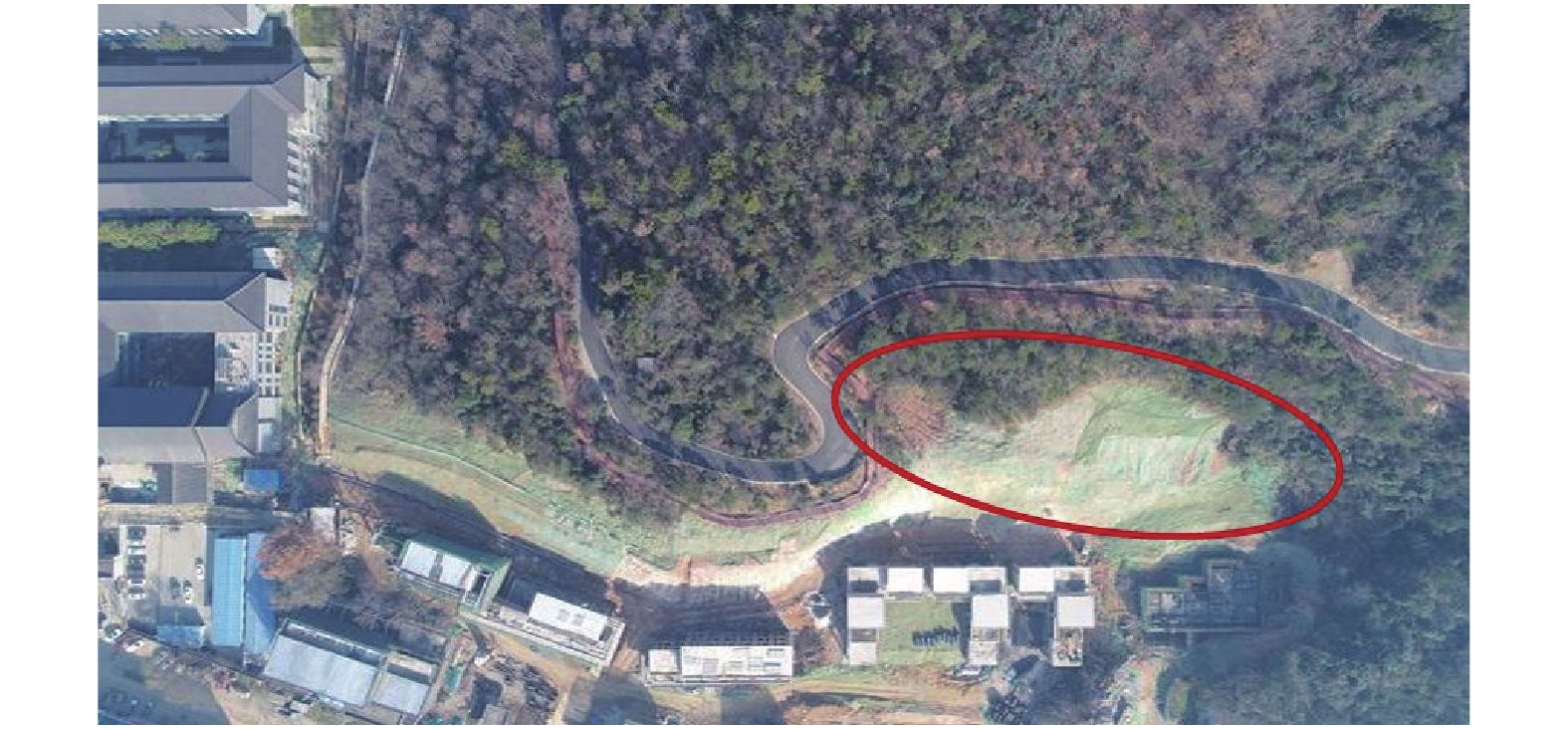

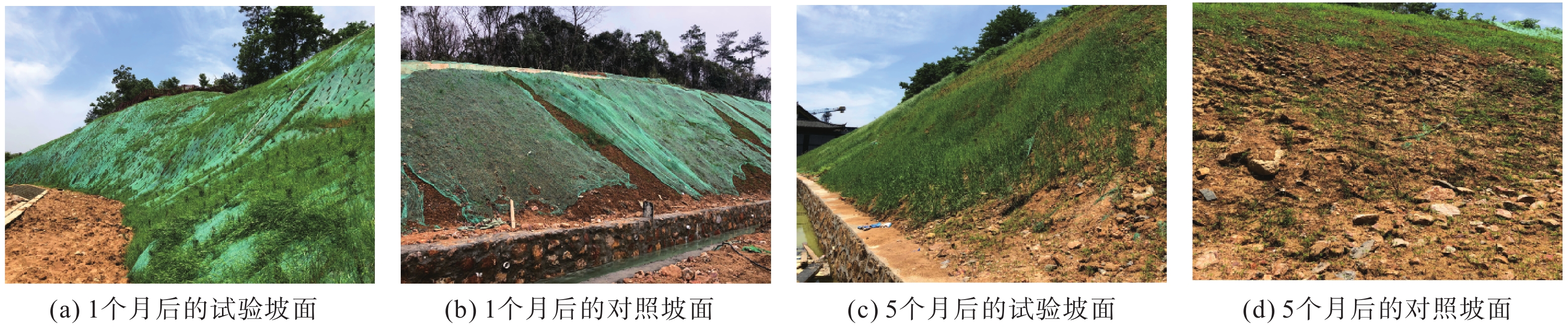

Abstract:In view of the problems existing in the ecological restoration of rock slope, such as the slide of the soil substrate, the serious loss of the surface soil and the poor growth of vegetation, etc., in this paper, polyurethane organic polymer materials and soil are used to form a polyurethane composite substrate. The strength, erosion resistance and vegetation growth of the composite substrate are studied through laboratory tests. In addition, a suitable site is chosen for field test to verify the effectiveness of the polyurethane composite substrate. The specific research results show that the existence of the polyurethane organic polymer has a significant effect on the strength and anti-scour of the composite substrate, and with the increasing concentration of the polyurethane organic polymer, the strength and anti-scour of the polyurethane composite substrate also increase. Compared with the specimens not added, the strength of 1% polyurethane composite substrate is 113.63 kPa, with an increasing rate of about 95.45%. The peak scouring amount of 20% polyurethane composite substrate is 28.8 g, with a decreasing rate of about 71.2%. The polyurethane organic polymer can effectively improve the germination and growth of vegetation seeds. When the concentration of polyurethane increases from 0% to 10%, the germination rate of seeds increases from 12% to 68%. When the concentration of the polyurethane organic polymer is too high, it will inhibit the germination and growth of vegetation. The polyurethane composite substrate can effectively repair the rock slope, and the effect is significant. The research results may provide some references for the ecological protection of rock slope, and are of important theoretical and practical significance.
-
Key words:
- rock slope /
- polyurethane /
- composite-based material /
- external soil /
- ecological restoration
-
-
表 1 下蜀土基本物理性质
Table 1. Basic physical properties of the Xiashu soil
物理指标 比重 液限/% 塑限/% 塑性指数 最优含水率/% 最大干密度/（g·cm−3） 颗粒百分含量/% 0.075～1.000 mm 0.005～0.075 mm <0.005 mm 取值 2.71 37.1 20.5 18.2 19.5 1.72 7.7 68.5 23.8
下载: 导出CSV
表 2 强度试验结果
Table 2. Strength test results
编号 聚氨酯浓度/% 土层峰值强度/kPa 土层残余强度/kPa 1 0 58.14 24.28 2 1 113.63 57.18 3 2 120.19 80.77 4 10 132.69 88.77 5 20 142.00 88.48
下载: 导出CSV
表 3 各试样种子发芽率
Table 3. Statistics of seed germination rate of each specimen
聚氨酯有机高分子浓度/% 各种子发芽率/% 累计发芽率/% 苜蓿 紫穗槐 马棘 0 5 3 4 12 1 16 13 5 34 2 32 30 3 65 10 35 32 1 68 20 6 5 0 11
下载: 导出CSV
-
[1] 何建军. 岩质边坡生态防护技术研究[D]. 长沙: 中南大学, 2005.
HE Jianjun. Study on ecological protection technology of rock slope[D]. Changsha: Central South University, 2005. (in Chinese with English abstract)
[2] 钟春欣, 张玮, 王树仁. 三维植被网加筋草皮坡面土壤侵蚀试验研究[J]. 河海大学学报(自然科学版),2007,35(3):258 − 261. [ZHONG Chunxin, ZHANG Wei, WANG Shuren. Experimental research on soil erosion of turf slope reinforced by 3D vegetation net[J]. Journal of Hohai University (Natural Sciences),2007,35(3):258 − 261. (in Chinese with English abstract)
[3] 杨翔, 江真, 阳长江, 等. 岩石边坡肋柱植生袋+喷播植草联合植生技术的应用[J]. 重庆建筑,2015,14(7):52 − 54. [YANG Xiang, JIANG Zhen, YANG Changjiang, et al. Application of combined planting and growing technology of vegetation bag and spray seeding for rock slope[J]. Chongqing Architecture,2015,14(7):52 − 54. (in Chinese with English abstract) doi: 10.3969/j.issn.1671-9107.2015.07.052
[4] 白丽华. 黄土高原地区管道水工保护及综合治理模式研究[D]. 咸阳: 西北农林科技大学, 2009.
BAI Lihua. Pipeline protection and comprehensive management of hydraulic model in loess plateau[D]. Xianyang: Northwest A&F University, 2009. (in Chinese with English abstract)
[5] 杜娟. 客土喷播施工法在日本的应用与发展[J]. 公路,2000,45(7):72 − 73. [DU Juan. The application and development of the construction method of spraying and sowing of the guest soil in Japan[J]. Highway,2000,45(7):72 − 73. (in Chinese with English abstract) doi: 10.3969/j.issn.0451-0712.2000.07.020
[6] 李旭光, 毛文碧, 徐福有. 日本的公路边坡绿化与防护—1994年赴日本考察报告[J]. 公路交通科技,1995,12(2):59 − 64. [LI Xuguang, MAO Wenbi, XU Fuyou. Greening and protection of highway slopes in Japan: A report on a visit to Japan in 1994[J]. Journal of Highway and Transportation Research and Development,1995,12(2):59 − 64. (in Chinese)
[7] 孔令伟, 薛春晓, 苏凤, 等. 不同建植技术对露天煤矿排土场生态修复效果的影响及评价[J]. 水土保持研究,2017,24(1):187 − 193. [KONG Lingwei, XUE Chunxiao, SU Feng, et al. Evalution and effect of different construction techniques on the ecological restoration of the stackpile in opencast coal mine[J]. Research of Soil and Water Conservation,2017,24(1):187 − 193. (in Chinese with English abstract)
[8] YANG Y, YANG J Y, ZHAO T N, et al. Ecological restoration of highway slope by covering with straw-mat and seeding with grass–legume mixture[J]. Ecological Engineering,2016,90:68 − 76. doi: 10.1016/j.ecoleng.2016.01.052
[9] 李锐, 黄永刚, 胡筱敏. 一种植入型生态护坡的制备工艺及施工方法[J]. 东北大学学报(自然科学版),2018,39(8):1201 − 1204. [LI Rui, HUANG Yonggang, HU Xiaomin. A preparation technology and construction method of implantable ecological slope protection[J]. Journal of Northeastern University (Natural Science),2018,39(8):1201 − 1204. (in Chinese with English abstract) doi: 10.12068/j.issn.1005-3026.2018.08.027
[10] MERLIN G, DI-GIOIA L, GODDON C. Comparative study of the capacity of germination and of adhesion of various hydrocolloids used for revegetalization by hydroseeding[J]. Land Degradation & Development,1999,10(1):21 − 34.
[11] ROWE E C, WILLIAMSON J C, JONES D L, et al. Initial tree establishment on blocky quarry waste ameliorated with hydrogel or slate processing fines[J]. Journal of Environmental Quality,2005,34(3):994 − 1003. doi: 10.2134/jeq2004.0287
[12] 章梦涛, 邱金淡, 颜冬. 客土喷播在边坡生态修复与防护中的应用[J]. 中国水土保持科学,2004,2(3):10 − 12. [ZHANG Mengtao, QIU Jindan, YAN Dong. Application of external-soil spray seeding technique to slopes natural eco-restoration and protection[J]. Science of Soil and Water Conservation,2004,2(3):10 − 12. (in Chinese with English abstract) doi: 10.3969/j.issn.1672-3007.2004.03.003
[13] 陈意昌, 巫清志, 张俊斌, 等. 崩塌地喷植基材不同配方对种子发芽的影响[J]. 福建农业学报,2013,28(11):1099 − 1105. [CHEN Yichang, WU Qingzhi, ZHANG Junbin, et al. The cement and mushroom waste compost of different vegetation materials with hydroseeding for seed germination on landslide[J]. Fujian Journal of Agricultural Sciences,2013,28(11):1099 − 1105. (in Chinese with English abstract) doi: 10.3969/j.issn.1008-0384.2013.11.007
[14] GAO G J, YUAN J G, HAN R H, et al. Characteristics of the optimum combination of synthetic soils by plant and soil properties used for rock slope restoration[J]. Ecological Engineering,2007,30(4):303 − 311. doi: 10.1016/j.ecoleng.2007.01.011
[15] LATIFI N, MEEHAN C, ABD MAJID M Z, et al. Strengthening montmorillonitic and kaolinitic clays using a calcium-based non-traditional additive: A micro-level study[J]. Applied Clay Science,2016,132/133:182 − 193. doi: 10.1016/j.clay.2016.06.004
[16] MARTO A, LATIFI N, EISAZADEH A. Effect of non-traditional additives on engineering and microstructural characteristics of laterite soil[J]. Arabian Journal for Science and Engineering,2014,39(10):6949 − 6958. doi: 10.1007/s13369-014-1286-1
[17] HONG S H, LEE E Y. Restoration of eroded coastal sand dunes using plant and soil-conditioner mixture[J]. International Biodeterioration & Biodegradation,2016,113:161 − 168.
[18] LATIFI N, HORPIBULSUK S, MEEHAN C L, et al. Xanthan gum biopolymer: an eco-friendly additive for stabilization of tropical organic peat[J]. Environmental Earth Sciences,2016,75(9):1 − 10.
[19] 王银梅, 韩文峰, 谌文武. 新型高分子固化材料与水泥加固黄土力学性能对比研究[J]. 岩土力学,2004,25(11):1761 − 1765. [WANG Yinmei, HAN Wenfeng, CHEN Wenwu. Research on comparison between mechanical behaviors of loess solidified with new polymer material and cement[J]. Rock and Soil Mechanics,2004,25(11):1761 − 1765. (in Chinese with English abstract) doi: 10.3969/j.issn.1000-7598.2004.11.017
[20] REZAEIMALEK S, HUANG J, BIN-SHAFIQUE S. Evaluation of curing method and mix design of a moisture activated polymer for sand stabilization[J]. Construction and Building Materials,2017,146:210 − 220. doi: 10.1016/j.conbuildmat.2017.04.093
[21] LIU J, BAI Y X, SONG Z Z, et al. Evaluation of strength properties of sand modified with organic polymers[J]. Polymers,2018,10(3):287. doi: 10.3390/polym10030287
[22] 中华人民共和国水利部. 土工试验方法标准: GB/T 50123—1999[S]. 北京: 中国计划出版社, 1999.
Ministry of Water Resources of the People’s Republic of China. Standard for Soil Test Method: GB/T 50123—1999[S]. Beijing: China Planning Press, 1999. (in Chinese)
-
