摘要:

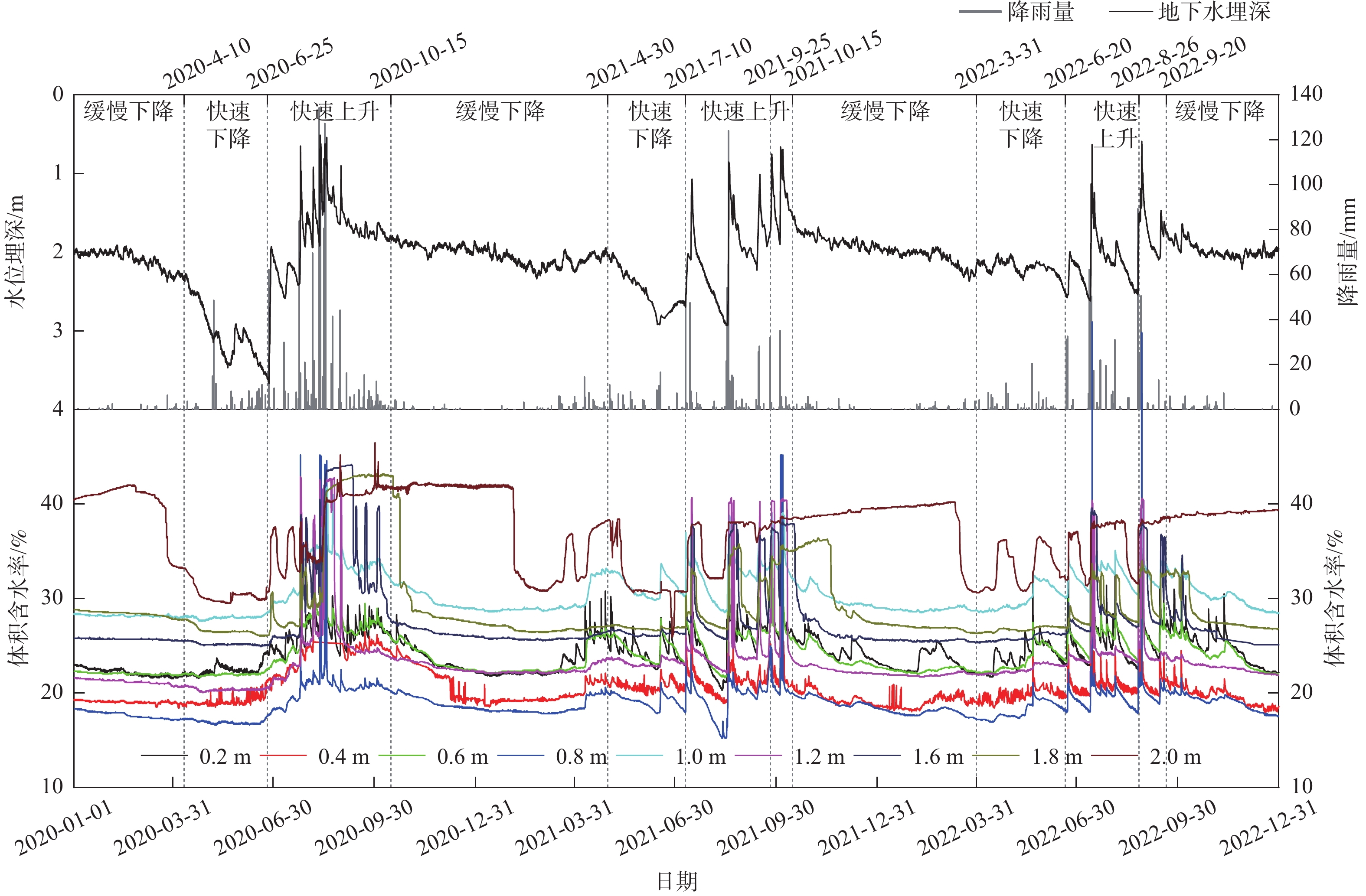

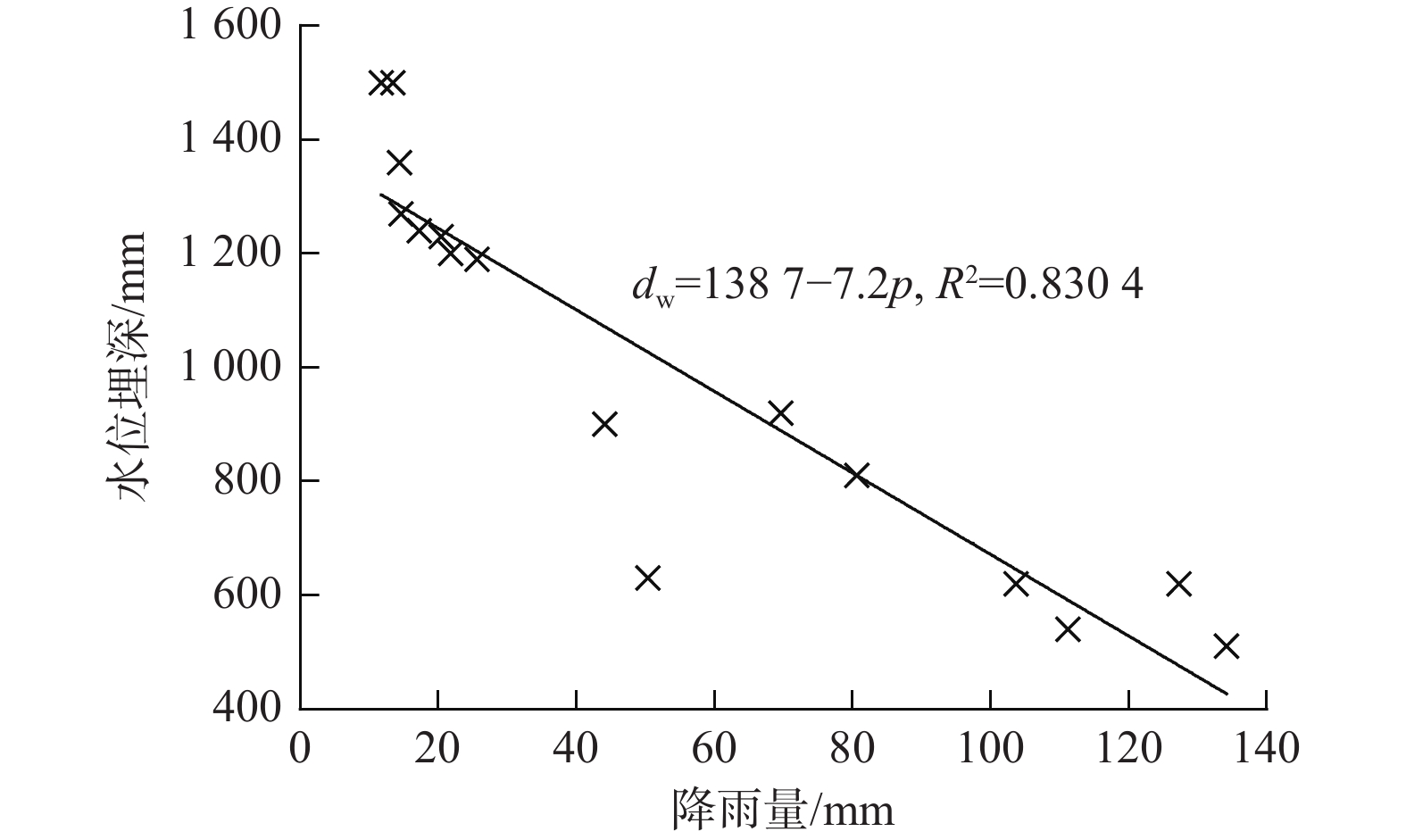

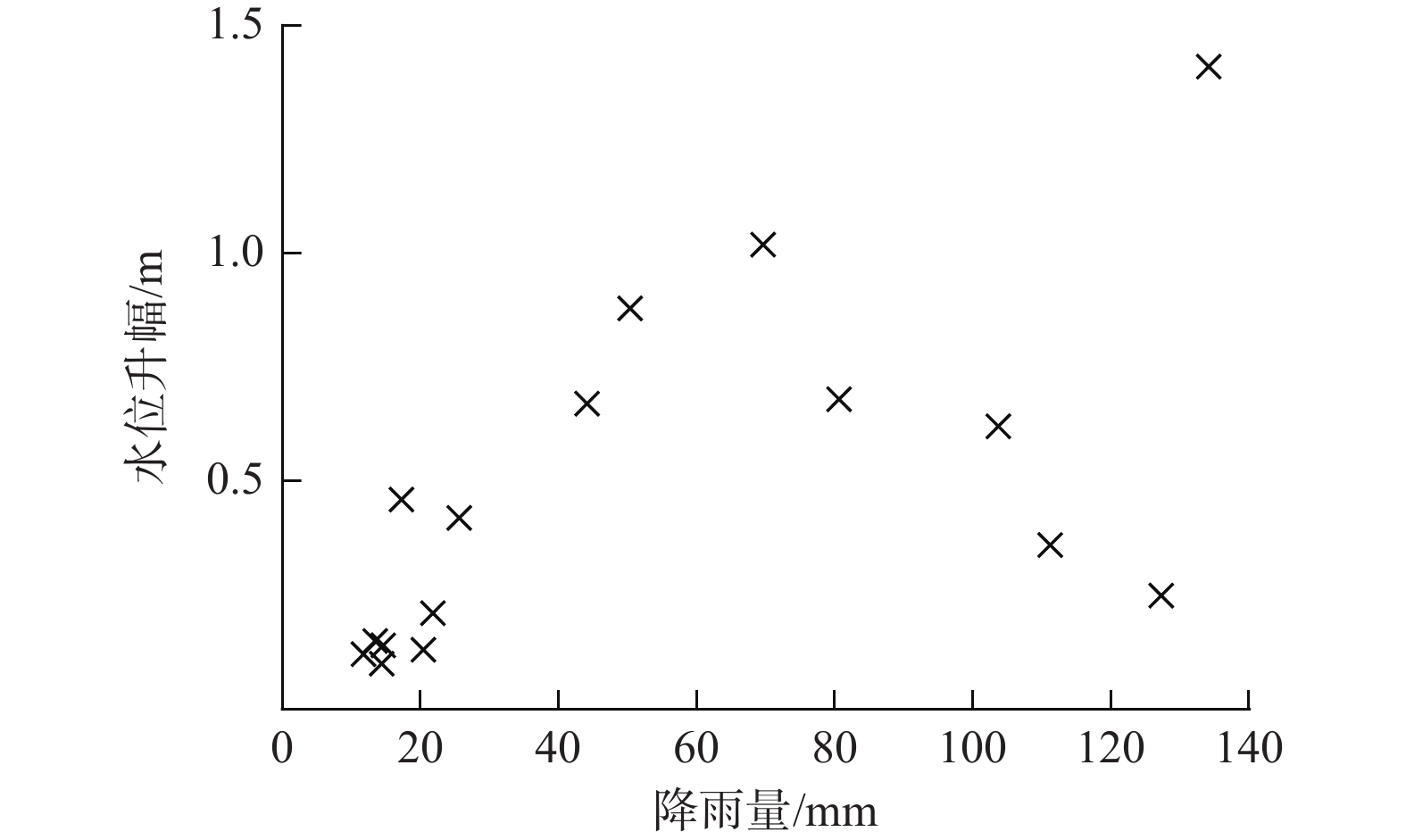

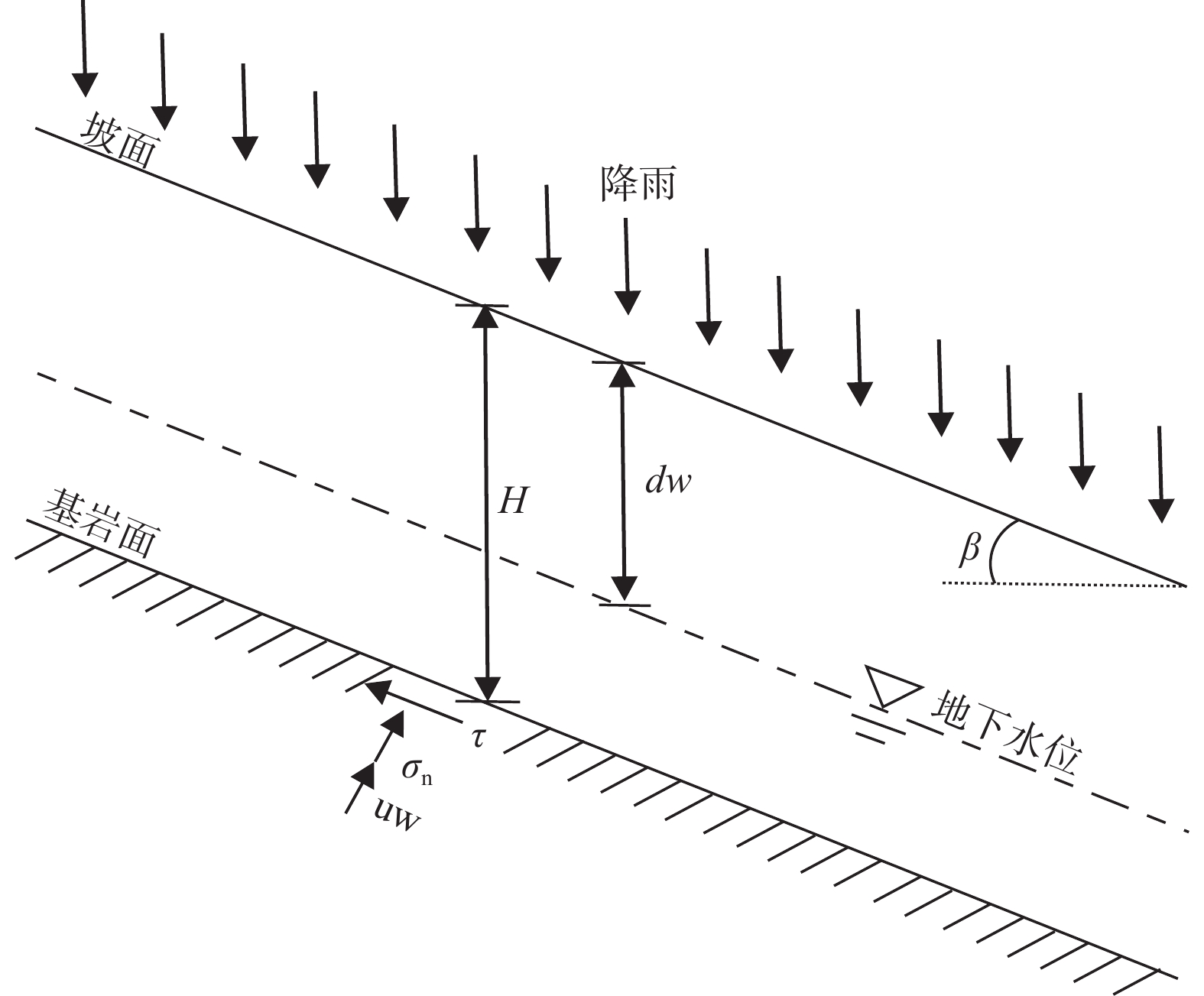

强降雨引起的滑坡多以浅表堆积层滑移为主，易群发、危害性大，其地下水和土体内部含水率对降雨的水文响应机制复杂，难以精准开展稳定性预测。为研究降雨引起的滑坡水文响应对稳定性的影响，以四川省青川县后山里滑坡为例，开展现场降雨入渗监测、相关性分析和力学分析。通过连续3年的降雨量、土体水分和地下水位等监测，分析降雨入渗-土体体积含水率-地下水位的响应规律，得到降雨量与地下水位的相关关系，并基于无限斜坡稳定性计算公式构建基于降雨量和地下水位埋深的浅层滑坡稳定性预测模型。结果表明：（1）年内地下水呈周期性波动，分为缓慢下降期、快速下降期和快速上升期三个阶段，且降雨量与地下水埋深呈线性负相关，与水位升幅相关性不显著；（2）根据稳定性预测模型确定了该滑坡失稳的临界降雨阈值为81.8 mm/d，地下水埋深阈值为0.73 m。研究结果可为降雨诱发浅表堆积层滑坡的预警预报提供参考。
Abstract:The rainfall-induced shallow landslides are primarily debris landslides, which features simultaneity with significant hazard, and the hydrological response mechanism of water table and soil moisture content to precipitation of this type of landslide is sophisticated, which makes it difficult to predict the slope stability accurately. To further study the influence of the rainfall-triggered internal hydrological responses on slope-stability, on-site precipitation infiltration monitoring, correlation analysis and mechanical analysis were carried out on the Houshanli landslide in Qingchuan County, Sichuan Province. The relationship between precipitation and water table was proposed based on climate and hydrological monitoring data obtained within three year interval. The response of rainfall infiltration, soil volumetric water content and water table were analyzed. The results indicate that: (1) groundwater exhibits periodic fluctuations throughout the year, characterized by three phases of slow decline, rapid decline, and rapid ascent; a linear negative correlation between precipitation and water table was found, and no significant correlation was observed with the water table increment; (2) through the infinite slope model and the relationship between precipitation and water table, a prediction model for shallow landslide stability was constructed. The precipitation threshold (81.8 mm/d) and water table threshold (0.73 m) were determined which has good agreement with the actual situations. This provides an early warning method for rainfall-induced shallow landslides by monitoring these two factors.
-
Key words:
- debris landslide /
- precipitation /
- water table /
- landslide stability /
- early warning
-
-
表 1 7—8月主要降雨事件中降雨量及其引起的地下水位变化参数
Table 1. Daily precipitation and the related groundwater level variations in July and August
日期 水位升幅
当日降雨量/mm降雨前初始
水位埋深/m降雨截止最高
水位深度/m水位升幅/m 2020-07-10* 29.9 2.59 2.55 0.04 2020-07-24* 83.9 2.40 0.65 1.75 2020-07-25* 16.3 1.32 0.97 0.35 2020-07-29* 21.0 1.93 1.64 0.29 2020-07-30 13.4 1.65 1.50 0.15 2020-08-05* 69.6 1.94 0.92 1.02 2020-08-06 21.8 1.41 1.20 0.21 2020-08-11 134.2 1.92 0.51 1.41 2020-08-12 103.7 1.24 0.62 0.62 2020-08-14 14.4 1.46 1.36 0.10 2020-08-15 80.6 1.49 0.81 0.68 2020-08-16 127.3 0.87 0.62 0.25 2020-08-17 111.2 0.90 0.54 0.36 2020-08-22 20.4 1.36 1.25 0.11 2020-08-23* 41.5 1.19 1.16 0.03 2020-08-30 44.1 1.57 0.90 0.67 2021-07-10* 52.6 2.68* 2.44 0.24 2021-07-14 47.5 2.10 1.88 0.22 2021-08-16* 21.6 2.93 2.91 0.02 2021-08-17* 54.2 2.93 1.74 1.19 2021-08-18* 124.1 1.68 0.85 0.83 2021-08-19* 12.7 1.31 1.08 0.23 2021-08-21* 15.2 1.65 1.54 0.11 2021-08-22 14.6 1.41 1.30 0.11 2022-07-12* 62.4 2.62 2.45 0.17 2022-07-13* 54.9 2.42 1.13 1.29 2022-07-14* 50.4 1.51 0.63 0.88 2022-07-16 17.2 1.70 1.28 0.42 2022-07-22* 22.1 2.00 1.81 0.19 2022-07-27* 19.6 2.12 2.04 0.08 2022-08-04* 31.1 2.17 1.91 0.26 2022-08-25* 89.4 2.52 1.51 1.01 2022-08-26 11.7 1.62 1.50 0.12 2022-08-27 25.6 1.61 1.19 0.42 2022-08-28* 50.6 1.44 0.59 0.85 注：* 剔除降雨强度<10 mm/h和地下水位埋深>2 m的数据。
下载: 导出CSV
-
[1] 李艳杰,唐亚明,邓亚虹,等. 降雨型浅层黄土滑坡危险性评价与区划——以山西柳林县为例[J]. 中国地质灾害与防治学报,2022,33(2):105 − 114. [LI Yanjie,TANG Yaming,DENG Yahong,et al. Hazard assessment of shallow loess landslides induced by rainfall:A case study of Liulin County of Shanxi Province[J]. The Chinese Journal of Geological Hazard and Control,2022,33(2):105 − 114. (in Chinese with English abstract)] doi: 10.16031/j.cnki.issn.1003-8035.2022.02-13
LI Yanjie, TANG Yaming, DENG Yahong, et al . Hazard assessment of shallow loess landslides induced by rainfall: A case study of Liulin County of Shanxi Province[J]. The Chinese Journal of Geological Hazard and Control,2022 ,33 （2 ）:105 −114 . （in Chinese with English abstract）[2] 常金源,包含,伍法权,等. 降雨条件下浅层滑坡稳定性探讨[J]. 岩土力学,2015,36(4):995 − 1001. [CHANG Jinyuan,BAO Han,WU Faquan,et al. Discussion on stability of shallow landslide under rainfall[J]. Rock and Soil Mechanics,2015,36(4):995 − 1001. (in Chinese with English abstract)]
CHANG Jinyuan, BAO Han, WU Faquan, et al . Discussion on stability of shallow landslide under rainfall[J]. Rock and Soil Mechanics,2015 ,36 （4 ）:995 −1001 . （in Chinese with English abstract）[3] 沈佳,董岩松,简文彬,等. 台风暴雨型土质滑坡演化过程研究[J]. 工程地质学报,2020,28(6):1290 − 1299. [SHEN Jia,DONG Yansong,JIAN Wenbin,et al. Study on evolution process of landslides triggered by typhoon rainstorm[J]. Journal of Engineering Geology,2020,28(6):1290 − 1299. (in Chinese with English abstract)] doi: 10.13544/j.cnki.jeg.2019-540
SHEN Jia, DONG Yansong, JIAN Wenbin, et al . Study on evolution process of landslides triggered by typhoon rainstorm[J]. Journal of Engineering Geology,2020 ,28 （6 ）:1290 −1299 . （in Chinese with English abstract）[4] 自然资源部. 全国地质灾害通报[R]. 北京:中国地质环境监测院. 2023. [Ministry of Land and Resources,PRC. China Geological Hazard Bulletin[R]. Beijing:China Inistitute of Geological Environment Monitoring. 2023. (in Chinese)].]
Ministry of Land and Resources, PRC. China Geological Hazard Bulletin[R]. Beijing: China Inistitute of Geological Environment Monitoring. 2023. （in Chinese）]. [5] 李媛,孟晖,董颖,等. 中国地质灾害类型及其特征——基于全国县市地质灾害调查成果分析[J]. 中国地质灾害与防治学报,2004,15(2):29 − 34. [LI Yuan,MENG Hui,DONG Ying,et al. Main Types and characterisitics of geo-hazard in China:Based on the results of geo-hazard survey in 290 counties[J]. The Chinese Journal of Geological Hazard and Control,2004,15(2):29 − 34. (in Chinese with English abstract)]
LI Yuan, MENG Hui, DONG Ying, et al . Main Types and characterisitics of geo-hazard in China: Based on the results of geo-hazard survey in 290 counties[J]. The Chinese Journal of Geological Hazard and Control,2004 ,15 （2 ）:29 −34 . （in Chinese with English abstract）[6] 李绍红,朱建东,王少阳,等. 考虑降雨类型的基岩型浅层边坡稳定性分析方法[J]. 水文地质工程地质,2018,45(2):131 − 135. [LI Shaohong,ZHU Jiandong,WANG Shaoyang,et al. Stability analysis methods for the bedrock shallow slope considering rainfall types[J]. Hydrogeology & Engineering Geology,2018,45(2):131 − 135. (in Chinese with English abstract)]
LI Shaohong, ZHU Jiandong, WANG Shaoyang, et al . Stability analysis methods for the bedrock shallow slope considering rainfall types[J]. Hydrogeology & Engineering Geology,2018 ,45 （2 ）:131 −135 . （in Chinese with English abstract）[7] 朱晓霞,张力,杨树文. 降雨引发的兰州黄土滑坡时空规律分析和临界降雨量预测[J]. 中国地质灾害与防治学报,2019,30(4):24 − 31. [ZHU Xiaoxia,ZHANG Li,YANG Shuwen. Characteristics of rainfall-induced loess landslides and their threshold rainfall in Lanzhou[J]. The Chinese Journal of Geological Hazard and Control,2019,30(4):24 − 31. (in Chinese with English abstract)]
ZHU Xiaoxia, ZHANG Li, YANG Shuwen . Characteristics of rainfall-induced loess landslides and their threshold rainfall in Lanzhou[J]. The Chinese Journal of Geological Hazard and Control,2019 ,30 （4 ）:24 −31 . （in Chinese with English abstract）[8] 石振明,赵思奕,苏越. 降雨作用下堆积层滑坡的模型试验研究[J]. 水文地质工程地质,2016,43(4):135 − 140. [SHI Zhenming,ZHAO Siyi,SU Yue. An experimental study of the deposit slope failure caused by rainfall[J]. Hydrogeology & Engineering Geology,2016,43(4):135 − 140. (in Chinese with English abstract)]
SHI Zhenming, ZHAO Siyi, SU Yue . An experimental study of the deposit slope failure caused by rainfall[J]. Hydrogeology & Engineering Geology,2016 ,43 （4 ）:135 −140 . （in Chinese with English abstract）[9] WANG Genlong,LI Tonglu,XING Xianli,et al. Research on loess flow-slides induced by rainfall in July 2013 in Yan’an,NW China[J]. Environmental Earth Sciences,2015,73(12):7933 − 7944. doi: 10.1007/s12665-014-3951-9
[10] WEI Ling,YANG Moyuan,LI Zhu,et al. Experimental investigation of relationship between infiltration rate and soil moisture under rainfall conditions[J]. Water,2022,14(9):1347. doi: 10.3390/w14091347
[11] 王高峰,李浩,田运涛,等. 甘肃省白龙江流域典型高位堆积层滑坡成因机制研究及其危险性预测[J]. 岩石力学与工程学报,2023,42(4):1003 − 1018. [WANG Gaofeng,LI Hao,TIAN Yuntao,et al. Study on the formation mechanism and risk prediction of high-level accumulation landslides in Bailongjiang River Basin,Gansu Province[J]. Chinese Journal of Rock Mechanics and Engineering,2023,42(4):1003 − 1018. (in Chinese with English abstract)]
WANG Gaofeng, LI Hao, TIAN Yuntao, et al . Study on the formation mechanism and risk prediction of high-level accumulation landslides in Bailongjiang River Basin, Gansu Province[J]. Chinese Journal of Rock Mechanics and Engineering,2023 ,42 （4 ）:1003 −1018 . （in Chinese with English abstract）[12] RICHARDS L A. Capillary conduction of liquids through porous mediums[J]. Physics,1931,1(5):318 − 333. doi: 10.1063/1.1745010
[13] GREEN W H,AMPT G A. Studies on soil phyics[J]. The Journal of Agricultural Science,1911,4(1):1 − 24. doi: 10.1017/S0021859600001441
[14] SURYAKANT B T,PALLERLA V. Comparative performance of different infiltration models for prediction of infiltration rate under different land-use conditions[J]. Environmental Earth Sciences,2023,82(4):112. doi: 10.1007/s12665-023-10808-3
[15] 宋宜祥,尹子航,黄达. 基于Green-Ampt模型的多层结构边坡降雨入渗改进计算方法及稳定性影响研究[J]. 水文地质工程地质,2022,49(6):162 − 170. [SONG Yixiang,YIN Zihang,HUANG Da. Rainfall infiltration process of multi-layer slope based on improved Green-Ampt model stability analysis[J]. Hydrogeology & Engineering Geology,2022,49(6):162 − 170. (in Chinese with English abstract)] doi: 10.16030/j.cnki.issn.1000-3665.202111011
SONG Yixiang, YIN Zihang, HUANG Da . Rainfall infiltration process of multi-layer slope based on improved Green-Ampt model stability analysis[J]. Hydrogeology & Engineering Geology,2022 ,49 （6 ）:162 −170 . （in Chinese with English abstract）[16] PHILIP J R. The theory of infiltration[J]. Soil Science,1957,83(5):345 − 358. doi: 10.1097/00010694-195705000-00002
[17] ALBALASMEH A A,ALGHZAWI M Z,GHARAIBEH M A,et al. Assessment of the effect of irrigation with treated wastewater on soil properties and on the performance of infiltration models[J]. Water,2022,14(9):1520. doi: 10.3390/w14091520
[18] MEIN R G,LARSON C L. Modeling infiltration during a steady rain[J]. Water Resources Research,1973,9(2):384 − 394. doi: 10.1029/WR009i002p00384
[19] 胡庆,吴益平,苗发盛,等. 基于Mein-Larson入渗模型的凹形边坡稳定性分析[J]. 中国地质灾害与防治学报,2021,32(6):26 − 35. [HU Qing,WU Yiping,MIAO Fasheng,et al. Stability analysis of concave slope based on Mein-Larson infiltration model[J]. The Chinese Journal of Geological Hazard and Control,2021,32(6):26 − 35. (in Chinese with English abstract)]
HU Qing, WU Yiping, MIAO Fasheng, et al . Stability analysis of concave slope based on Mein-Larson infiltration model[J]. The Chinese Journal of Geological Hazard and Control,2021 ,32 （6 ）:26 −35 . （in Chinese with English abstract）[20] KOSTIAKOV A N. On the dynamics of the coefficient of water percolation in soils and the necessity for studying it from a dynamic point of view for purposes of amelioration[C]//Transactions of the Sixth Commission of the International Society of Soil Science,Part A. Russia,1932:17 − 21.
[21] HORTON R E. An approach toward a physical interpretation of infiltration-capacity[J]. Soil Science Society of America Journal,1941,5(C):399 − 417. doi: 10.2136/sssaj1941.036159950005000C0075x
[22] DAHAK A,BOUTAGHANE H,MERABTENE T. Parameter estimation and assessment of infiltration models for madjez ressoul catchment,Algeria[J]. Water,2022,14(8):1185. doi: 10.3390/w14081185
[23] 蔡征龙,孟永东,秦毅,等. 基于改进Green-Ampt模型的滑坡稳定时变可靠度分析[J]. 岩土力学,2022,43(1):268 − 276. [CAI Zhenglong,MENG Yongdong,QIN Yi,et al. Time-varying reliability of landslide stability based on improved Green-Ampt model[J]. Rock and Soil Mechanics,2022,43(1):268 − 276. (in Chinese with English abstract)] doi: 10.16285/j.rsm.2021.0627
CAI Zhenglong, MENG Yongdong, QIN Yi, et al . Time-varying reliability of landslide stability based on improved Green-Ampt model[J]. Rock and Soil Mechanics,2022 ,43 （1 ）:268 −276 . （in Chinese with English abstract）[24] 李强,贾森,李鑫,等. 考虑非饱和浸润区的改进Green-Ampt模型[J]. 岩土力学,2022,43(12):3484 − 3492. [LI Qiang,JIA Sen,LI Xin,et al. An improved Green-Ampt model considering unsaturated infiltration zone[J]. Rock and Soil Mechanics,2022,43(12):3484 − 3492. (in Chinese with English abstract)] doi: 10.16285/j.rsm.2022.0912
LI Qiang, JIA Sen, LI Xin, et al . An improved Green-Ampt model considering unsaturated infiltration zone[J]. Rock and Soil Mechanics,2022 ,43 （12 ）:3484 −3492 . （in Chinese with English abstract）[25] 郭智辉,简文彬,刘青灵,等. 基于现场原型试验的斜坡降雨入渗分析及入渗模型研究[J]. 岩土力学,2021,42(6):1635 − 1647. [GUO Zhihui,JIAN Wenbin,LIU Qingling,et al. Rainfall infiltration analysis and infiltration model of slope based on in-situ tests[J]. Rock and Soil Mechanics,2021,42(6):1635 − 1647. (in Chinese with English abstract)]
GUO Zhihui, JIAN Wenbin, LIU Qingling, et al . Rainfall infiltration analysis and infiltration model of slope based on in-situ tests[J]. Rock and Soil Mechanics,2021 ,42 （6 ）:1635 −1647 . （in Chinese with English abstract）[26] 李滨,冯振,赵瑞欣,等. 三峡地区“14·9”极端暴雨型滑坡泥石流成灾机理分析[J]. 水文地质工程地质,2016,43(4):118 − 127. [LI Bin,FENG Zhen,ZHAO Ruixin,et al. Mechanism of “14·9”rainstorm triggered landslides and debris-flows in the Three Gorges area[J]. Hydrogeology & Engineering Geology,2016,43(4):118 − 127. (in Chinese with English abstract)] doi: 10.16030/j.cnki.issn.1000-3665.2016.04.20
LI Bin, FENG Zhen, ZHAO Ruixin, et al . Mechanism of “14·9”rainstorm triggered landslides and debris-flows in the Three Gorges area[J]. Hydrogeology & Engineering Geology,2016 ,43 （4 ）:118 −127 . （in Chinese with English abstract）[27] FREDLUND D G,MORGENSTERN N R,WIDGER R A. The shear strength of unsaturated soils[J]. Canadian Geotechnical Journal,1978,15(3):313 − 321. doi: 10.1139/t78-029
[28] BIONDI G,CASCONE E,MAUGERI M,et al. Seismic response of saturated cohesionless slopes[J]. Soil Dynamics and Earthquake Engineering,2000,20(1/2/3/4):209 − 215.
-
