Deformation mechanism and optimum supporting structures in fault-bearing biased tunnels
-
摘要:

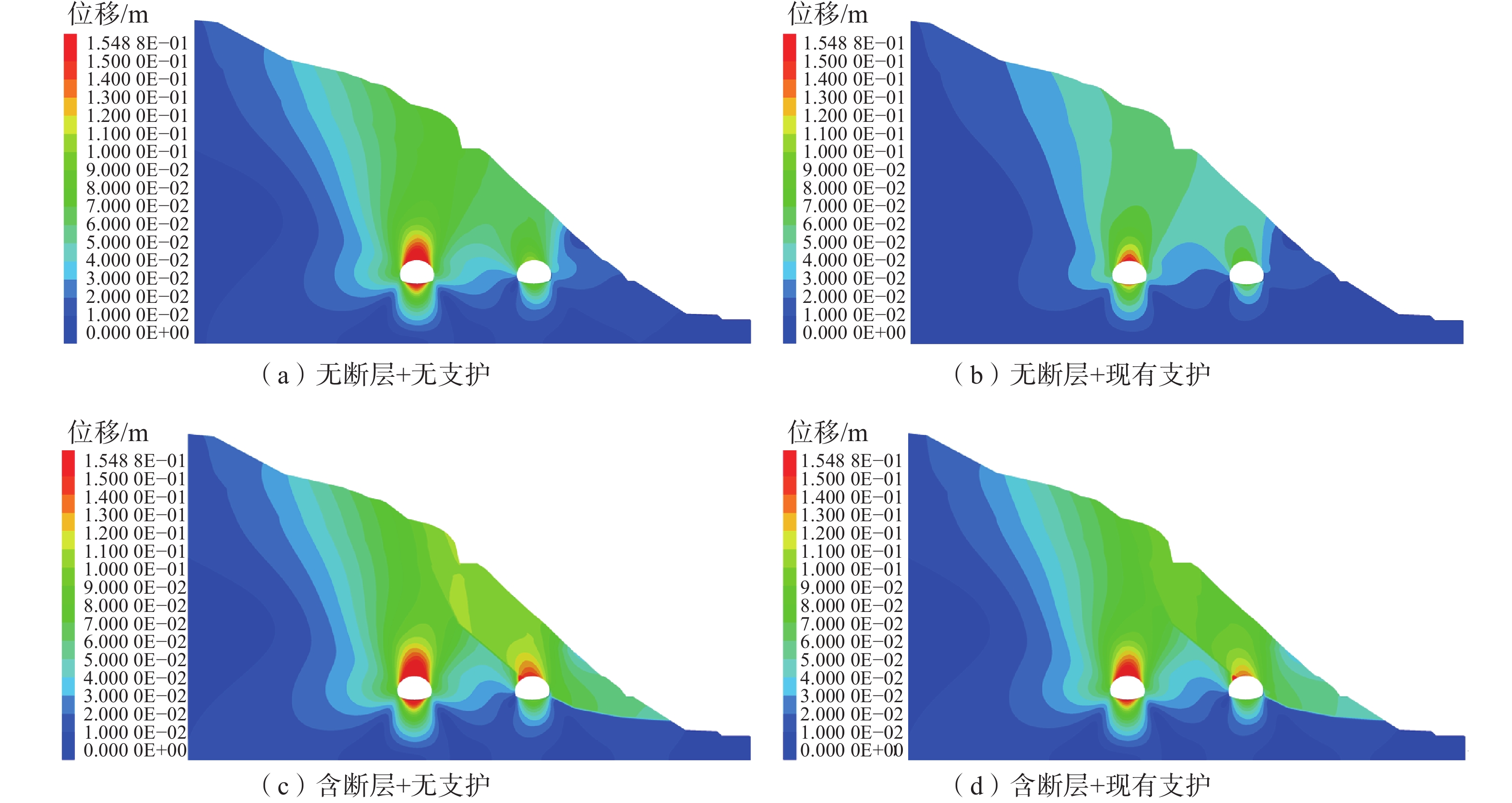

为探明复杂地质条件下隧道围岩变形机理，制定相适应的围岩变形控制技术，以清泉隧道为工程依托，对偏压隧道洞口段围岩变形进行分析，基于FLAC3D研究有无断层条件下不同支护状态围岩稳定性，明确围岩变形机理并提出控制措施。研究表明：（1）偏压效应下后行洞开挖扰动使上覆围岩与断层带相交层面张开、层间岩体弯折破裂，围岩应力重分布且断层破碎带进一步恶化，导致围岩变形严重；（2）软弱围岩自稳能力差，二次应力作用使得小净距隧道顶拱、边墙围岩产生可持续塑性变形，伴随着时间效应，对支护结构逐渐产生挤压变形，现有支护方案不能提供足够的支护强度和刚度以抵抗围岩变形；（3）提出的坡面锚索+深埋侧抗滑桩复合控制措施，可有效控制围岩变形，减弱断层破碎带恶化对围岩稳定性影响，数值计算结果与现场监测结果较为吻合。研究结果可为类似复杂地质条件下隧道围岩变形控制提供参考。
Abstract:To explore the deformation mechanisms of tunnel surrounding rock under complex geological conditions and develop appropriate technologies for controlling surrounding rock deformation, this study analyzes the deformation of surrounding rock at the mouth section of a biased tunnel, using the Qingquan Tunnel as a case study. Based on FLAC3D, stability of surrounding rock under different support conditions with and without faults is studied to clarify the deformation mechanism of the surrounding rock and propose effective control measures. The study shows that: (1) Excavation disturbances during backward hole excavation under biased conditions cause tensional interaction between the overlying surrounding rock and fault zones, leading to the interlayer rock body bending, rupturing, and stress redistribution, exacerbating the fragmentation of fault zones and resulting in significant surrounding rock deformation. (2) Weak surrounding rock exhibits limited self-stabilization capacity; secondary stress induces sustainable plastic deformation in small clear span tunnel roofs and sidewalls, gradually causing squeezing deformation in support structures over time. Existing support schemes fail to provide sufficient strength and stiffness to resist surrounding rock deformation. (3) Proposed composite control measures of slope surface anchors and deep-buried lateral anti-sliping piles effectively control surrounding rock deformation, mitigate the adverse impact of fractured fault zones on rock stability, and numerical calculation results align closely with on-site monitoring results. The findings provide valuable insights for deformation control of tunnel surrounding rock under similar complex geological conditions.
-
-

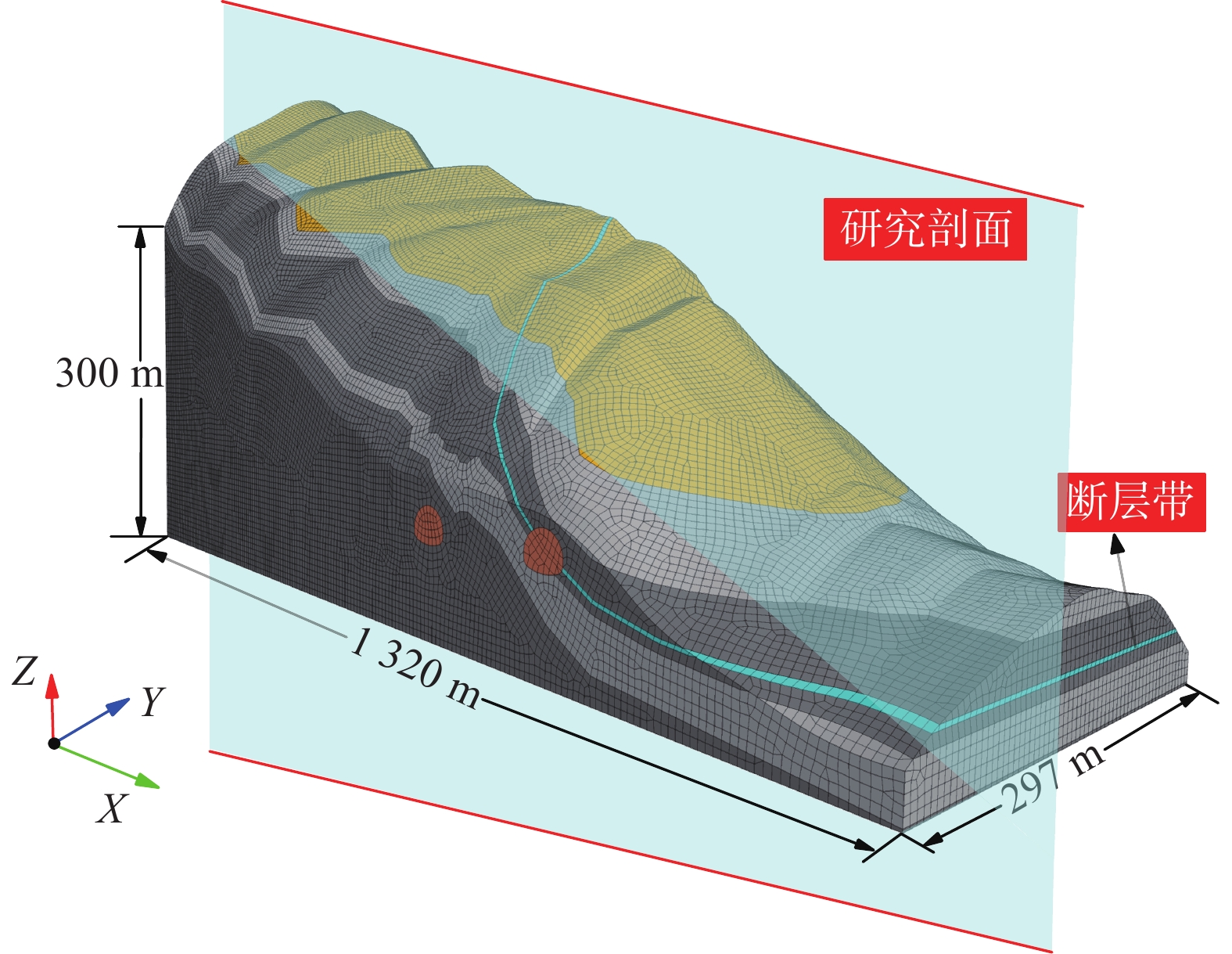

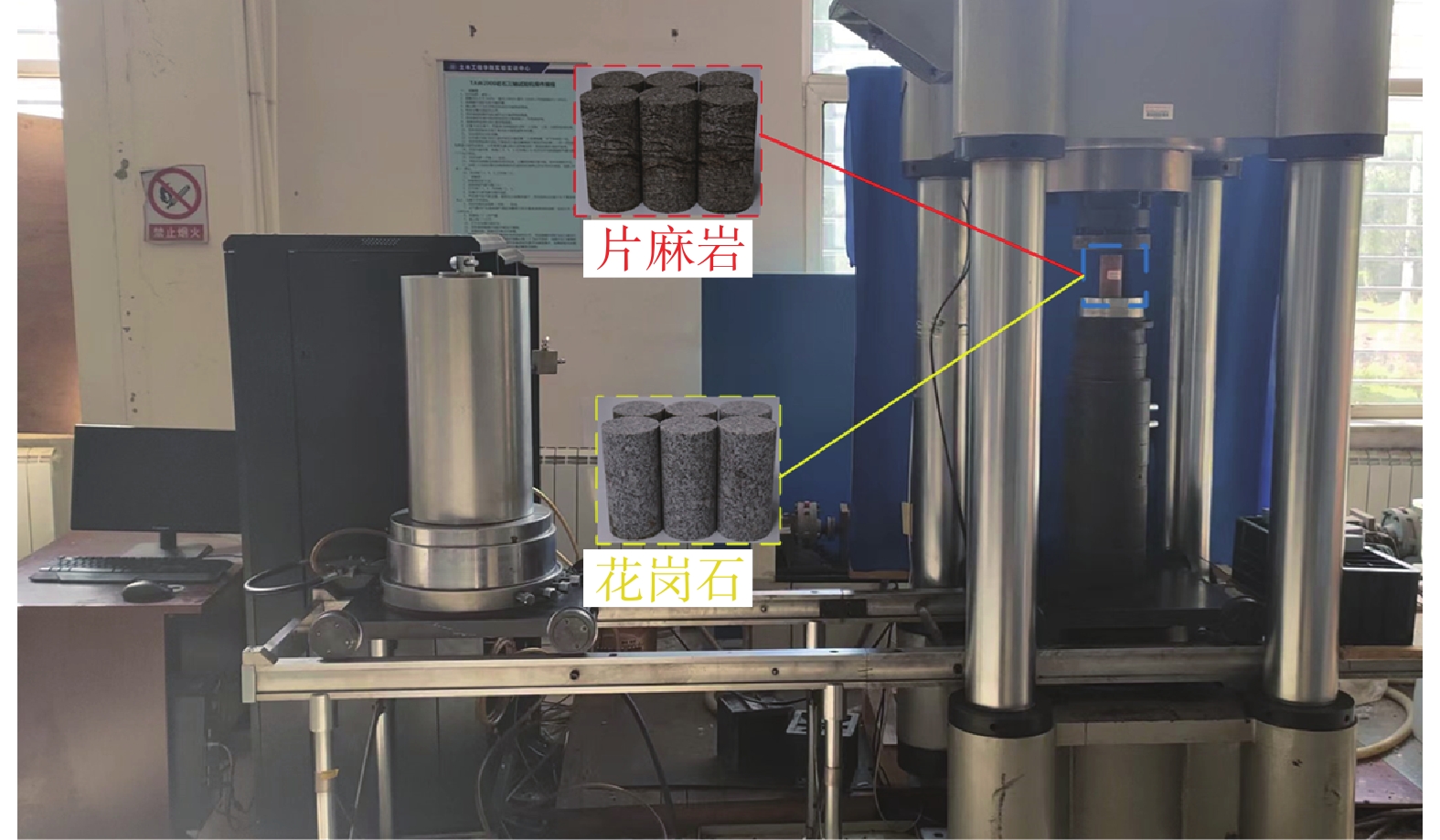

表 1 计算模型力学参数
Table 1. Mechanical parameters of the computational model
材料 E/GPa υ $m_{\mathrm{b}}^{\mathrm{p}} $ sp/（10−3） mbr sr/（10−3） η* 黄土 3.02 0.25 0.83 0.4 0.69 0.2 0.012 片麻岩 4.89 0.25 1.17 1.3 0.73 0.3 0.0038 花岗岩 8.66 0.25 1.68 3.9 0.82 0.4 0.002
下载: 导出CSV

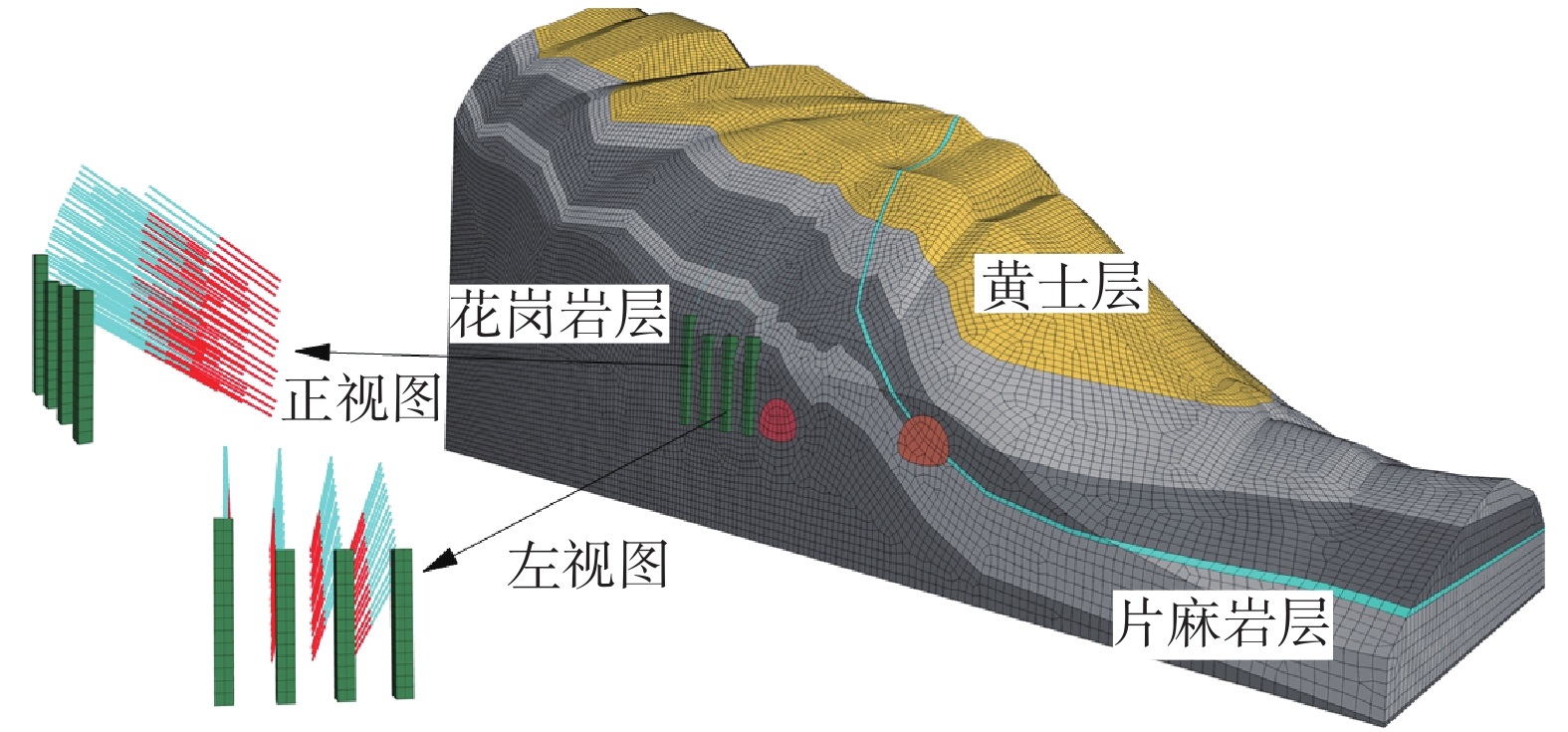

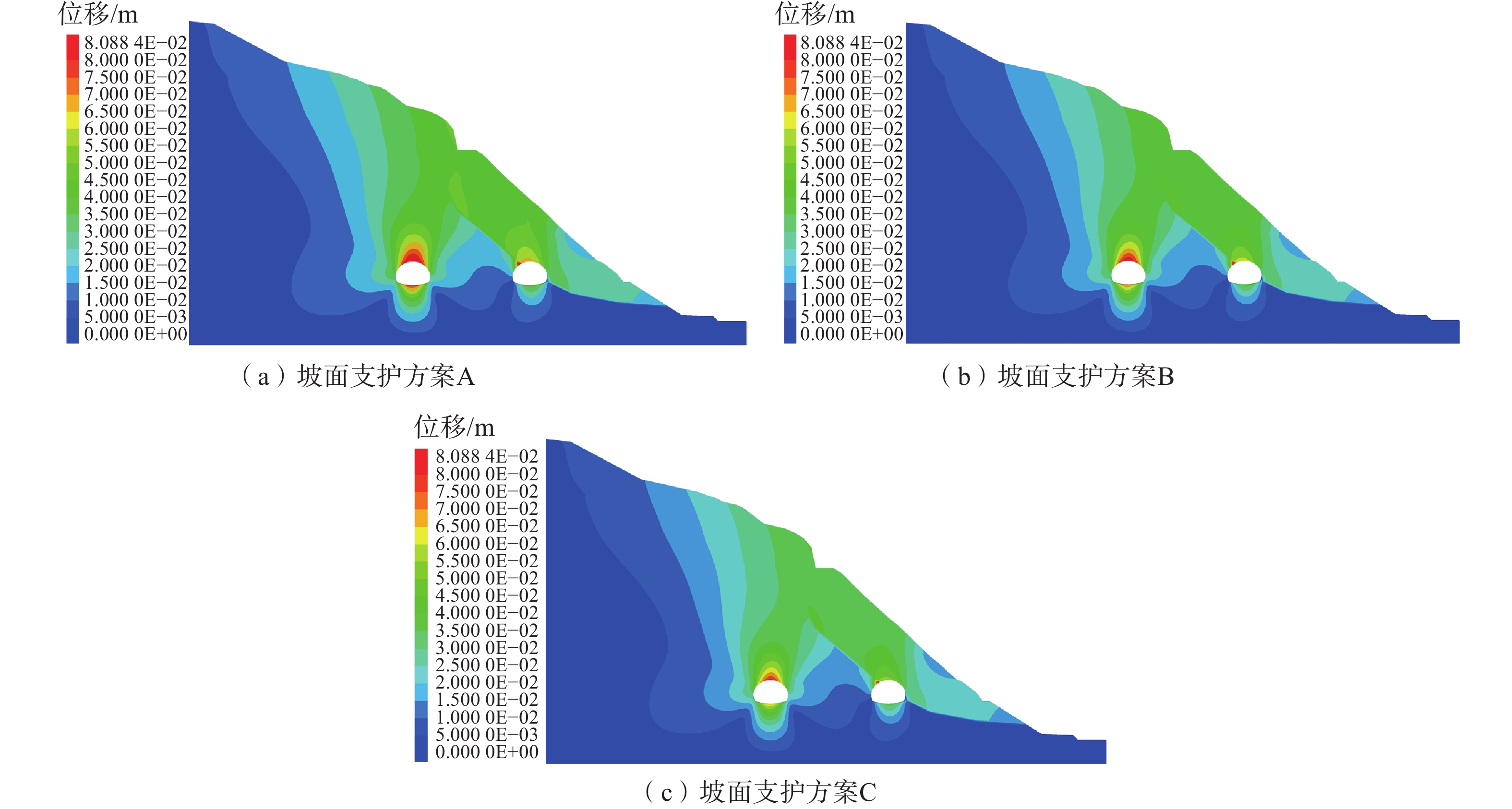

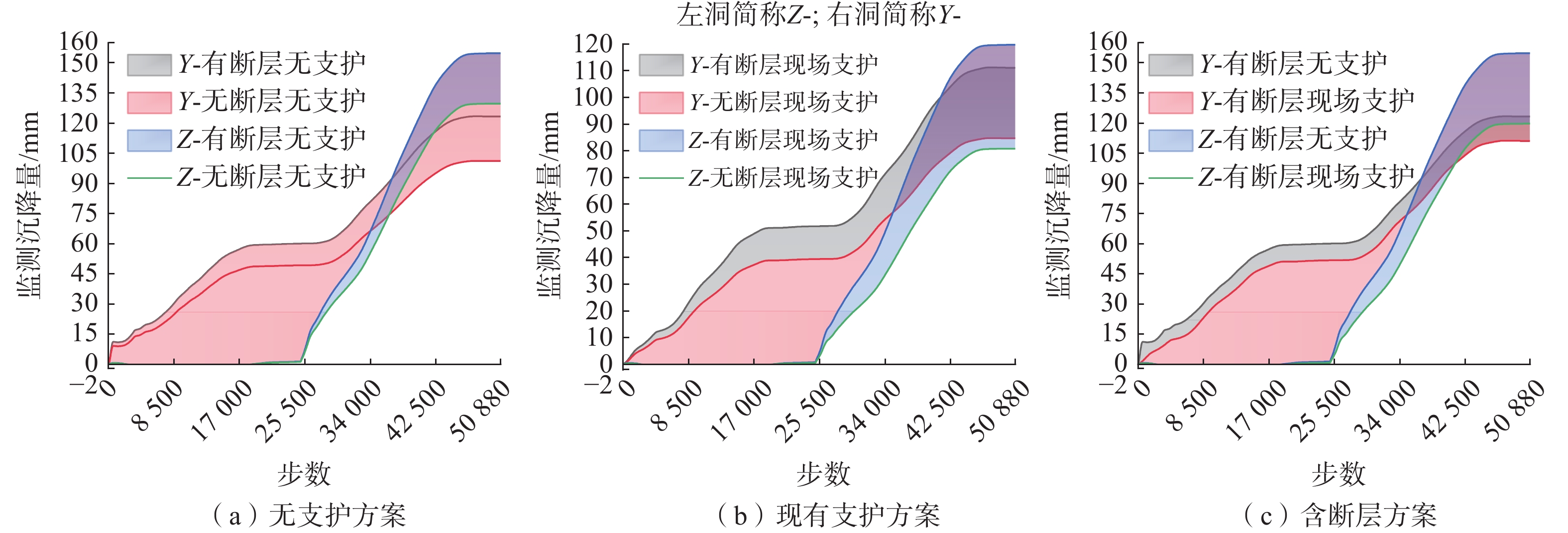

表 2 各控制方案及数值计算模型
Table 2. Various control schemes and numerical calculation models

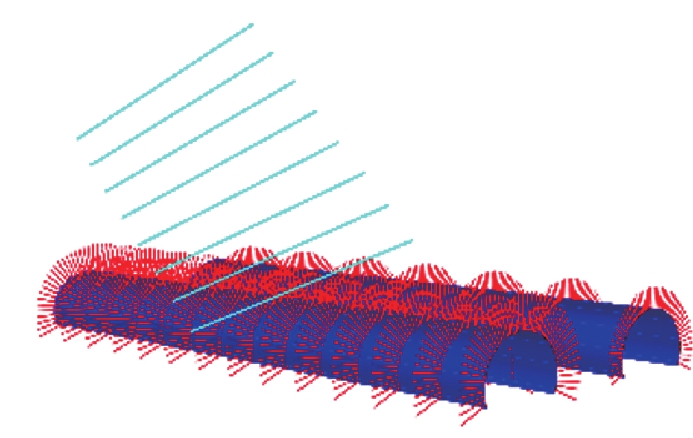

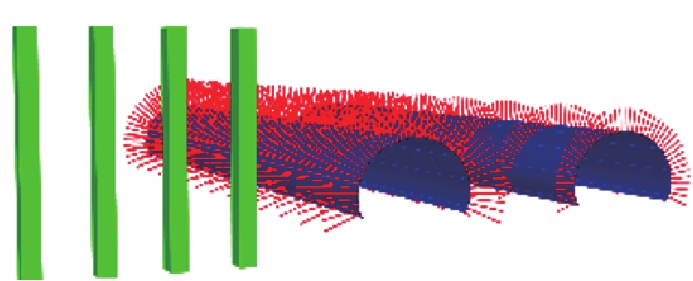

模拟工况 支护参数 支护模型图 支护方案A 现行隧道支护方案+坡面锚索
支护方案B 现行隧道支护方案+深埋侧抗滑桩（间距8 m）

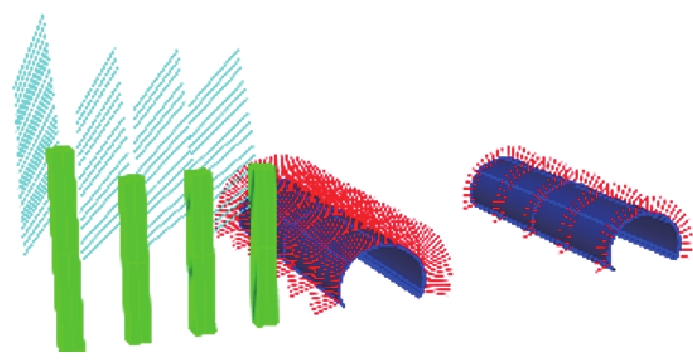

支护方案C 现行隧道支护方案+坡面锚索（倾角15°）+深埋侧抗滑桩（间距8 m）
下载: 导出CSV
表 3 材料参数表
Table 3. Table of material parameters
材料 γ/（kN∙m−3） E/MPa v c/kPa φ/（°） 抗滑桩 25.0 32500 0.2 — — 锚索 22.0 1800 0.35 30 25
下载: 导出CSV

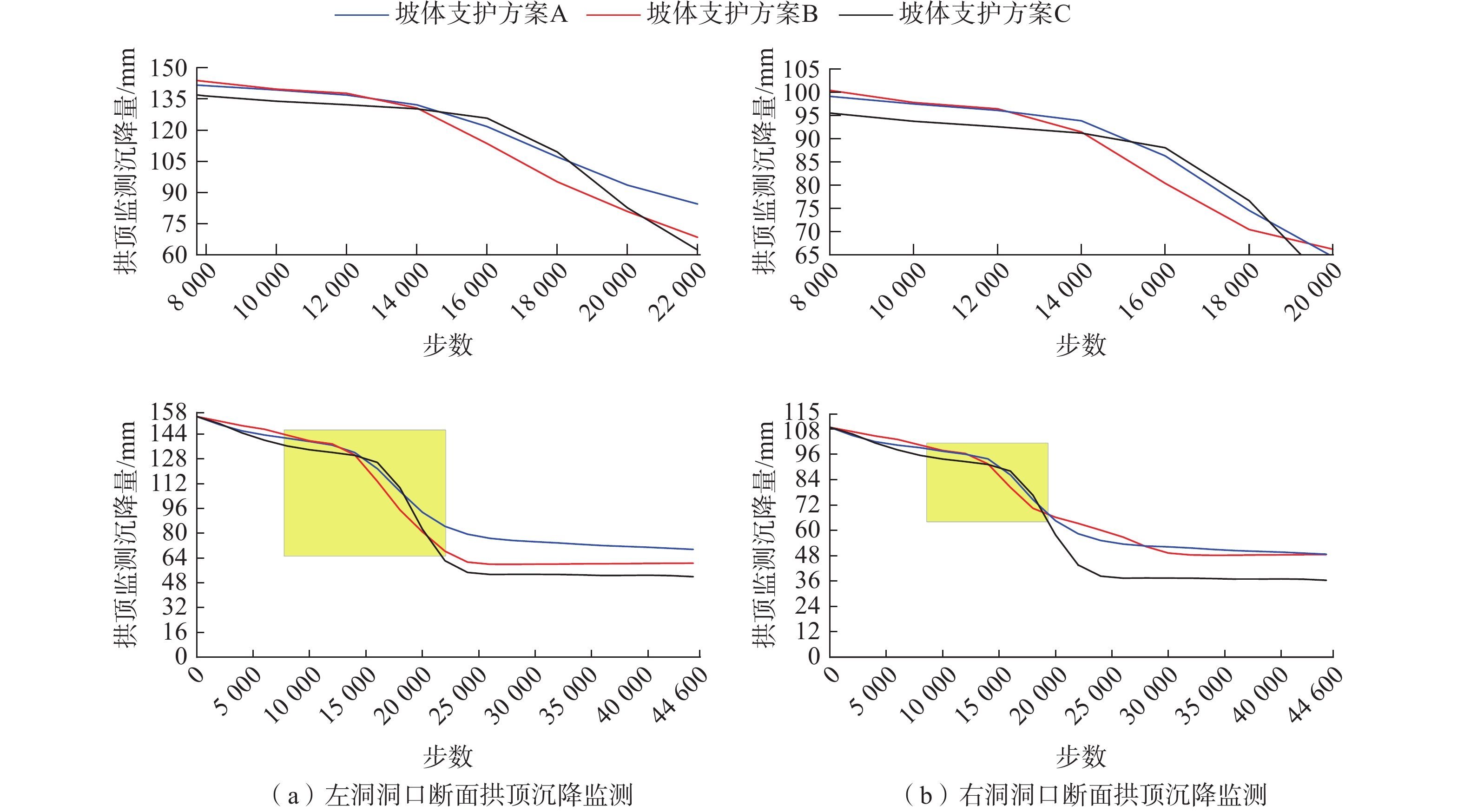

表 4 不同支护参数拱顶沉降量对比表
Table 4. Comparison of vault settlement at the arch crown with different control parameters
支护
参数抗滑桩
桩长/m锚索
倾角/（°）锚固段
长度/m锚索预
应力/kN后行洞拱顶
沉降/mm1 10 15 6 50 68.3 2 15 20 9 100 65.7 3 20 25 12 150 59.4 4 25 30 15 200 53.5 5 30 35 18 250 51.3
下载: 导出CSV
-

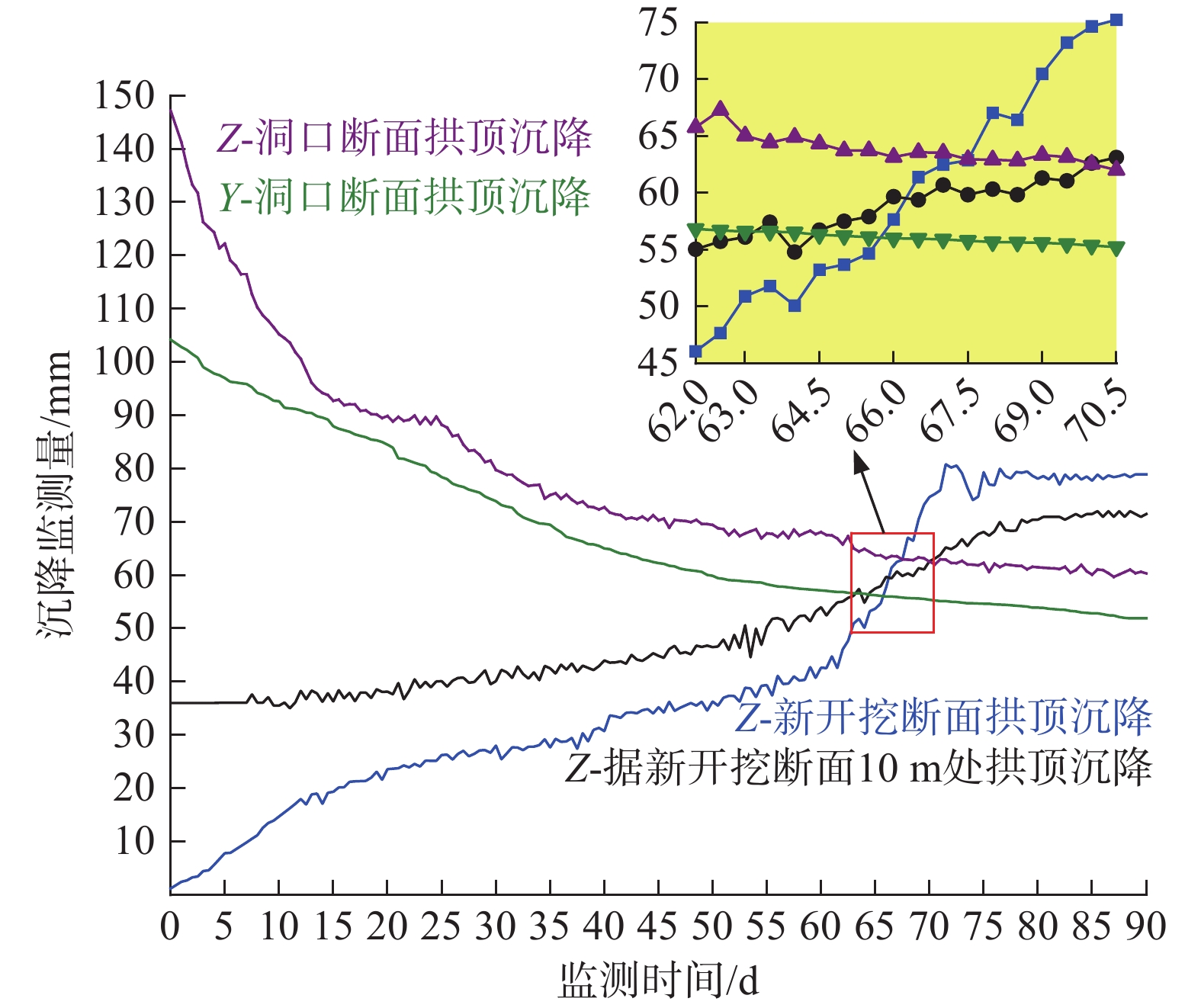

[1] 付君宜,陈发达,沈志平,等. 岩溶山区城市地下隧道工程地质灾害风险分析[J]. 中国地质灾害与防治学报,2023,34(3):100 − 108. [FU Junyi,CHEN Fada,SHEN Zhiping,et al. Risk analysis of the geological hazards during urban tunnel construction in mountainous Karst areas[J]. The Chinese Journal of Geological Hazard and Control,2023,34(3):100 − 108. (in Chinese with English abstract)]
FU Junyi, CHEN Fada, SHEN Zhiping, et al. Risk analysis of the geological hazards during urban tunnel construction in mountainous Karst areas［J］. The Chinese Journal of Geological Hazard and Control, 2023, 34（3）: 100 − 108. （in Chinese with English abstract）
[2] 昝文博,赖金星,曹校勇,等. 漂卵石隧道围岩力学响应与失稳破坏机制[J]. 岩石力学与工程学报,2021,40(8):1643 − 1653. [ZAN Wenbo,LAI Jinxing,CAO Xiaoyong,et al. Mechanical responses and instability failure mechanisms of surrounding rock of tunnels in boulder-cobble mixed stratum[J]. Chinese Journal of Rock Mechanics and Engineering,2021,40(8):1643 − 1653. (in Chinese with English abstract)]
ZAN Wenbo, LAI Jinxing, CAO Xiaoyong, et al. Mechanical responses and instability failure mechanisms of surrounding rock of tunnels in boulder-cobble mixed stratum［J］. Chinese Journal of Rock Mechanics and Engineering, 2021, 40（8）: 1643 − 1653. （in Chinese with English abstract）
[3] 岳中琦. 梅大高速公路路基边坡失稳条件与滑坡机理初探[J]. 中国地质灾害与防治学报,2024,35(4):1 − 12. [YUE Zhongqi. Study on the instability condition and landslide mechanism of subgrade slope in Mei–Da Expressway[J]. The Chinese Journal of Geological Hazard and Control,2024,35(4):1 − 12. (in Chinese with English abstract)]
YUE Zhongqi. Study on the instability condition and landslide mechanism of subgrade slope in Mei–Da Expressway［J］. The Chinese Journal of Geological Hazard and Control, 2024, 35（4）: 1 − 12. （in Chinese with English abstract）
[4] 胡炜, 谭信荣, 蒋尧, 等. 深埋顺层偏压隧道围岩破坏机理及规律研究——以郑万线某隧道为例[J]. 水文地质工程地质,2020,47(3):60 − 68. [HU Wei, TAN Xinrong, JIANG Yao, et al. A study of the mechanism and regularity of failures in the surrounding rock of a deep buried bias tunnel embedded in geologically bedding strata: Taking one tunnel of the Zhengwan line as an example[J]. Hydrogeology & Engineering Geology,2020,47(3):60 − 68. (in Chinese with English abstract)]
HU Wei, TAN Xinrong, JIANG Yao, et al. A study of the mechanism and regularity of failures in the surrounding rock of a deep buried bias tunnel embedded in geologically bedding strata: Taking one tunnel of the Zhengwan line as an example［J］. Hydrogeology & Engineering Geology, 2020, 47（3）: 60 − 68. （in Chinese with English abstract）
[5] 杜建明,房倩. 考虑黏聚力与内摩擦角的变坡面浅埋偏压隧道围岩压力计算方法[J]. 湖南大学学报(自然科学版),2022,49(1):165 − 173. [DU Jianming,FANG Qian. Calculation method of surrounding rock pressure of shallow-buried and asymmetrical pressure tunnel under variable slopes considering cohesion and internal friction angle[J]. Journal of Hunan University (Natural Sciences),2022,49(1):165 − 173. (in Chinese with English abstract)]
DU Jianming, FANG Qian. Calculation method of surrounding rock pressure of shallow-buried and asymmetrical pressure tunnel under variable slopes considering cohesion and internal friction angle［J］. Journal of Hunan University （Natural Sciences）, 2022, 49（1）: 165 − 173. （in Chinese with English abstract）
[6] 康永水,耿志,刘泉声,等. 我国软岩大变形灾害控制技术与方法研究进展[J]. 岩土力学,2022,43(8):2035 − 2059. [KANG Yongshui,GENG Zhi,LIU Quansheng,et al. Research progress on support technology and methods for soft rock with large deformation hazards in China[J]. Rock and Soil Mechanics,2022,43(8):2035 − 2059. (in Chinese with English abstract)]
KANG Yongshui, GENG Zhi, LIU Quansheng, et al. Research progress on support technology and methods for soft rock with large deformation hazards in China［J］. Rock and Soil Mechanics, 2022, 43（8）: 2035 − 2059. （in Chinese with English abstract）
[7] 严涛,李坤杰,牟智恒,等. 变坡条件下浅埋偏压隧道围岩压力解析法[J]. 西南交通大学学报,2020,55(3):531 − 536. [YAN Tao,LI Kunjie,MOU Zhiheng,et al. Analytical method for calculation of surrounding rock pressure of shallow-buried and unsymmetrically loaded tunnel adjacent to variable slope[J]. Journal of Southwest Jiaotong University,2020,55(3):531 − 536. (in Chinese with English abstract)]
YAN Tao, LI Kunjie, MOU Zhiheng, et al. Analytical method for calculation of surrounding rock pressure of shallow-buried and unsymmetrically loaded tunnel adjacent to variable slope［J］. Journal of Southwest Jiaotong University, 2020, 55（3）: 531 − 536. （in Chinese with English abstract）
[8] 池建军,刘登学,丁秀丽,等. 第三系泥岩隧洞围岩大变形成因及应对措施[J]. 长江科学院院报,2022,39(10):88 − 96. [CHI Jianjun,LIU Dengxue,DING Xiuli,et al. Causes and countermeasures of large deformation in a tunnel with tertiary mudstone[J]. Journal of Yangtze River Scientific Research Institute,2022,39(10):88 − 96. (in Chinese with English abstract)] doi: 10.11988/ckyyb.20211286
CHI Jianjun, LIU Dengxue, DING Xiuli, et al. Causes and countermeasures of large deformation in a tunnel with tertiary mudstone［J］. Journal of Yangtze River Scientific Research Institute, 2022, 39（10）: 88 − 96. （in Chinese with English abstract） doi: 10.11988/ckyyb.20211286
[9] 张广泽,邓建辉,王栋,等. 隧道围岩构造软岩大变形发生机理及分级方法[J]. 工程科学与技术,2021,53(1):1 − 12. [ZHANG Guangze,DENG Jianhui,WANG Dong,et al. Mechanism and classification of tectonic-induced large deformation of soft rock tunnels[J]. Advanced Engineering Sciences,2021,53(1):1 − 12. (in Chinese with English abstract)]
ZHANG Guangze, DENG Jianhui, WANG Dong, et al. Mechanism and classification of tectonic-induced large deformation of soft rock tunnels［J］. Advanced Engineering Sciences, 2021, 53（1）: 1 − 12. （in Chinese with English abstract）
[10] 杜建明,房倩,海路,等. 地表变坡下浅埋偏压隧道围岩压力计算方法[J]. 中南大学学报(自然科学版),2021,52(11):4088 − 4098. [DU Jianming,FANG Qian,HAI Lu,et al. Calculation method for surrounding rock pressure of shallow tunnel with asymmetrical pressure of variable slopes[J]. Journal of Central South University (Science and Technology),2021,52(11):4088 − 4098. (in Chinese with English abstract)]
DU Jianming, FANG Qian, HAI Lu, et al. Calculation method for surrounding rock pressure of shallow tunnel with asymmetrical pressure of variable slopes［J］. Journal of Central South University （Science and Technology）, 2021, 52（11）: 4088 − 4098. （in Chinese with English abstract）
[11] 邵江,朱宝龙,李涛. 不同滑带角度滑坡作用下隧道衬砌结构受力特征[J]. 西南交通大学学报,2021,56(6):1214 − 1221. [SHAO Jiang,ZHU Baolong,LI Tao. Stress characteristics of tunnel lining structures under landslides with different angles of sliding zone[J]. Journal of Southwest Jiaotong University,2021,56(6):1214 − 1221. (in Chinese with English abstract)]
SHAO Jiang, ZHU Baolong, LI Tao. Stress characteristics of tunnel lining structures under landslides with different angles of sliding zone［J］. Journal of Southwest Jiaotong University, 2021, 56（6）: 1214 − 1221. （in Chinese with English abstract）
[12] 董建华,颉永斌,李建军,等. 洞口段浅埋偏压隧道新型防护结构及其简化计算方法[J]. 中国公路学报,2018,31(10):339 − 349. [DONG Jianhua,XIE Yongbin,LI Jianjun,et al. New protective structure for shallow-buried bias tunnel at portal section and its simplified calculation method[J]. China Journal of Highway and Transport,2018,31(10):339 − 349. (in Chinese with English abstract)] doi: 10.3969/j.issn.1001-7372.2018.10.034
DONG Jianhua, XIE Yongbin, LI Jianjun, et al. New protective structure for shallow-buried bias tunnel at portal section and its simplified calculation method［J］. China Journal of Highway and Transport, 2018, 31（10）: 339 − 349. （in Chinese with English abstract） doi: 10.3969/j.issn.1001-7372.2018.10.034
[13] LI Biao,DING Quanfu,XU Nuwen,et al. Characteristics of microseismic b-value associated with rock mass large deformation in underground powerhouse Caverns at different stress levels[J]. Journal of Central South University,2022,29(2):693 − 711. doi: 10.1007/s11771-022-4946-4
[14] MA Lin. Analysis of shallow bias tunnel influence factors in mountain area[J]. International Congress of Mathematicans,2015.
[15] 孔超,张俊儒,王海彦,等. 深埋软岩大变形隧道支护变形特征及承载机理研究[J]. 中国铁道科学,2021,42(6):103 − 111. [KONG Chao,ZHANG Junru,WANG Haiyan,et al. Study on deformation characteristics and bearing mechanism of support in large deformation tunnel with deep buried soft rock[J]. China Railway Science,2021,42(6):103 − 111. (in Chinese with English abstract)] doi: 10.3969/j.issn.1001-4632.2021.06.11
KONG Chao, ZHANG Junru, WANG Haiyan, et al. Study on deformation characteristics and bearing mechanism of support in large deformation tunnel with deep buried soft rock［J］. China Railway Science, 2021, 42（6）: 103 − 111. （in Chinese with English abstract） doi: 10.3969/j.issn.1001-4632.2021.06.11
[16] 陈秋雨, 黄璐, 潘虎, 等. 径向让压系统对软岩隧道围岩力学特性影响研究[J]. 水文地质工程地质,2024,51(4):146 − 156. [CHEN Qiuyu, HUANG Lu, PAN Hu, et al. Enhancing mechanical characteristics of soft rock tunnel surrounding rock through radial yield pressure system[J]. Hydrogeology and Engineering Geology,2024,51(4):146 − 156. (in Chinese with English abstract)]
CHEN Qiuyu, HUANG Lu, PAN Hu, et al. Enhancing mechanical characteristics of soft rock tunnel surrounding rock through radial yield pressure system［J］. Hydrogeology and Engineering Geology, 2024, 51（4）: 146 − 156. （in Chinese with English abstract）
[17] 陈东旭. 新奥法隧道支护结构约束效应及破裂失效模型研究[D]. 阜新:辽宁工程技术大学,2021. [CHEN Dongxu. Study on constraint effect and rupture failure model of new Austrian method tunnel support structure[D]. Fuxin:Liaoning Technical University,2021. (in Chinese with English abstract)]
CHEN Dongxu. Study on constraint effect and rupture failure model of new Austrian method tunnel support structure［D］. Fuxin: Liaoning Technical University, 2021. （in Chinese with English abstract）
[18] 孙闯,敖云鹤,张家鸣. 弱节理小净距隧道合理净距及围岩稳定性研究[J]. 公路交通科技,2020,37(5):108 − 115. [SUN Chuang,AO Yunhe,ZHANG Jiaming. Study on reasonable clear distance and surrounding rock stability of weak jointed small clear distance tunnel[J]. Journal of Highway and Transportation Research and Development,2020,37(5):108 − 115. (in Chinese with English abstract)]
SUN Chuang, AO Yunhe, ZHANG Jiaming. Study on reasonable clear distance and surrounding rock stability of weak jointed small clear distance tunnel［J］. Journal of Highway and Transportation Research and Development, 2020, 37（5）: 108 − 115. （in Chinese with English abstract）
[19] HOEK E,BROWN E T. Practical estimates of rock mass strength[J]. International Journal of Rock Mechanics and Mining Sciences,1997,34(8):1165 − 1186. doi: 10.1016/S1365-1609(97)80069-X
[20] ALEJANO L R,RODRIGUEZ-DONO A,ALONSO E,et al. Ground reaction curves for tunnels excavated in different quality rock masses showing several types of post-failure behaviour[J]. Tunnelling and Underground Space Technology,2009,24(6):689 − 705. doi: 10.1016/j.tust.2009.07.004
-
