摘要:
这是一篇矿物加工工程领域的论文。西藏某高海拔矿区铜多金属矿氧化率较高，矿石性质复杂，为充分、高效、综合利用矿产资源，本文结合理论和实践经验，通过对矿石的原矿矿物性质和特征进行分析研究，最终确定了以JM-1硫化剂、ZJ-1捕收剂、铜铅锌“先硫后氧”混合浮选为关键技术的浮选工艺。在原矿铜氧化率为38.58%的条件下，实验经两次粗选、三次精选、两次扫选工艺流程，取得混合精矿铅+锌品位之和为41.17%，铜铅锌金属回收率分别为58.74%、80.71%、70.82%的良好指标，极大提高了选矿的利用效果和技术水平，也为后期在选矿技术方法方面的改进和创新提供了技术支撑和有利依据。
Abstract:This is an article in the field of mineral processing engineering. The opper polymetallic ore in a high-altitude mining area in Xizang has a high oxidation rate and complex ore properties. In order to make full, efficient and comprehensive use of mineral resources, this article analyzes and studies the mineral properties and characteristics of the raw ore based on theory and practical experience. Finally, the flotation process with JM-1 sulfide agent, ZJ-1 collector, copper, lead and zinc mixed flotation of "sulfur before oxygen" as the key technology is determined. At the condition that the copper oxidation rate of the raw ore is 38.58%, the mixed concentrate grade sum of lead and zinc is 41.17%, and the recovery of copper, lead and zinc is 58.74%, 80.71% and 70.82%, respectively, after two roughing, three cleaning and two scavenging processes, which greatly improves the utilization effect and technical level of dressing. It also provides technical support and favorable basis for the improvement and innovation of mineral processing technology in the later stage.
-
-
表 1 矿样主要金属元素化学分析结果/%
Table 1. Chemical analysis results of main metallic elements
Cu Pb Zn Au* Ag* 1.27 2.25 1.14 0.28 57.80 *单位为g/t
下载: 导出CSV

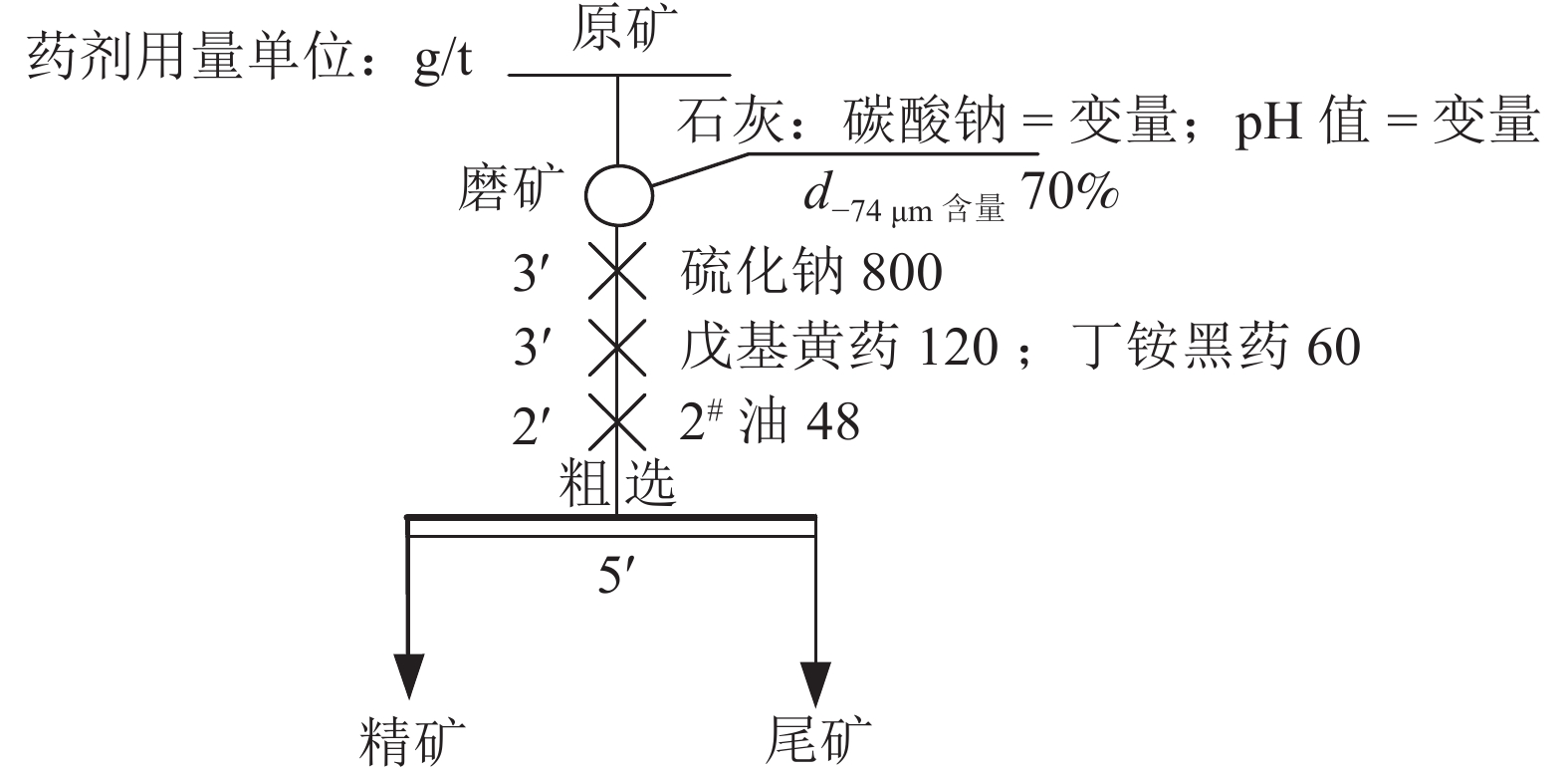

表 2 石灰、碳酸钠不同比例用量实验结果
Table 2. Test results of different proportions of lime and sodium carbonate
石灰：碳酸钠/（g/t）
pH值名称 产率/% 品位/% 回收率/% Cu Pb Zn Cu Pb Zn 2500:0
pH值=7～8精矿 17.63 4.19 10.08 4.39 58.63 78.32 68.51 尾矿 82.37 0.63 0.60 0.43 41.37 21.68 31.49 原矿 100.00 1.26 2.27 1.13 100.00 100.00 100.00 1500:500
pH值=7～8精矿 15.32 4.89 12.00 5.11 60.47 81.35 68.73 尾矿 84.68 0.58 0.50 0.42 39.53 18.65 31.27 原矿 100.00 1.24 2.26 1.14 100.00 100.00 100.00 1000:1000
pH值=7～8精矿 14.63 5.28 12.65 5.47 61.75 82.64 68.97 尾矿 85.37 0.56 0.46 0.42 38.25 17.36 31.03 原矿 100.00 1.25 2.24 1.16 100.00 100.00 100.00 0:2500
pH值=7～8精矿 12.63 5.85 14.70 6.23 60.08 82.53 68.42 尾矿 87.37 0.56 0.45 0.42 39.92 17.47 31.58 原矿 100.00 1.23 2.25 1.15 100.00 100.00 100.00
下载: 导出CSV
表 3 硫化剂对比实验结果
Table 3. Comparison test results of curing agent
硫化剂/（g/t） 产品名称 产率/% 品位/% 回收率/% Cu Pb Zn Cu Pb Zn 硫化钠：800 精矿 17.93 4.08 9.96 4.43 59.03 79.02 69.11 尾矿 82.07 0.62 0.58 0.43 40.97 20.98 30.89 原矿 100.00 1.24 2.26 1.15 100.00 100.00 100.00 JM-1：400 精矿 16.23 4.81 11.36 4.83 62.47 81.95 68.83 尾矿 83.77 0.56 0.48 0.42 37.53 18.05 31.17 原矿 100.00 1.25 2.25 1.14 100.00 100.00 100.00
下载: 导出CSV
表 4 JM-1用量实验结果
Table 4. JM-1 dosage test results
JM-1用量/（g/t） 产品名称 产率/% 品位/% 回收率/% Cu Pb Zn Cu Pb Zn 200 精矿 14.93 5.03 11.88 5.20 60.13 78.51 67.45 尾矿 85.07 0.59 0.57 0.44 39.87 21.49 32.55 原矿 100.00 1.25 2.26 1.15 100.00 100.00 100.00 400 精矿 16.23 4.81 11.36 4.83 62.47 81.95 68.83 尾矿 83.77 0.56 0.48 0.42 37.53 18.05 31.17 原矿 100.00 1.25 2.25 1.14 100.00 100.00 100.00 600 精矿 17.23 4.55 10.67 4.68 62.75 82.04 68.97 尾矿 82.77 0.56 0.49 0.44 37.25 17.96 31.03 原矿 100.00 1.25 2.24 1.17 100.00 100.00 100.00 800 精矿 17.33 4.48 10.66 4.56 63.08 82.13 68.68 尾矿 82.67 0.55 0.49 0.44 36.92 17.87 31.32 原矿 100.00 1.23 2.25 1.15 100.00 100.00 100.00
下载: 导出CSV
表 5 捕收剂对比实验结果
Table 5. Comparison test results of collectors
捕收剂种类及用量
/（g/t）产品名称 产率/% 品位/% 回收率/% Cu Pb Zn Cu Pb Zn 丁基黄药+丁铵黑药（120+60） 精矿 16.23 4.81 11.36 4.83 62.47 81.95 68.83 尾矿 83.77 0.56 0.48 0.42 37.53 18.05 31.17 原矿 100.00 1.25 2.25 1.14 100.00 100.00 100.00 ZJ-1：120 精矿 13.93 5.66 13.39 5.72 63.13 82.56 69.29 尾矿 86.07 0.54 0.46 0.41 36.87 17.44 30.71 原矿 100.00 1.25 2.26 1.15 100.00 100.00 100.00
下载: 导出CSV

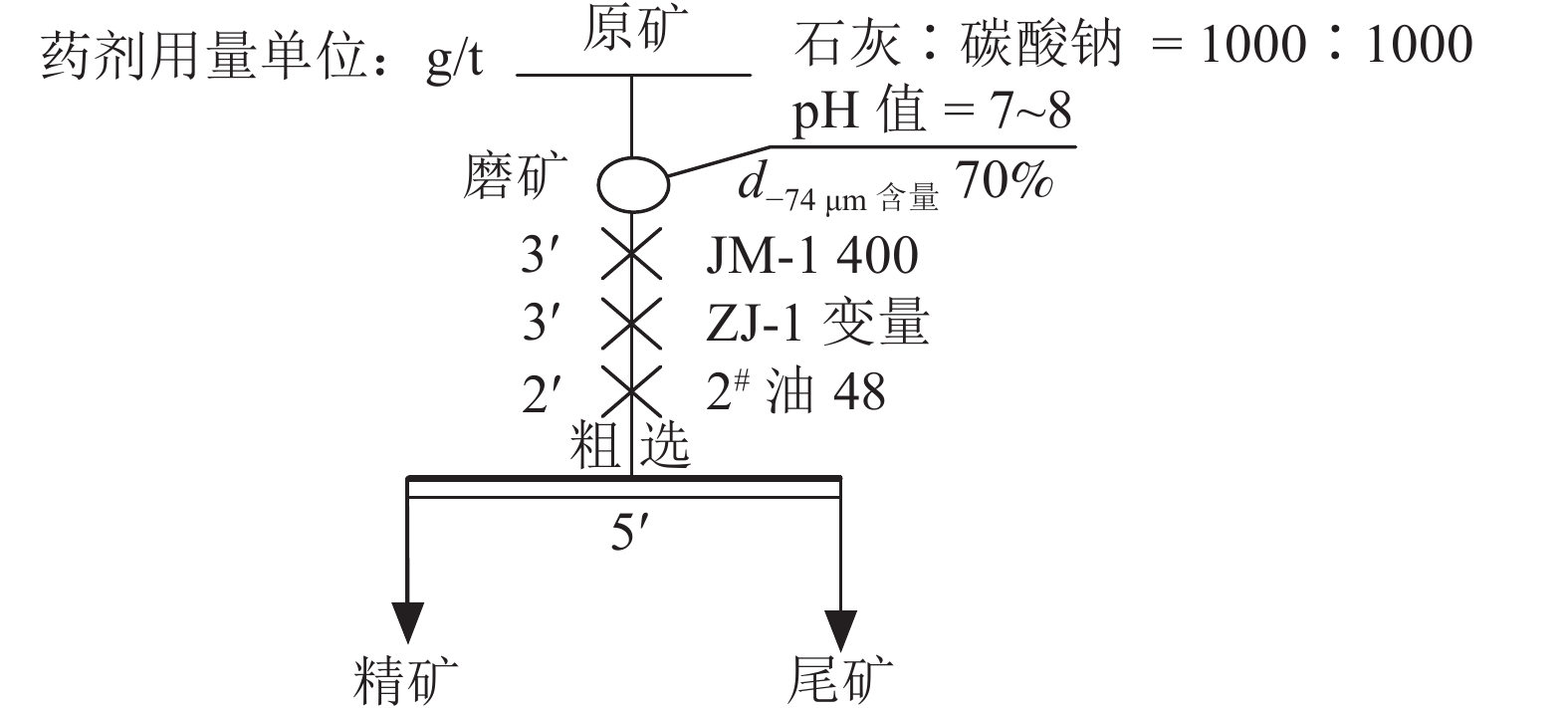

表 6 ZJ-1用量实验结果
Table 6. ZJ-1 dosage test results
ZJ-1用量/(g/t) 产品名称 产率/% 品位/% 回收率/% Cu Pb Zn Cu Pb Zn 80 精矿 11.93 6.51 15.60 6.63 61.13 81.65 69.39 尾矿 88.07 0.56 0.48 0.40 38.87 18.35 30.61 原矿 100.00 1.27 2.28 1.14 100.00 100.00 100.00 120 精矿 13.93 5.66 13.39 5.72 63.13 82.56 69.29 尾矿 86.07 0.54 0.46 0.41 36.87 17.44 30.71 原矿 100.00 1.25 2.26 1.15 100.00 100.00 100.00 160 精矿 17.23 4.62 10.72 4.68 63.22 82.09 68.97 尾矿 82.77 0.56 0.49 0.44 36.78 17.91 31.03 原矿 100.00 1.26 2.25 1.17 100.00 100.00 100.00 200 精矿 17.58 4.42 10.51 4.60 63.17 82.13 69.67 尾矿 82.42 0.55 0.49 0.43 36.83 17.87 30.33 原矿 100.00 1.23 2.25 1.16 100.00 100.00 100.00
下载: 导出CSV

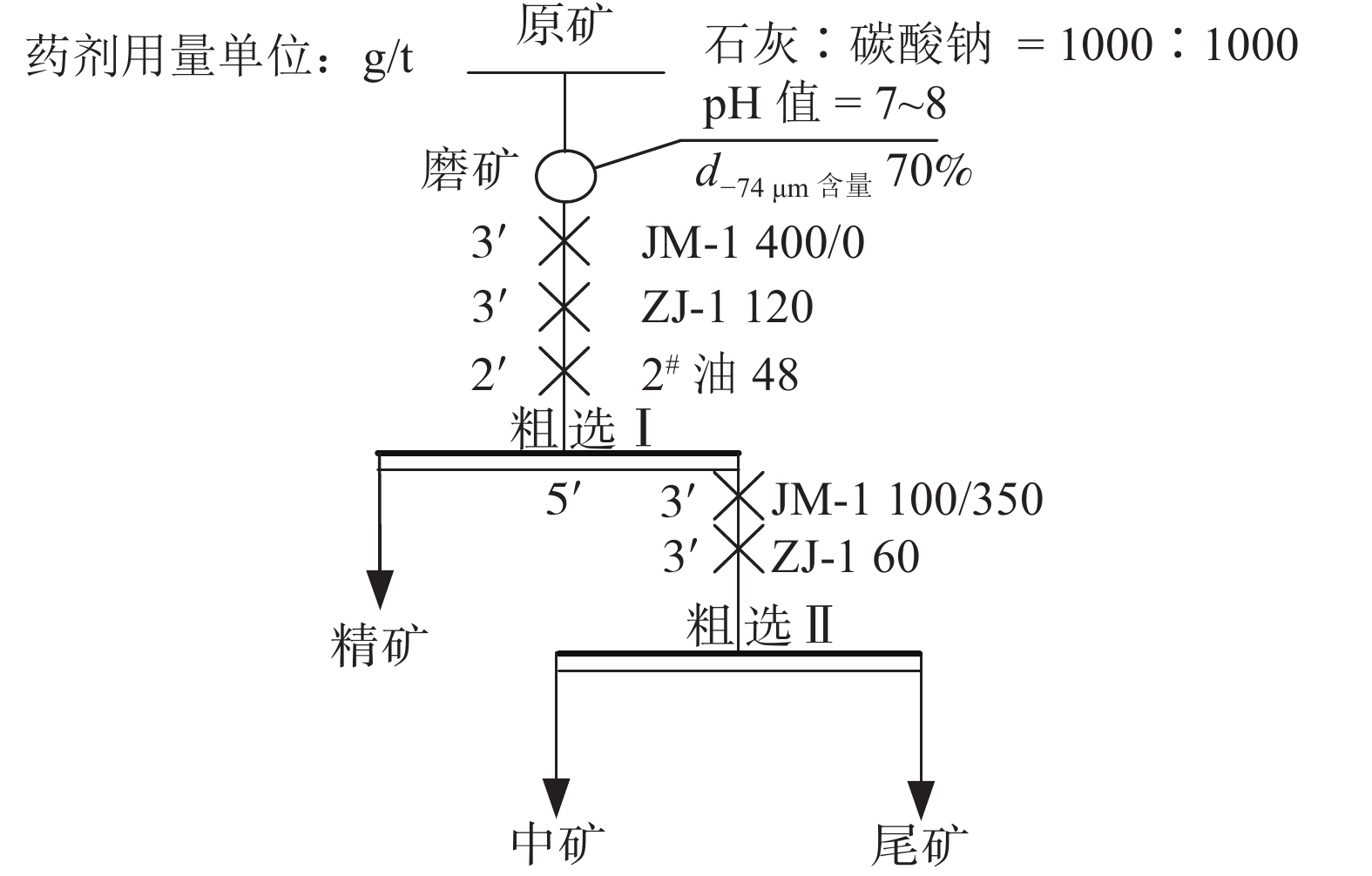

表 7 浮选工艺对比实验结果
Table 7. Comparison test results of flotation process
工艺
流程产品名称 产率/% 品位/% 回收率/% Cu Pb Zn Cu Pb Zn 氧硫
混选精矿 16.23 4.66 11.08 4.91 60.53 79.55 69.33 中矿 2.03 0.76 4.46 0.87 1.23 4.01 1.54 尾矿 81.74 0.58 0.45 0.41 38.24 16.44 29.13 原矿 100.00 1.25 2.26 1.15 100.00 100.00 100.00 先硫
后氧精矿 14.23 5.29 12.46 5.65 61.16 78.83 68.68 中矿 2.59 1.53 5.57 1.06 3.23 6.41 2.35 尾矿 83.18 0.53 0.40 0.41 35.61 14.76 28.97 原矿 100.00 1.23 2.25 1.17 100.00 100.00 100.00
下载: 导出CSV
表 8 “先硫后氧”混合浮选实验结果
Table 8. Mixed flotation test results of "sulfur first and oxygen then"
产品名称 产率/% 品位/% 回收率/% Cu Pb Zn Cu Pb Zn 精矿 4.64 11.65 28.68 13.48 42.58 59.40 55.37 中矿1 1.43 3.30 9.99 6.78 3.72 6.38 8.58 中矿2 3.21 3.21 7.24 1.69 8.12 10.38 4.81 中矿3 6.93 1.74 2.29 0.43 9.50 7.08 2.66 中矿4 1.79 1.87 4.39 1.07 2.63 3.51 1.70 中矿5 0.89 1.81 3.88 1.07 1.27 1.54 0.84 尾矿 80.55 0.50 0.31 0.36 31.47 11.23 25.64 原矿 100.00 1.27 2.24 1.13 100.00 100.00 100.00
下载: 导出CSV

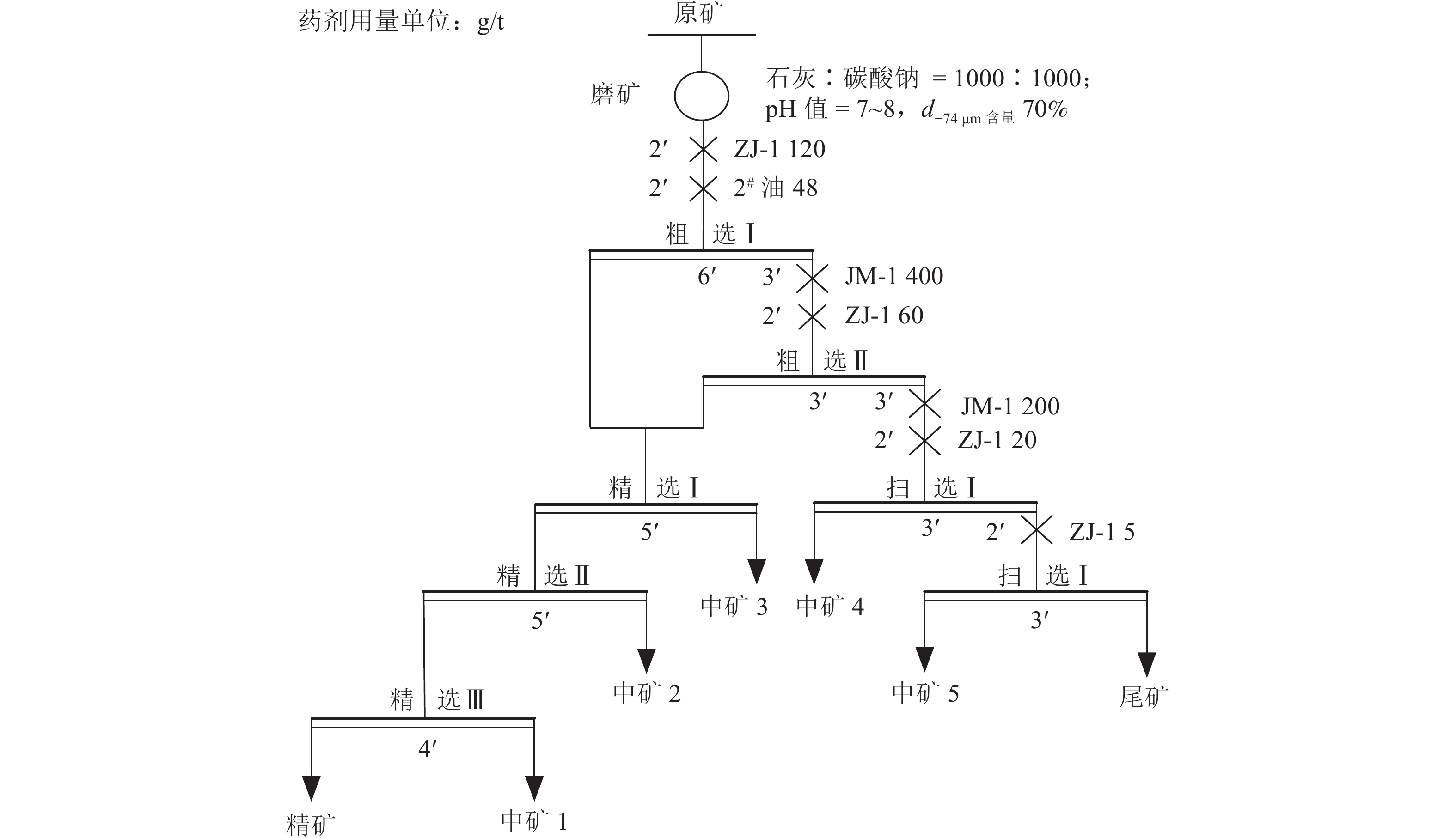

表 9 闭路浮选实验结果
Table 9. Closed circuit flotation test results
产品名称 产率/% 品位/% 回收率/% Cu Pb Zn Au* Ag* Cu Pb Zn Au Ag 精矿 6.43 11.60 28.61 12.56 1.65 350.08 58.74 80.71 70.82 40.75 39.64 尾矿 93.57 0.56 0.47 0.36 0.16 36.61 41.26 19.29 29.18 59.25 60.36 原矿 100.00 1.27 2.28 1.14 0.26 56.76 100.00 100.00 100.00 100.00 100.00 *单位为g/t
下载: 导出CSV
-
[1] 王艳, 高歌, 陈健龙, 等. 西藏甲玛矽卡岩型铜铅锌多金属矿石工艺矿物学研究[J]. 黄金, 2018, 39(5):50-54.WANG Y, GAO G, CHEN J L, et al. Process mineralogical study on a skarn-type copper, lead and zinc polymetallic ore from Tibet[J]. Gold, 2018, 39(5):50-54.
WANG Y, GAO G, CHEN J L, et al. Process mineralogical study on a skarn-type copper, lead and zinc polymetallic ore from Tibet[J]. Gold, 2018, 39(5):50-54.
[2] 吕超, 李尔东, 乔元栋, 等. 西藏某高结合率氧化铜矿选冶联合回收实验研究[J]. 矿产综合利用, 2021(5):177-181.LYU C, LI E D, QIAO Y D, et al. Experimental study on recovery of copper from a high combination ration oxidized copper mine by using flowsheet of dressing-metallurgy in Tibet[J]. Multipurpose Utilization of Mineral Resources, 2021(5):177-181.
LYU C, LI E D, QIAO Y D, et al. Experimental study on recovery of copper from a high combination ration oxidized copper mine by using flowsheet of dressing-metallurgy in Tibet[J]. Multipurpose Utilization of Mineral Resources, 2021(5):177-181.
[3] 张生武, 刘明实. 西藏某铜铅锌多金属硫化矿石选矿试验[J]. 金属矿山, 2011(2):72-75+84.ZHANG S W, LIU M S. Research on beneficiation experiment of Cu-Pb-Zn multi-metal sulfide ore in Tibet[J]. Metal Mine, 2011(2):72-75+84.
ZHANG S W, LIU M S. Research on beneficiation experiment of Cu-Pb-Zn multi-metal sulfide ore in Tibet[J]. Metal Mine, 2011(2):72-75+84.
[4] 解钊, 刘明实, 王李鹏, 等. 甲玛复杂铜多金属矿石合理配矿的实验研究与生产实践[J]. 矿产综合利用, 2022 (2): 61-65.JIE Z , LIU M S, WANG L P, et al. Experimental research and production practice of reasonable ore blending of Jiama complex copper-polymetallic ore[J]. Multipurpose Utilization of Mineral Resources, 2022 (2): 61-65.
JIE Z , LIU M S, WANG L P, et al. Experimental research and production practice of reasonable ore blending of Jiama complex copper-polymetallic ore[J]. Multipurpose Utilization of Mineral Resources, 2022 (2): 61-65.
[5] 周涛, 黄国贤, 李飞, 等. 西藏某细粒嵌布难选硫化铜矿选矿实验研究[J]. 矿产综合利用, 2022 (2): 45-50.ZHOU T , HUANG G X, LI F, et al. Experimental research on mineral processing for a refractory fine disseminated copper sulfide ore in Tibet[J]. Multipurpose Utilization of Mineral Resources, 2022 (2): 45-50.
ZHOU T , HUANG G X, LI F, et al. Experimental research on mineral processing for a refractory fine disseminated copper sulfide ore in Tibet[J]. Multipurpose Utilization of Mineral Resources, 2022 (2): 45-50.
[6] 张生武, 刘明实. 西藏甲玛铜多金属矿床铜山铜矿石可选性试验研究[J]. 四川有色金属, 2011(2):31-34.ZHANG S W, LIU M S. Tibet copper polymetallic deposits in Jia Ma copper ore optional test Tongshan[J]. Sichuan Nonferrous Metals, 2011(2):31-34.
ZHANG S W, LIU M S. Tibet copper polymetallic deposits in Jia Ma copper ore optional test Tongshan[J]. Sichuan Nonferrous Metals, 2011(2):31-34.
[7] 张文彬, 徐晓军, 冷崇燕. 铵盐作调整剂在矿石浮选中的应用研究现状[J]. 矿物岩石地球化学通报, 1997(S1):54-55.ZHANG W B, XU X J, LENG C Y. Research status of application of ammonium salt as regulator in ore flotation[J]. Bulletin of Mineralogy, Petrology and Geochemistry, 1997(S1):54-55.
ZHANG W B, XU X J, LENG C Y. Research status of application of ammonium salt as regulator in ore flotation[J]. Bulletin of Mineralogy, Petrology and Geochemistry, 1997(S1):54-55.
[8] 钟宏, 刘广义, 王晖. 新型捕收剂T-2K在铜矿山中的应用[J]. 有色金属(选矿部分), 2005(1):41-44.ZHONG H, LIU G Y, WANG H. The applications of new collcetor T-2K in copper mines[J]. Nonferrous Metals (Mineral Processing Section), 2005(1):41-44.
ZHONG H, LIU G Y, WANG H. The applications of new collcetor T-2K in copper mines[J]. Nonferrous Metals (Mineral Processing Section), 2005(1):41-44.
[9] 谭欣, 宋磊. 西藏某氧化铜矿石选矿试验研究[J]. 有色金属(选矿部分), 2006(5):1-5.TAN X, SONG L. Experimental research on mineral processing of oxide copper ore in Tibet[J]. Nonferrous Metals(Mineral Processing Section), 2006(5):1-5.
TAN X, SONG L. Experimental research on mineral processing of oxide copper ore in Tibet[J]. Nonferrous Metals(Mineral Processing Section), 2006(5):1-5.
-
