Comprehensive Utilization Technology of Laterite Nickel Ore Residue
-
摘要:

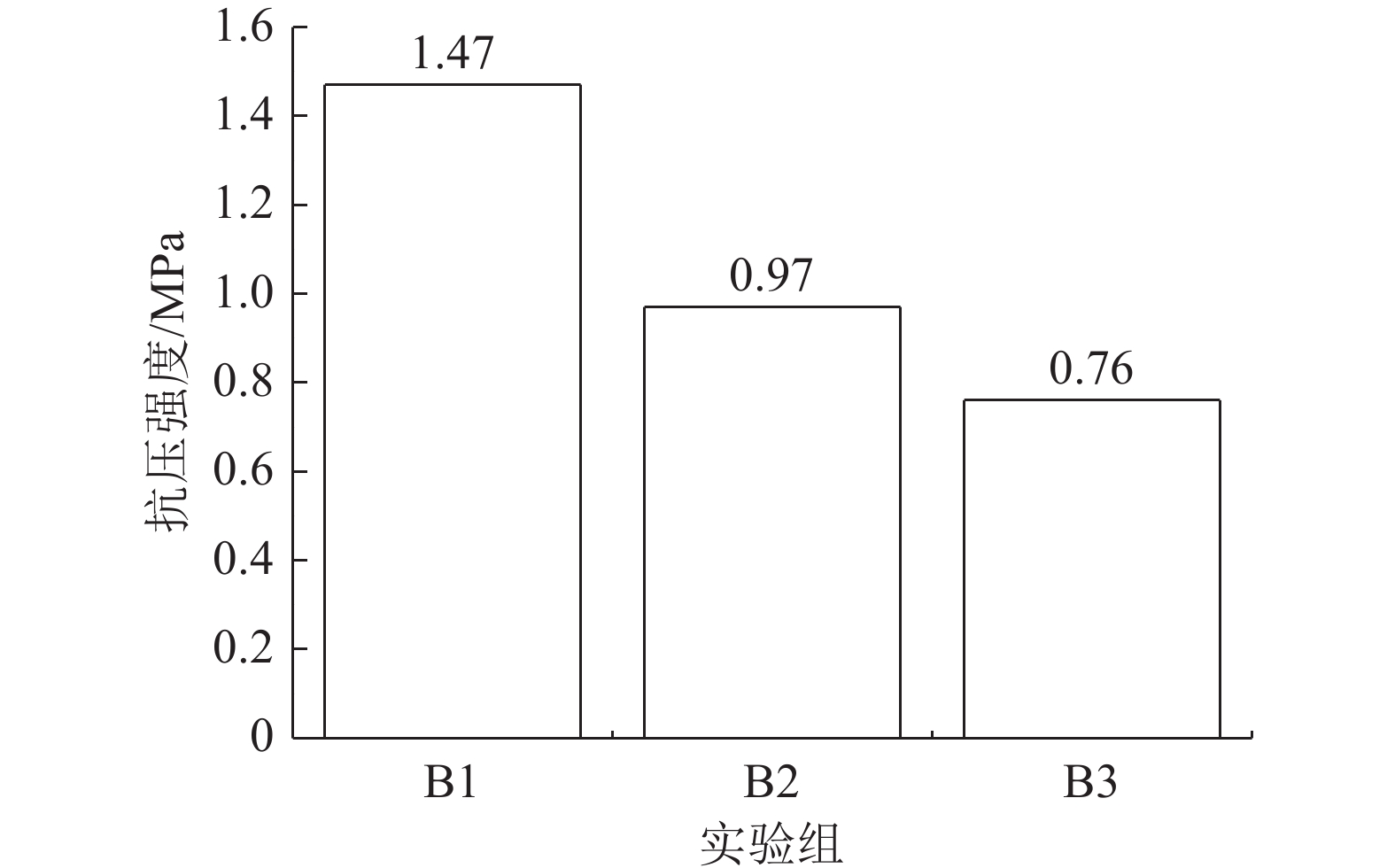

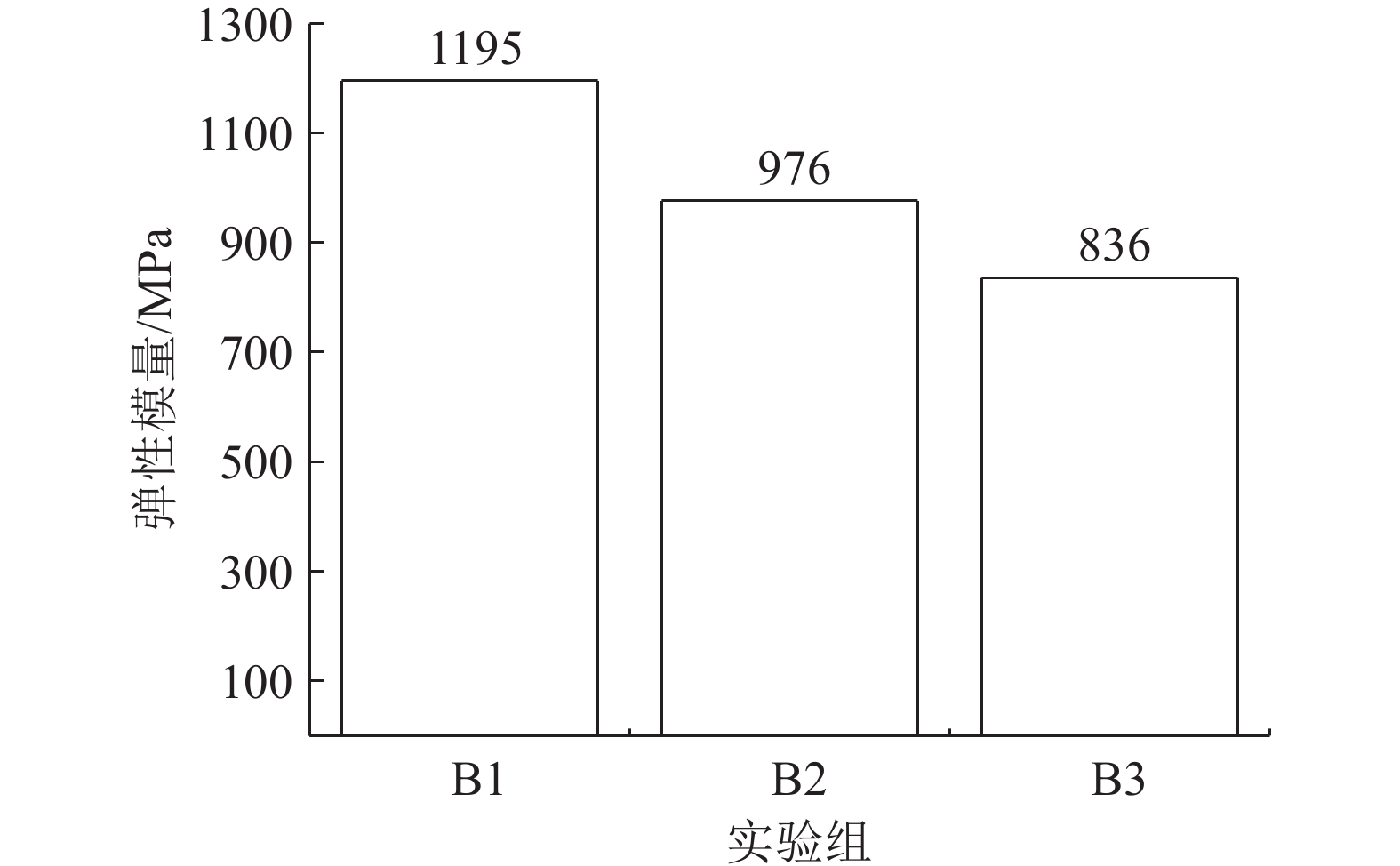

这是一篇陶瓷及复合材料领域的论文。为有效处理并资源化利用湿法冶炼产生的红土镍矿废渣，本研究利用广西某公司红土镍矿废渣为原料，通过测定水泥固化形成的胶结材料浸出液pH值和金属浸出浓度、无侧限抗压强度、干收缩率、弹性模量、渗透系数等指标，分析其作为建设用地回填材料或公路建设工程材料的可行性。结果表明：利用废渣（干基）92%、PO 42.5水泥5%、膨润土3%、外加PAC0.5%的比例加入适量水制成的废渣胶结材料，其浸出液的pH值为8.45左右，浸出金属离子浓度均低于0.1 mg/L，无侧限抗压强度1.47 MPa，弹性模量为1196 MPa，渗透系数为8.77×10-7 cm/s，抗干缩性能良好，可作为建设用地回填材料或公路建设工程材料；而利用原土（干基）92%、PO 42.5水泥5%、膨润土3%、外加CHF0.02%、水适量（约5%～8%）制成的原土胶结材料其抗干缩性能更好，可用作大体积胶结材料的表层，抵御长期接触干燥空气产生的干收缩裂缝，保护下层的废渣胶结材料，保证胶结材料整体稳定性。以上研究为红土镍矿废渣综合利用提供了一条新的途径，为废渣作回填材料或公路建材研究和工程实践奠定理论基础。
Abstract:This is an article in the field of ceramics and composites. In order to effectively treat and resource utilize lateritic nickel slag, this study used lateritic nickel slags as raw materials and measured the pH value of leaching solution, metal leaching concentration, material unconfined compressive strength, dry shrinkage, elastic modulus, permeability coefficient and other indexes of the cementing material formed by cement solidification, and analyzed the feasibility of using it as backfill material for construction land or highway construction engineering materials. The results show that the cementitious material is made of waste slag (dry basis) 92%, PO42.5 cement 5%, bentonite 3%, PAC 0.5% and water, the pH value of leaching solution is about 8.45, the concentration of leaching metal ions is less than 0.1 mg/L, the unconfined compressive strength is 1.47 MPa, the modulus of elasticity is 1196 MPa, the permeability coefficient is 8.77×10-7 cm/s, and the dry shrinkage resistance is good. It can be used as backfill material for construction land or highway construction engineering. The raw soil cementitious material made of 92% raw soil (dry basis), 5% PO42.5 cement, 3% bentonite, 0.02% additional CHF and 5%～8% water has better dry shrinkage resistance. It can be used as the surface layer of large volume cementitious material to resist dry shrinkage cracks caused by long-term contact with dry air, protect the waste slag cementitious material in the lower layer and ensure the overall stability of cementitious materials. The above research provides a new way for the comprehensive utilization of laterite nickel slags, and lays a theoretical foundation for the research and engineering practice of waste slag as backfill materials or highway building materials.
-
Key words:
- Ceramics and composites /
- Laterite nickel ore /
- Waste residue /
- Cement /
- Composite cementing material
-
-
表 1 废渣主要成分/%
Table 1. Main components of waste residues
烧失量 SiO2 Al2O3 Fe203 CaO MgO K2O Na2O SO3 18.86 39.1 2.52 22 2.52 3.6 0.06 0.68 10.09
下载: 导出CSV
-
[1] 张振芳, 陈秀法, 李仰春, 等. “双碳”目标下镍资源的综合利用发展趋势[J]. 矿产综合利用, 2022(2):31-39.ZHANG Z F, CHEN X F, LI Y C, et al. Multipurpose utilization trend of nickel mineral resources under the goal of carbon peaking and carbon neutrality[J]. Multipurpose Utilization of Mineral Resources, 2022(2):31-39. doi: 10.3969/j.issn.1000-6532.2022.02.006
ZHANG Z F, CHEN X F, LI Y C, et al. Multipurpose utilization trend of nickel mineral resources under the goal of carbon peaking and carbon neutrality[J]. Multipurpose Utilization of Mineral Resources, 2022(2):31-39. doi: 10.3969/j.issn.1000-6532.2022.02.006
[2] 武兵强, 齐渊洪, 周和敏, 等. 红土镍矿火法冶炼工艺现状及进展[J]. 矿产综合利用, 2020(3):78-83.WU B Q, QI Y H, ZHOU H M, et al. Status and progress in pyrometallurgy processes of a laterite nickel ore[J]. Multipurpose Utilization of Mineral Resources, 2020(3):78-83. doi: 10.3969/j.issn.1000-6532.2020.03.012
WU B Q, QI Y H, ZHOU H M, et al. Status and progress in pyrometallurgy processes of a laterite nickel ore[J]. Multipurpose Utilization of Mineral Resources, 2020(3):78-83. doi: 10.3969/j.issn.1000-6532.2020.03.012
[3] 李洋洋, 李金辉, 张云芳, 等. 红土镍矿的开发利用及相关研究现状[J]. 材料导报, 2015, 29(17):79-83.LI Y Y, LI J H, ZHANG Y F, et al. Development and utilization of nickel laterite ore and current status of related research[J]. Materials Herald, 2015, 29(17):79-83.
LI Y Y, LI J H, ZHANG Y F, et al. Development and utilization of nickel laterite ore and current status of related research[J]. Materials Herald, 2015, 29(17):79-83.
[4] 杨泽宇, 张文, 申亚芳, 等. 红土镍矿处理方法现状[J]. 中国有色冶金, 2020, 49(4):1-6.YANG Z Y, ZHANG W, SHEN Y F, et al. Current status of treatment methods for nickel laterite ores[J]. China Nonferrous Metallurgy, 2020, 49(4):1-6.
YANG Z Y, ZHANG W, SHEN Y F, et al. Current status of treatment methods for nickel laterite ores[J]. China Nonferrous Metallurgy, 2020, 49(4):1-6.
[5] 李洁, 徐玉君, 沈洪涛, 等. 红土镍矿焙烧熟料溶出过程中镍的行为研究[J]. 矿产综合利用, 2019(5):37-41.LI J, XU Y J, SHEN H T, et al. Reaction behaviour of Ni during leaching from roasting materials of laterite nickel ore and ammonium sulfate[J]. Multipurpose Utilization of Mineral Resources, 2019(5):37-41. doi: 10.3969/j.issn.1000-6532.2019.05.008
LI J, XU Y J, SHEN H T, et al. Reaction behaviour of Ni during leaching from roasting materials of laterite nickel ore and ammonium sulfate[J]. Multipurpose Utilization of Mineral Resources, 2019(5):37-41. doi: 10.3969/j.issn.1000-6532.2019.05.008
[6] Saeed F, Lev F, Daniel F. Pre-concentration of nickel in laterite ores using physical separation methods[J]. Minerals Engineering, 2019, 141.
[7] 施引珍, 钱忠伟, 周婷婷. 镍铁冶炼废渣在混凝土中的应用研究[J]. 江西建材, 2015(12):14-19.SHI Y Z, QIAN Z W, ZHOU T T. Research on the application of ferronickel smelting slag in concrete[J]. Jiangxi Building Materials, 2015(12):14-19.
SHI Y Z, QIAN Z W, ZHOU T T. Research on the application of ferronickel smelting slag in concrete[J]. Jiangxi Building Materials, 2015(12):14-19.
[8] 殷素红, 马健, 颜波, 等. 三种不同镍渣混合生产复合掺合料的研究[J]. 矿产综合利用, 2021(4):131-138.YIN S H, MA J, YAN B, et al. Study on the performance of compound admixture produced by Mixed grinding three different nickel slag[J]. Multipurpose Utilization of Mineral Resources, 2021(4):131-138. doi: 10.3969/j.issn.1000-6532.2021.04.020
YIN S H, MA J, YAN B, et al. Study on the performance of compound admixture produced by Mixed grinding three different nickel slag[J]. Multipurpose Utilization of Mineral Resources, 2021(4):131-138. doi: 10.3969/j.issn.1000-6532.2021.04.020
[9] 吕文强, 郑水林, 孙志明, 等. 红土镍矿酸浸渣硫酸铵焙烧-超声分散-离心分离提纯增白效果与机理[J]. 矿业科学学报, 2019, 4(6):564-572.LYU W Q, ZHENG S L, SUN Z M, et al. Effect and mechanism of whitening by ammonium sulfate roasting-ultrasonic dispersion-centrifugal separation purification of nickel laterite ore acid leaching slag[J]. Journal of Mining Science, 2019, 4(6):564-572.
LYU W Q, ZHENG S L, SUN Z M, et al. Effect and mechanism of whitening by ammonium sulfate roasting-ultrasonic dispersion-centrifugal separation purification of nickel laterite ore acid leaching slag[J]. Journal of Mining Science, 2019, 4(6):564-572.
[10] Cao Z, Ma B, Jing Q, et al. Facile and inexpensive preparation method of iron phosphate from laterite residue[J]. Ceramics International, 2020(prepublish).
[11] 孙英娟, 周旋, 岳丽娜, 等. 工业固废制备聚合氯化铝铁及其在煤泥废水处理中的应用[J]. 矿产综合利用, 2021(1):144-150.SUN Y J, ZHOU X, YUE L N, et al. Preparation of polyaluminium ferric chloride from industrial solid waste and its application in coal slurry wastewater treat ment[J]. Multipurpose Utilization of Mineral Resources, 2021(1):144-150. doi: 10.3969/j.issn.1000-6532.2021.01.025
SUN Y J, ZHOU X, YUE L N, et al. Preparation of polyaluminium ferric chloride from industrial solid waste and its application in coal slurry wastewater treat ment[J]. Multipurpose Utilization of Mineral Resources, 2021(1):144-150. doi: 10.3969/j.issn.1000-6532.2021.01.025
[12] 郭小艳. CHF土壤固化剂在公路工程中的应用[J]. 中国公路, 2015(21):132-133.GUO X Y. Application of CHF soil curing agent in highway engineering[J]. China Highway, 2015(21):132-133. doi: 10.3969/j.issn.1006-3897.2015.21.032
GUO X Y. Application of CHF soil curing agent in highway engineering[J]. China Highway, 2015(21):132-133. doi: 10.3969/j.issn.1006-3897.2015.21.032
-
