摘要:
国外某镍钴矿含镍1.10%、含钴0.11%，镍钴主要以离子吸附的形式存在于隐晶质粘土矿物，矿石含有3.96%的Cr2O3，铬基本以铬铁矿的形式存在，具有综合回收的价值。针对矿石中镍钴含量较高，且以吸附形式存在于粘土矿物，粘土矿物在磨矿过程中极易泥化，导致镍钴富集至微细粒级，而铬基本以铬铁矿形式存在，磨矿过程中形成粗细不均的铬铁矿颗粒，结合铬铁矿比重较大的特点，提出矿石磨矿后分级归类-重选回收粗粒铬铁矿-浮选回收细粒铬铁矿的技术思路。采用“旋流器分级-螺旋溜槽粗选-摇床精选-摇床尾矿浮选”工艺流程，选择高效铬铁矿捕收剂GC强化细粒铬铁矿回收，全流程研究结果表明，可以获得Cr2O3品位46.30%，Cr2O3回收率71.95%的铬铁精矿，同时获得Cr2O3含量仅1.16%的镍钴矿浆，为后续冶金回收镍钴创造了有利条件。
Abstract:A foreign nickel-cobalt ore contains 1.10% nickel and 0.11% cobalt, which mainly exists in cryptocrystalline clay minerals in the form of ion adsorption. The ore contains 3.96% Cr2O3, and chromium basically exists in the form of chromite, which has the value of comprehensive recovery. In view of the high content of nickel and cobalt in the ore, and in clay minerals in the form of adsorption, clay minerals are easily sloughed during the grinding process, resulting in nickel and cobalt are enriched to the fine particle level and chromium basically exists in the form of chromite. During the grinding process, chromite particles of varying sizes are produced. Combined with the characteristics of relatively large gravity, the technical idea of grading and classifying after ore grinding, recovery of coarse-grained chromite by gravity separation, and recovery of fine-grained chromite by flotation is proposed adopting the process of "cyclone classification - spiral chute roughing - shaking table cleaning - shaking table tailings flotation" and selecting high-efficiency chromite collector GC to enhance the recovery of fine-grained chromite. The results of the whole process study show that chromite concentrate with Cr2O3 grade of 46.30% and Cr2O3 recovery rate of 71.95% can be obtained. At the same time, the nickel-cobalt slurry with Cr2O3 content of only 1.16% was obtained, creating favorable conditions for subsequent metallurgical recovery of nickel-cobalt.
-
Key words:
- Mineral Processing Engineering /
- Nickel /
- Cobalt /
- Chromium /
- Comprehensive recovery
-
-
表 1 试样化学多元素分析结果/%
Table 1. Multi-element analysis results of the samples
Ni Co Cr2O3 Fe S SiO2 MgO Al2O3 Mn 1.10 0.11 3.96 39.59 0.11 23.97 6.39 8.79 1.24
下载: 导出CSV
表 2 试样矿物定量分析结果/%
Table 2. Results of the mineral quantitative test
铬铁矿 磁铁矿 土状褐铁矿 叶蛇纹石 石英 隐晶质粘土矿物 碳酸盐矿物 长石 云母 合计 7.17 2.02 20.23 5.76 20.36 29.86 11.36 2.13 1.11 100.00
下载: 导出CSV

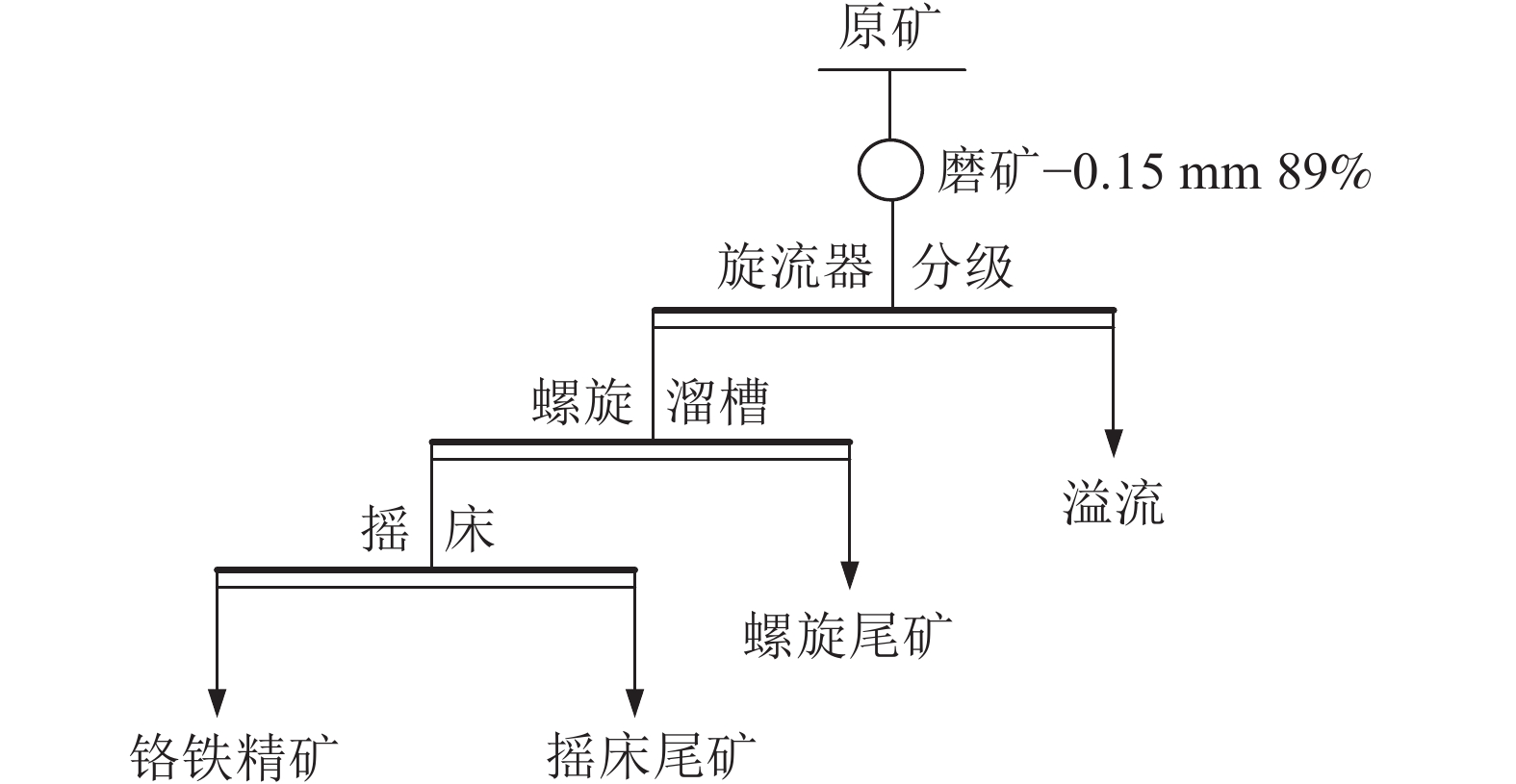

表 3 旋流器分级-螺旋溜槽粗选-摇床精选研究实验结果
Table 3. Results of the cyclone classification-spiral chute roughing-shaker cleaning test
产品名称 产率/% 品位/% 回收率/% Cr2O3 Ni Co Cr2O3 Ni Co 铬铁精矿 4.19 48.23 0.22 0.02 51.06 0.84 0.79 摇床尾矿 7.94 12.41 0.36 0.05 24.89 2.60 3.37 螺旋尾矿 12.48 2.07 0.83 0.09 6.53 9.43 10.59 溢流 75.39 0.92 1.27 0.12 17.52 87.13 85.25 原矿 100.00 3.96 1.10 0.11 100.00 100.00 100.00
下载: 导出CSV

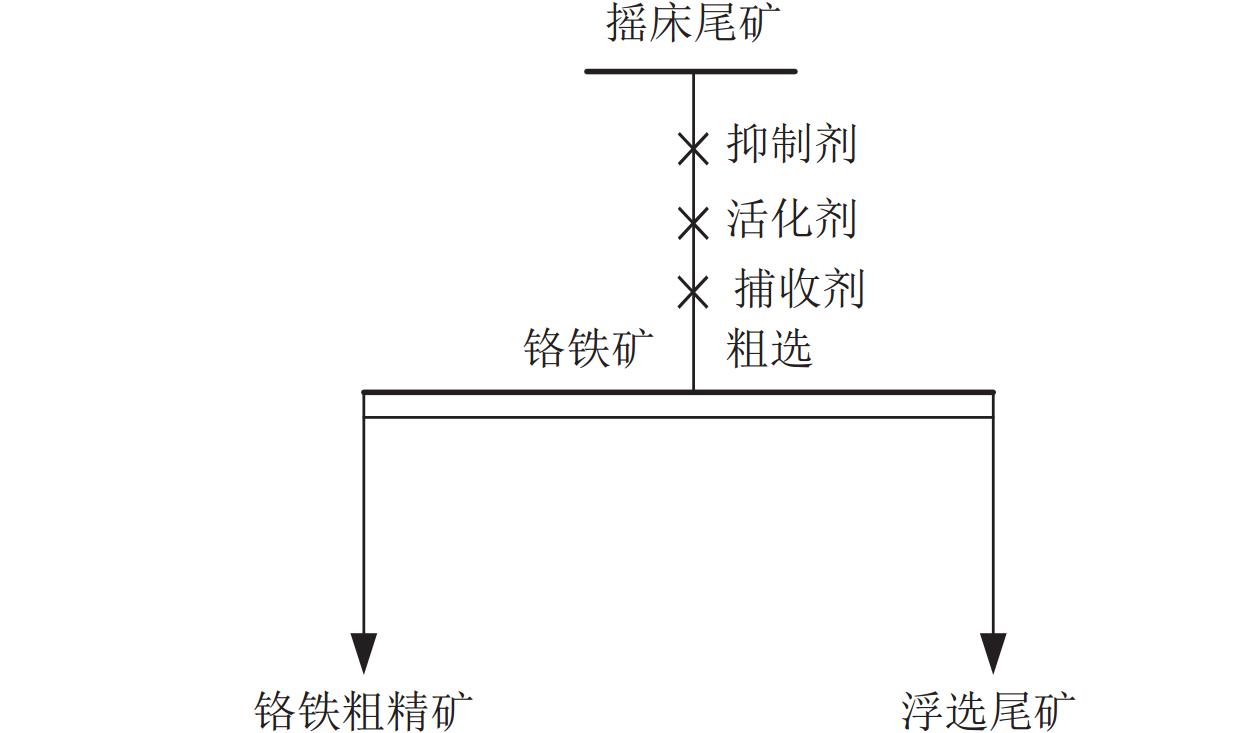

表 4 抑制剂实验铬铁粗精矿指标
Table 4. Results of inhibitor test of chromite rough concentrate
抑制剂
名称用量/
(g/t)产品
名称作业
产率/%Cr2O3
品位/%Cr2O3作业
回收率/%酸化水玻璃 150 铬铁粗精矿 33.19 29.16 77.56 250 铬铁粗精矿 30.28 30.91 74.98 350 铬铁粗精矿 28.16 31.25 70.81 450 铬铁粗精矿 24.86 32.83 65.66 水玻璃 150 铬铁粗精矿 36.18 26.85 78.05 250 铬铁粗精矿 33.38 28.18 75.35 350 铬铁粗精矿 30.72 29.06 71.68 450 铬铁粗精矿 27.67 29.64 66.04 硫酸 150 铬铁粗精矿 32.18 30.16 78.07 250 铬铁粗精矿 30.22 31.73 76.98 350 铬铁粗精矿 28.93 32.68 75.74 450 铬铁粗精矿 27.38 33.12 72.78 GAS
（无机弱酸）150 铬铁粗精矿 31.92 32.99 84.86 250 铬铁粗精矿 30.58 34.16 84.31 350 铬铁粗精矿 29.03 35.61 83.25 450 铬铁粗精矿 27.12 36.03 78.74
下载: 导出CSV
表 5 活化剂实验铬铁粗精矿指标
Table 5. Result of activator test of chromite rough concentrate
抑制剂
名称用量/
(g/t)产品
名称作业
产率/%Cr2O3
品位/%Cr2O3作业
回收率/%硝酸铅 20 铬铁粗精矿 26.93 36.02 78.30 30 铬铁粗精矿 27.94 35.59 80.09 40 铬铁粗精矿 28.41 35.33 81.28 50 铬铁粗精矿 29.01 35.16 82.30 硫酸铜 20 铬铁粗精矿 27.63 35.92 79.53 30 铬铁粗精矿 28.27 35.69 81.42 40 铬铁粗精矿 29.03 35.61 83.25 50 铬铁粗精矿 30.19 34.16 83.78 氯化铁 20 铬铁粗精矿 27.53 35.16 77.92 30 铬铁粗精矿 27.95 35.16 79.16 40 铬铁粗精矿 28.12 34.92 78.78 50 铬铁粗精矿 28.92 34.26 79.89
下载: 导出CSV
表 6 捕收剂实验铬铁粗精矿指标
Table 6. Results of collector test of chromite rough concentrate
抑制剂名称 用量/(g/t) 产品名称 作业
产率/%Cr2O3
品位/%Cr2O3作业
回收率/%油酸 30 铬铁粗精矿 17.16 37.16 51.36 40 铬铁粗精矿 21.13 36.86 62.68 50 铬铁粗精矿 23.69 36.07 68.88 60 铬铁粗精矿 25.16 35.42 71.40 GC 30 铬铁粗精矿 23.16 36.98 68.65 40 铬铁粗精矿 26.83 36.47 78.84 50 铬铁粗精矿 29.03 35.61 83.25 60 铬铁粗精矿 31.16 33.52 84.33 氧化石蜡皂 30 铬铁粗精矿 25.13 32.63 65.81 40 铬铁粗精矿 29.25 30.67 72.00 50 铬铁粗精矿 31.28 30.24 76.28 60 铬铁粗精矿 33.69 29.38 79.58
下载: 导出CSV
表 7 全流程实验结果
Table 7. Results of the whole process test
产品名称 产率/% 品位/% 回收率/% Cr2O3 Ni Co Cr2O3 Ni Co 铬铁精矿 6.15 46.30 0.24 0.02 71.95 1.32 1.34 镍钴矿浆 93.85 1.18 1.16 0.11 28.05 98.68 98.66 原矿 100.00 3.96 1.10 0.11 100.00 100.00 100.00
下载: 导出CSV
-
