A Method for Combining a Stable Isotope Mass Spectrometer with an Isotopic Spectroscope to Analyze the 17O/16O
-

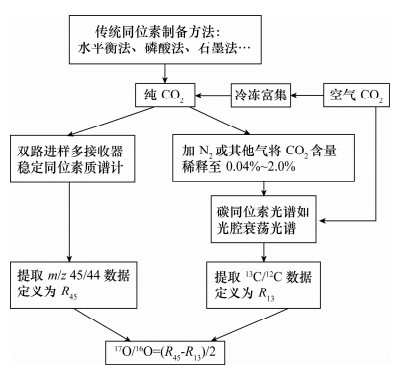

摘要: 传统的氧同位素分析方法一般将各种形式的氧转化为CO2，再通过稳定同位素质谱测定其氧同位素组成，由于二氧化碳中的17O和13C在质谱中有相同的质荷比m/z，这种方法不能测得17O同位素的丰度，三氧同位素(16O、17O、18O)丰度分析的关键是17O同位素丰度的分析。为了测量17O同位素丰度，一般需要先将各种形式的氧转化为O2，然后利用稳定同位素质谱进行分析，转化过程复杂或者有危险。本文提出了一种新思路，应用稳定同位素质谱与碳同位素光谱相结合的方法分析17O/16O。先采用传统方法将各种形式的氧转化为CO2，再由多接收器稳定同位素质谱计测得CO2的质谱峰高比45/44(记为R45)，同位素光谱如光腔衰荡光谱测得13C/12C(定义为R13)，计算其同位素比值17O/16O=(R45-R13)/2，方法的分析精度好于±0.08‰(1σ)。该方法是在传统方法的基础上，增加一个CO2碳同位素光谱分析步骤，通过简单的数据处理就可以获得17O同位素组成，而无需将各种形式的氧转化为O2，18O同位素样品制备方法成熟，无危险性，且分析精度优于或相当于其他测试方法。Abstract: Since the discovery of mass-independent isotope effects, the study of triple oxygen isotope abundance has become a focus and frontier. In traditional oxygen isotopic ratio analysis methods, multiform oxygen is converted to CO2 and the oxygen isotopic ratios of CO2 are measured by Stable Isotope Mass Spectrometer. However, this method cannot be used to measure 17O isotopic abundance because 17O and 13C in carbon dioxide have the same m/z. The key for the triple oxygen isotope abundance analysis is to analyze the 17O isotopic abundance. To measure the 17O isotopic abundance multiform oxygen to O2 is usually converted and then analyzed by Stable Isotope Mass Spectrometer, although the conversion process is complicated and/or dangerous. In this paper a new way to measure 17O/16O by Stable Isotope Mass Spectrometer and Isotopic Spectroscope is presented. The traditional method to convert multiform oxygen to CO2 is adopted. The CO2 was then analyzed by Stable Isotope Mass Spectrometer to obtain m/z45/44 (defined as R45), and by isotopic spectroscope such as cavity ring down spectroscope (CRDS) to obtain 13C/12C (defined as R13). The 17O/16O was calculated by 17O/16O=(R45-R13)/2. This method has an analytical precision which is better than ±0.08‰ (1σ). The new method is based on the traditional method with the addition of an analysis step of the carbon isotopic spectroscope for CO2. With simple data processing, the 17O isotope composition was obtained without conversion of the multiform oxygen to O2. Moreover, there is no risk in sample preparation for 18O isotopic analysis, and the precision is better than, or equal to, other methods.
-
-
[1] Qin Y, Li Y H, Liu F, Hou K J, Wan D F, Zhang C. N and O isotopes and the ore-forming mechanism of nitrate deposits in the Turpan-Hami Basin, Xinjiang, China [J].Science China (Earth Sciences),2012,42(2): 45-52.
[2] 李波,陈江峰,郑永飞,赵子福,钱卉.安徽月山石英闪长岩氧同位素分馏、Rb-Sr等时线定年与矿物蚀变之间的关系[J].岩石学报,2004,20(5): 199-206. http://www.cnki.com.cn/Article/CJFDTOTAL-YSXB200405013.htm
[3] 王峥嵘,郑永飞.矿物氧同位素模式温度计算[J].岩石学报,2000,16(1): 68-83. http://www.cnki.com.cn/Article/CJFDTOTAL-YSXB200001007.htm
[4] 郭春影,张文钊,葛良胜,高帮飞,夏锐.氢氧同位素体系成矿流体示踪若干问题[J].矿物岩石,2011,31(3): 43-49. http://www.cnki.com.cn/Article/CJFDTOTAL-KWYS201103007.htm
[5] 于际民,蒋少涌,潘家永,倪培,凌洪飞.滇西云龙锡矿成矿流体演化的氢、氧同位素证据[J].地质论评,2002,48(Z1): 257-262. http://www.cnki.com.cn/Article/CJFDTOTAL-DZLP2002S1044.htm
[6] 丁悌平,刘玉山,万德芳,刘志坚,李金城,张桂兰.石英-钨铁矿氧同位素地质温度计及其地质应用研究[J].地质学报,1992,66(1): 50-60. http://www.cnki.com.cn/Article/CJFDTOTAL-DZXE199201003.htm
[7] SY/T 5238—2008,有机物和碳酸盐岩碳、氧同位素分析方法[S].
[8] 郑淑蕙,郑斯成,莫志超.稳定同位素地球化学分析[M].北京:北京大学出版社,1986: 163-291.
[9] 曹亚澄,周克瑜,孙国庆.蜂蜜和蜂蜜蛋白中碳同位素的质谱分析法[J].食品科学,1993, 16(3): 70-73. http://www.cnki.com.cn/Article/CJFDTOTAL-SPKX199303022.htm
[10] 张柳明,徐永昌.中国西北地区大气CO2浓度及其碳、氧同位素组成特征[J].科学通报, 1992,37(5): 441-444.
[11] Kaiser J. Reformulated 17O correction of mass spectro-metric stable isotope measurements in carbon dioxide and a critical appraisal of historic ‘absolute’ carbon and oxygen isotope ratios [J]. Geochimica et Cosmochimica Acta, 2009, 72: 1312-1334.
[12] Eiler J M, Schauble E. 18O13C16O in Earth′ atmosphere [J].Geochimica et Cosmochimica Acta, 2004, 68(23): 4767-4777. doi: 10.1016/j.gca.2004.05.035
[13] Craig H. Isotopic standards for carbon and oxygen and correction factors for mass-spectrometric analysis of carbon dioxide [J].Geochimica et Cosmochimica Acta, 1957, 12: 133-149. doi: 10.1016/0016-7037(57)90024-8
[14] LI Y H, Qin Y, Liu F, Hou K J, Wan D F. Discovery of mass independent oxygen isotopic compositions in superscale nitrate mineral deposits from Turpan-Hami basin, Xinjiang, China and its significance [J]. Acta Geologica Sinica (English Edition), 2010, 84(6): 1514-1519. doi: 10.1111/acgs.2010.84.issue-6
[15] 曹晓斌,张继习,唐茂,刘耘.氧同位素质量依赖分馏线的精确确定[J].地球化学,2011,40(2): 41-49. http://www.cnki.com.cn/Article/CJFDTOTAL-DQHX201102003.htm
[16] Sergey S A, Carl A M B. On the 17O correction for CO2 mass spectrometric isotopic analysis [J].Rapid Commun-ications in Mass Spectrometry, 2003, 17: 1007-1016. doi: 10.1002/(ISSN)1097-0231
[17] Carl A M B, Thomas R. A rapid method for the prepar-ation of O2 from CO2 for mass spectrometric measurement of 17O/16O ratios [J].Rapid Communications in Mass Spectrometry, 1998, 12(8): 479-483. doi: 10.1002/(ISSN)1097-0231
[18] 万德芳,李延河.硫酸盐的氧同位素测量方法[J].高校地质学报,2006,12(3): 378-383. http://www.cnki.com.cn/Article/CJFDTOTAL-GXDX200603011.htm
[19] 余婷婷,甘义群,刘存富,李小倩,刘运德,蔡鹤生,周爱国,周建伟.微量水δ(17O)和δ(18O) CoF3法线外同时测试新技术[J].地质科技情报,2010,29(1): 121-125.
[20] Barkan E, Luz B. High precision measurements of O17/O16 and O18/O16 of O2 in H2O [J]. Rapid Communications in Mass Spectrometry, 2005, 19: 3737-3742. doi: 10.1002/(ISSN)1097-0231
[21] Bao H, Thiemens M H. Generation of O2 from BaSO4 using a CO2-laser fluorination system for simultaneous analysis of δ18O and δ17O [J].Analytical Chemistry, 2000, 72: 4029-4032. doi: 10.1021/ac000086e
[22] 周爱国,刘存富,蔡鹤生,甘义群,李小倩,余婷婷,刘运德.硫酸盐三氧同位素测试制样新技术——Ag2SO4热解法[J].地球学报,2008,29(6): 673-676.
[23] Li W J, Ni B, Jin D, Chang T L. Measurement of the absolute abundance of oxygen-17 in V-SMOW [J]. Chinese Science Bulletin, 1988, 33(19): 1610-1613.
[24] Barkan E, Luz B. High-precision measurements of 17O/16O and 18O/16O of O2 and O2/Ar ratio in air [J]. Rapid Communications in Mass Spectrometry, 2003, 17(24): 2809-2814. doi: 10.1002/(ISSN)1097-0231
[25] Campargue A, Song K F, Mouton N, Perevalov V I, Kassi S. High sensitivity CW-cavity ring down spectroscopy of five 13CO2 isotopologues of carbon dioxide in the 1.26-1.44 μm region (Ⅰ): Line positions [J]. Journal of Quantitative Spectroscopy & Radioactive Transfer, 2010, 111: 659-674.
[26] Niels C M, Chris M W, Michael I B. Continuous analysis of δ18O and δD values of water by diffusion sampling cavity ring-down spectrometry: A novel sampling device for unattended field monitoring of precipitation, ground and surface waters [J]. Rapid Communications in Mass Spectrometry, 2011, 25(24): 3706-3712. doi: 10.1002/rcm.5282
[27] Krevor S, Perrin J C, Esposito A, Rella C, Benson S. Rapid detection and characterization of surface CO2 leakage through the real-time measurement of δ13C signatures in CO2 flux from the ground [J]. International Journal of Greenhouse Gas Control, 2010, 4: 811-815. doi: 10.1016/j.ijggc.2010.05.002
[28] Long D A, Havey D K, Yu S S, Okumura M, Miller C E, Hodges J T. O2 A-band line parameters to support atmospheric remote sensing. Part Ⅱ: The rare isotopologues [J]. Journal of Quantitative Spectroscopy & Radiative Transfer, 2011, 112: 2527-2541.
[29] 陈道公,Deloule E,程昊,夏群科,吴元保.大别-苏鲁变质岩锆石微区氧同位素特征初探:离子探针原位分析[J].科学通报,2003,48(16): 1732-1739. doi: 10.3321/j.issn:0023-074X.2003.16.004
[30] Kawagucci S, Tsunogai U, Kudo S, Nakagawa F, Honda H, Aoki S, Nakazawa T, Gamo T. An analytical system for determining δ17O in CO2 using continuous flow-isotope ratio MS [J].Analytical Chemistry, 2005, 77(14): 4509-4514. doi: 10.1021/ac050266u
[31] Esler M B, Griffith D W T, Wilson S R, Steele L P. Precision trace gas analysis by FT-IR spectroscopy. 2. The 13C/12C isotope ratio of CO2 [J].Analytical Chemistry, 2000, 72(1): 216-221. doi: 10.1021/ac990563x
-
